1-2. Freezer Temperature Control
Input Control Object Contents Remark
1. Freezer
Temperatur
e Button
2. F-Sensor
1. COMP
2. F-FAN
* ON / OFF
Diff : Fixed
by MI-COM
* STEP Diff ;
Fixed by MI-
COM
* Comp and C-
Fan ; co-
working
1. Temperature mode changes with whenever the FRZ.SET Button is
pushed.
(Weak) --> Weak --> Middle --> Strong --> Quick FRZ.
2. Comp and F-Fan are controlled by ON / OFF point of each mode.
3. Freezer ON / OFF DIFF : 5 °C
(Freezer Middle OFF Point : -19.0°C)
4. Freezer [Strong"Middle"Weak] DIFF : 2 degrees respectively

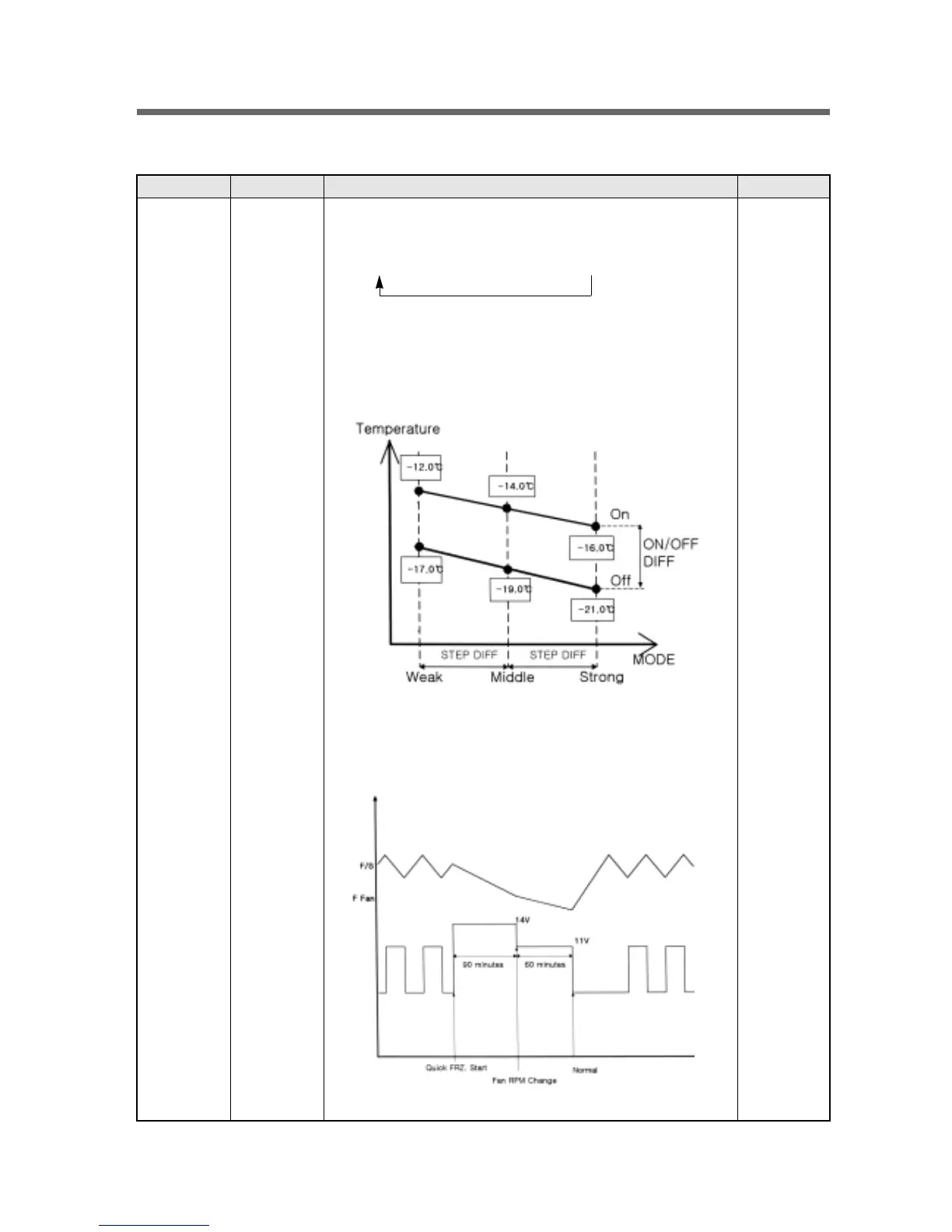

5. Control Point of Each Mode
6. Quick Freezing Mode
1) COMP and F-Fan are ON for about 150minutes regardless of
F-Sensor.
2) Fan works at 14V for the first 90minutes, 11V for the rest 60minutes.
