• Unstable installation causes vibration and

noise of refrigerator.

• Wooden floor or carpet can be discolored

under the refrigerator.

• Doors look hanged down due to the twist

of refrigerator unless it is leveled.

• More than 10 cm from 3 sides (left, right

and back) is good enough for ventilation.

• Insufficient space causes the noise of

vibration, weakening of refrigerating

power and the waste of electricity.

• Direct sun lays, side heat of stove and gas

range can weaken the refrigerating power.

•

Avoid location by a sink or where moisture

and water can cause rust and corrosion.

•

Avoid location where moisture can cause

electrical problems.

• Use hard board or plank on the

concrete/cement floor.

1. Installation Instructions

Where the floor is solid and level Where ventilation is good Where there is little or no heat, moisture

Suitable Installation Place

Grounding is necessary

where

Grounding by using

grounding wire

Grounding by using

short-circuit breaker

Grounding is not necessary

You should not connect the

ground wire to

■ Grounding terminal is the green one connected to the power cord in the back of refrigerator.

Bury copper plate to whitch grounding wire is connected 25 cm deep in the ground.

Short-circuit breaker is a must where the floor is always wet, for example, fish shop,

restaurant kitchen etc.

in case of using side-grounded outlet.

water pipe, gas pipe, telephone line,

lightening-rod.

There can be explosion or fire.

Grounding wire

Side

Grounded

outlet

Grounding

Correct usage of Refrigerator Installation Process

water can splash easily ;

bathroom etc.

there is much moisture ;

basement etc.

any wet and/or watery

places.

Plug in the refrigerator

right after installation.

Set the both

compartments’

temperature to “3” to

perform preparatory run

for 2 or 3 hours.

When the inside is cold

enough, put the foods in.

* See page for

details.

* When the surrounding

temperature is hot in

midsummer, do not

open and shut the doors

too often after

installation.

Attatch the height adjustable legs to their holes in the

left and right bottom of refrigerator.

Adjust the height by turning the legs until they touch the floor.

• Let the right adjustable leg touch the floor firmly, while the

left, smoothly.

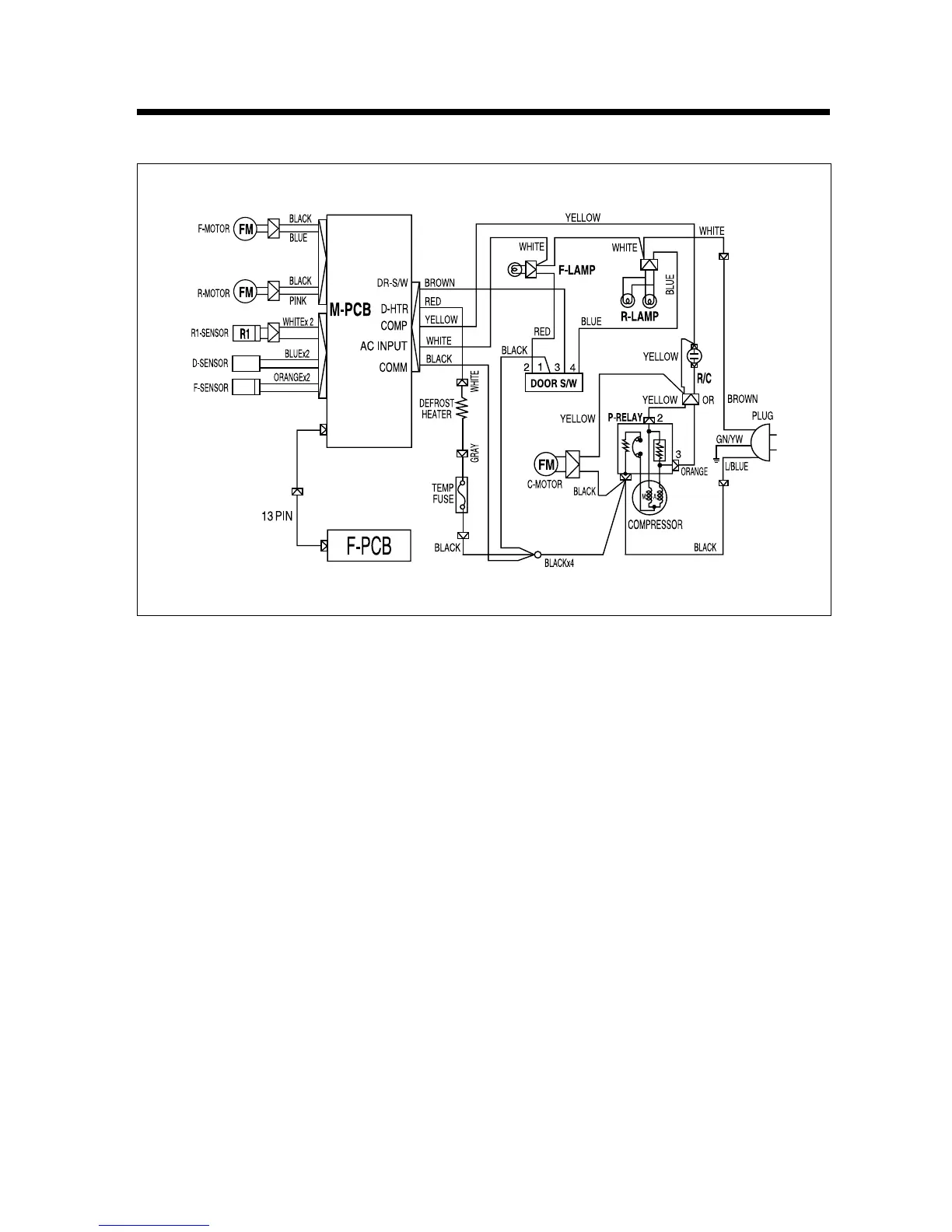

Daewoo FR-710ND - 4 Diagram; Wiring Dirgram
