Control Object How to Control Terms to be ON Terms to be OFF
MICOM PORT IC2 Output PIN MICOM PORT IC02 Output PIN
SILENT #1 5.0V IC#15 8.6V #1 0V IC#15 0V
F-FAN Normal #2 5.0V IC#14 11.1V #2 0V IC#14 0V
Under Load #3 5.0V IC#13 15.1V #3 0V IC#13 0V
SILENT #6 5.0V IC#7 8.6V #6 0V IC#7 0V
R-FAN Normal #7 5.0V IC#8 11.1V #7 0V IC#8 0V
Under Load #8 5.0V IC#10 15.1V #8 0V IC#10 0V

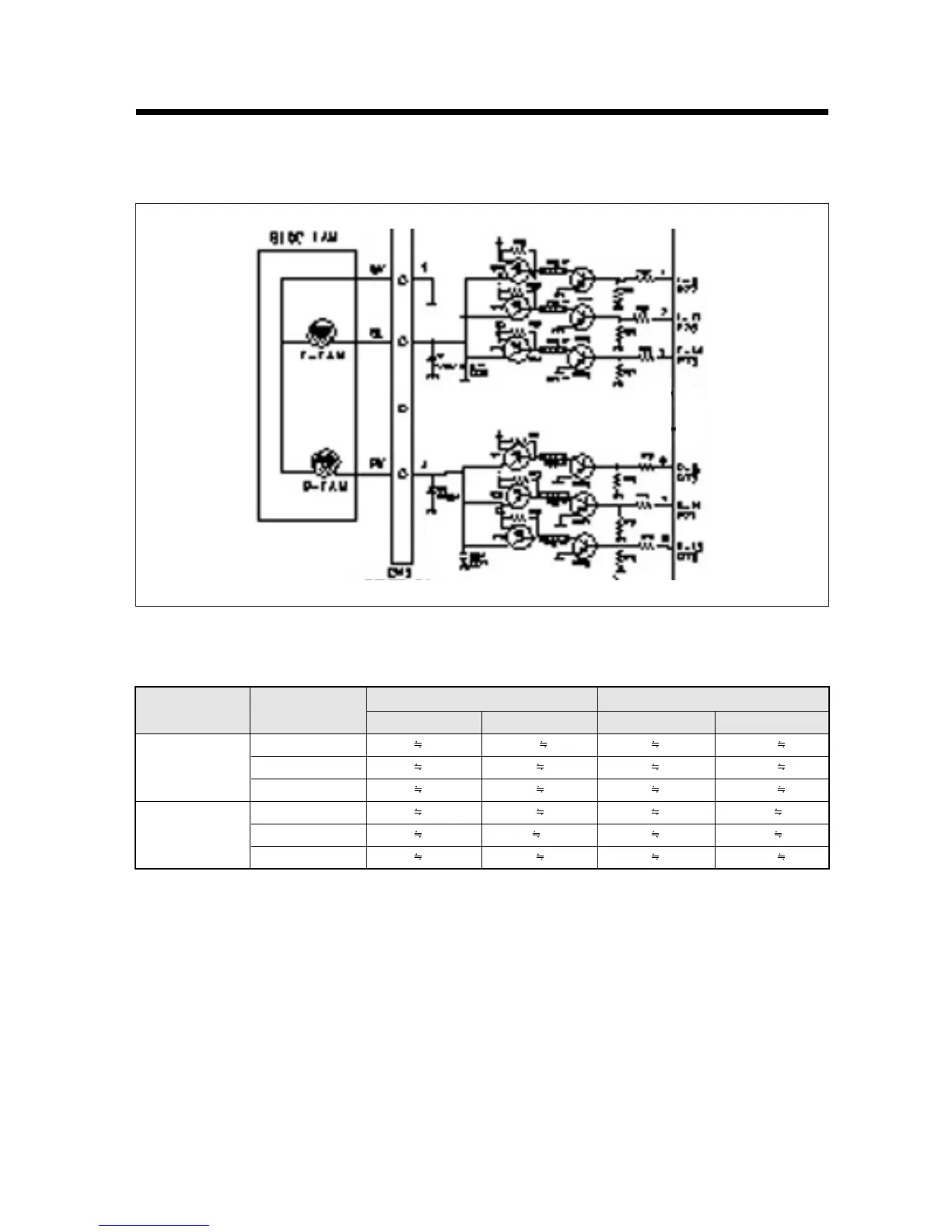

3-4. Fan
1) Circuit Diagram
