31
Control Object How to Control Terms to be ON Terms to be OFF
MICOM PORT IC2 Output PIN MICOM PORT IC02 Output PIN
COMP RELAY #31 3.7V #10 0.7V #31 0V #10 12V
HTR RELAY #32 3.7V #11 0.7V #32 0V #11 12V
L-HTR RELAY #33 3.7V #12 0.7V #33 0V #12 12V

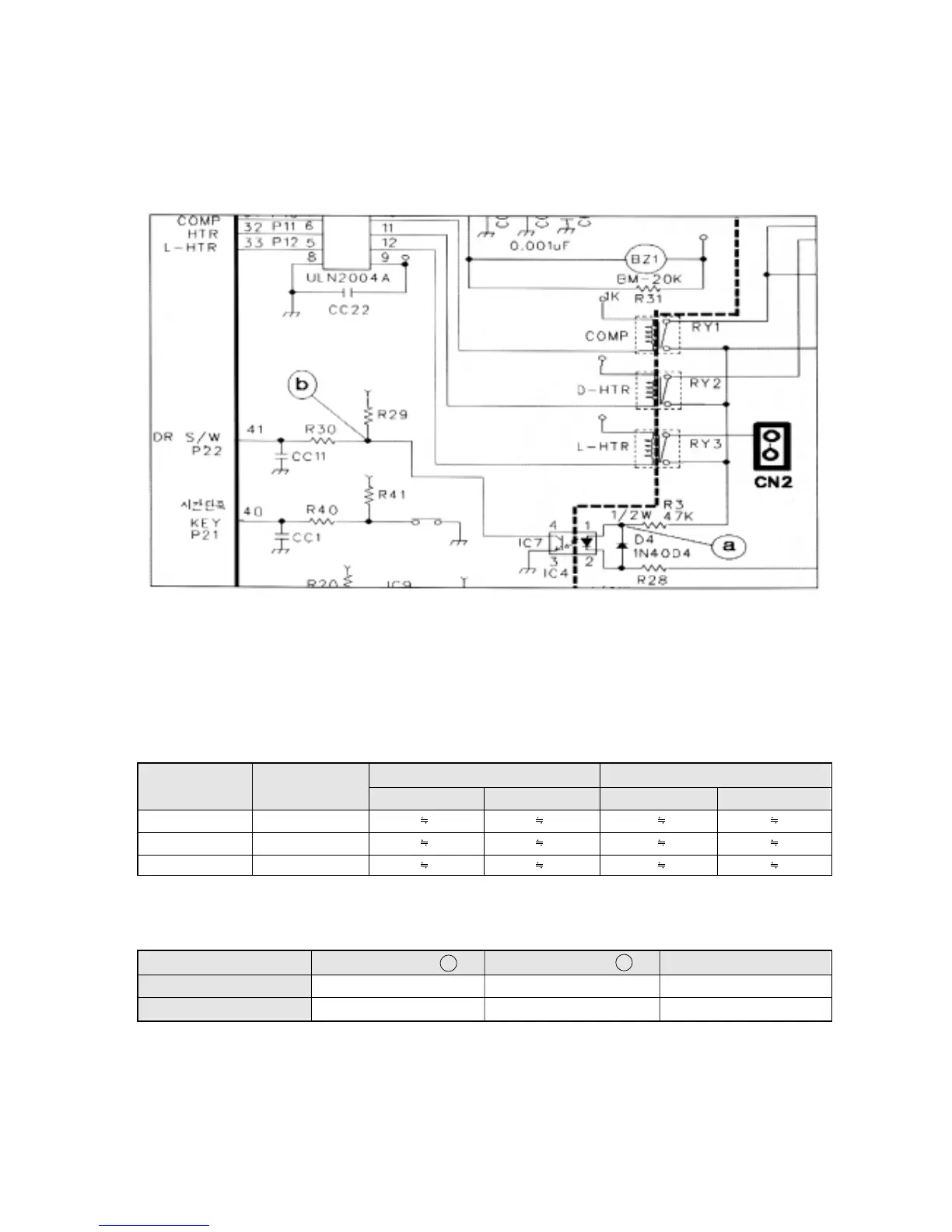

3-3. Relay
1) Circuit Diagram
2) How it works ;
3) Sensing of Door Switch OPEN & CLOSE
Measuring Point a Measuring point b Remark
Door OPEN AC 60 V 2.9 V Ball-shaped Signal
Door CLOSE 0 V 5.0 V
