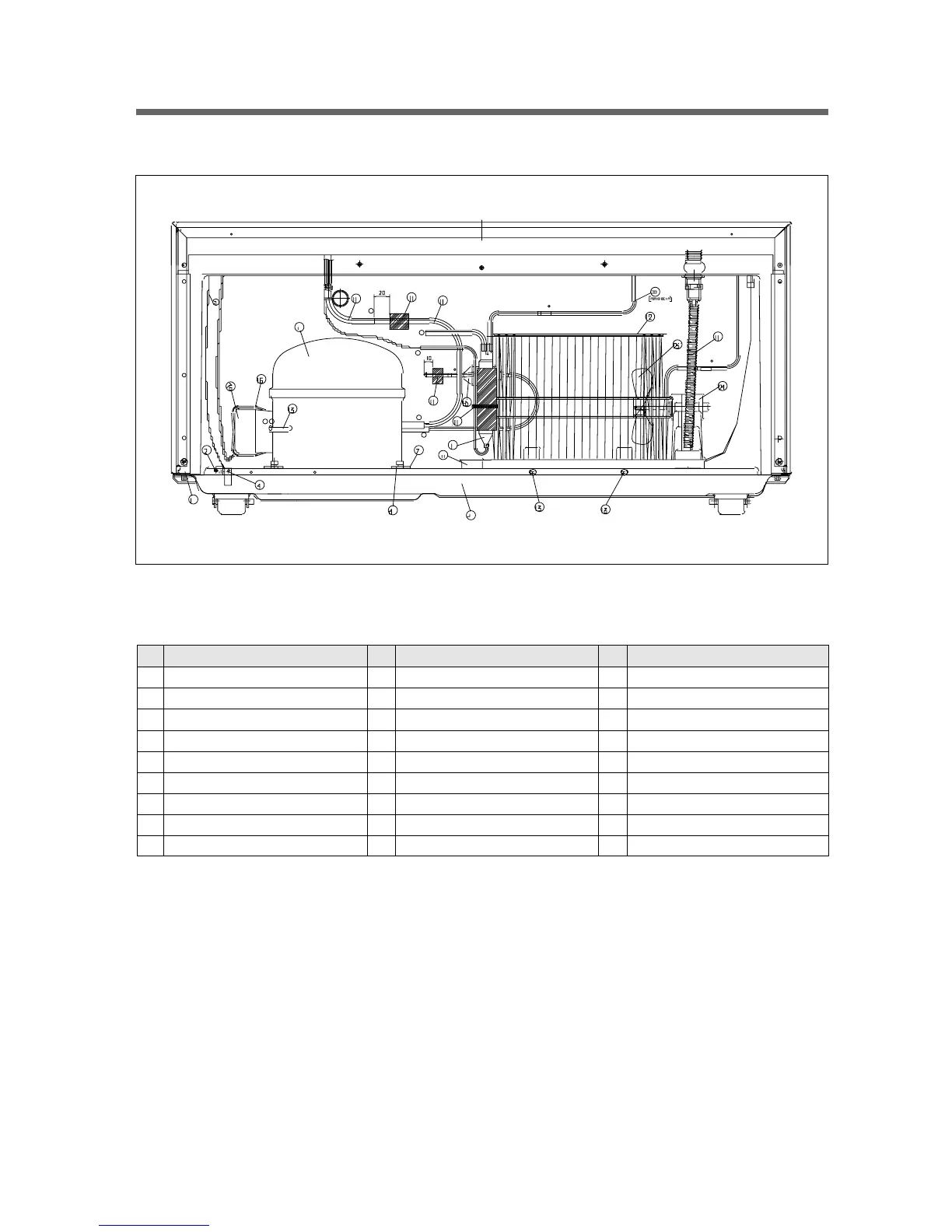

5-3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST
NO PART NAME
1 BASE CAB *B
2 SCREW MACHINE
3 CORD POWER AS
4 SCREW TAPPING
5 COMPRESSOR
6 ABSORBER COMP AS
7 WASHER SPECIAL
8 BASE COMP AS
9 DRYER AS
NO PART NAME
10 CABLE TIE
11 CASE VAPORI AS
12 PIPE WI-CON AS
13 SCREW TAPPING
14 DRAIN HOSE B AS
15 SWITCH P-RELAY AS
16 BAND RELAY
17 PIPE SUC AS
NO PART NAME
18 PIPE SUC CONN
19 ABSORBER PIPE
20 PIPE MUFFLER AS
21 ABSORBER PIPE A
22 PIPE HOT
23 PIPE SERVICE
24 MOTOR C
25 FAN C AS
