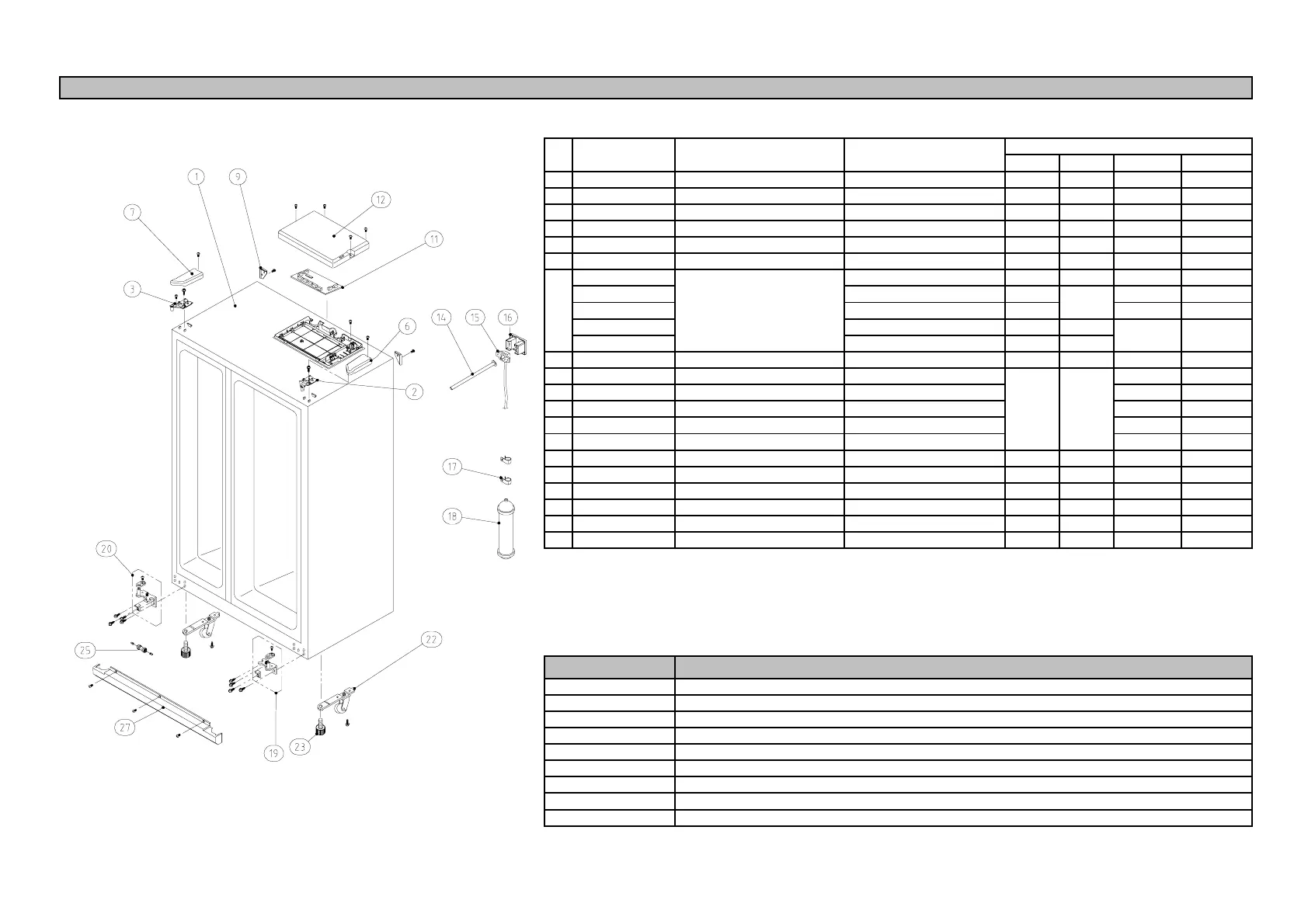

Daewoo FRS-U20BE series - 11 Exploded View & Parts List

20IE 20BE 20D(E)E 20F(G)E
1 ASSY CAB URT
11 1 1
2 3012924400 HINGE *T *R AS PO T3.0+PAINT
11 1 1
3 3012924300 HINGE *T *L AS PO T3.0+PAINT
11 1 1
6 3011446200 COVER HI *T *R PP
11 1 1
7 3011446100 COVER HI *T *L PP
11 1 1
9 3010968400 CAP CAB COVER PP
22 2 2
30143D6061 INNER BASIC (R-134a)
1x x x
30143E1020 BASIC (R-134a)
xxx
30143E1060 BASIC (R-600a)
xxx
30143D5072 FRU-541F (R-134a)
xx
30143D5062 FRU-541F (R-600a)
xx
12 3011446001 COVER M/PCB BOX PP(FB-72)
11 1 1
14 3013224800 HOSE I/MAKER TUBE AS FRU-541D
11
15 3012519210 GUIDE CAB W/TUBE A AS L1525
11
16 3011444100 COVER GUIDE CAB W/TUBE A PP
11
17 3011202000 CLAMP TUBE PA-66,5N
22
18 3019974800 S/PART FILT WATER AS FR-S660CW/CD
11
19 3012924003 HINGE *U *R AS P/O T5.0+PAINT
11 1 1
20 3012923902 HINGE *U *L AS P/O T5.0+PAINT
11 1 1
22 3010657201 BRACKET ADJ FOOT SPCC T2.6
22 2 2
23 3012105100 FOOT ADJ AS PP
22 2 2
25 3013064200 HOLDER TUBE A A5UC5
xx 1 1
27 3011447200 COVER CAB BRKT PP
11 1 1
- Some parts can be chaged for improving their perfomance without notice.
- Above parts number doesn't describe your own colour & printing. Please remind!
