G420E/G424E Tier LP Engine N-CA55-500TR Mixer 72
N-CA55-500TR Disassembly
and Service
(1) BODY (2) SCREW (3) VALVE (4) SPRING
(5) ASSEMBLY (6) GASKET (7) GASKET (8) SCREW
(9) WASHER (10) SCREW (11) ORIFICE FITTING
(12) LABEL (13) LABEL (14) CAP

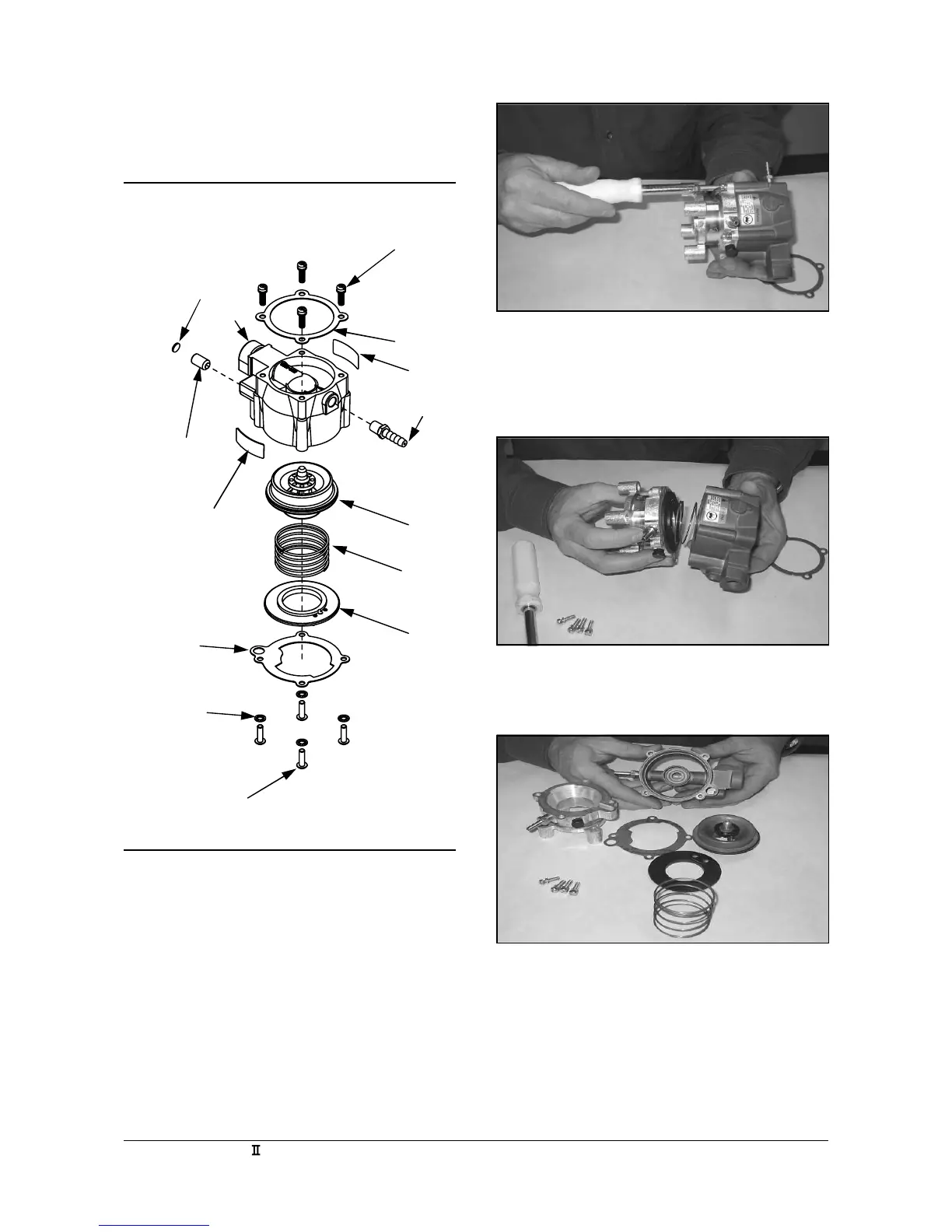

1. With the mixer/adapter assembly removed, and
the Air Horn removed from the mixer, remove the
four adapter retaining screws from the bottom of
the mixer (Figure M4).
2. Gently remove the throttle adapter from the
bottom of the mixer (Figure M5).
3. Components of the N-CA55-500TR and the mixer
body are shown in (Figure M6).
Figure M4
Figure M5
Figure M6
8
7
12
3
4
5
10
9
6
13
2
14
1
11
