G420E/G424E Tier LP Engine Test And Adjustments 79

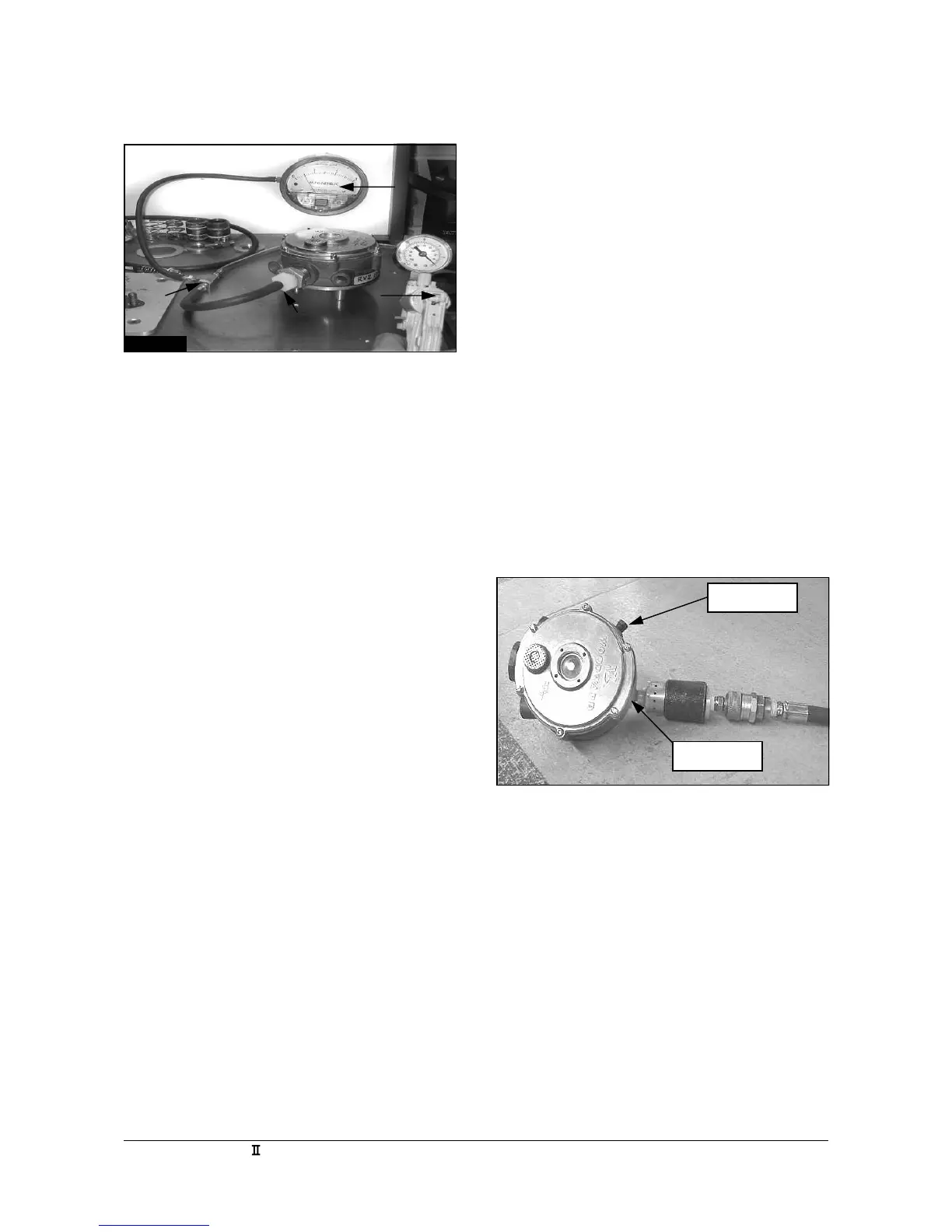

Secondary Stage Test Connection
Primary Stage Test Hardware
1. Hand vacuum pump.
2. Regulator Fuel Inlet test fitting (¼” NPT standard
air coupling).
3. Test Gauge fitting (1/4” NPT X 1/4” Hose Barb).
4. Vacuum hose or vinyl tubing.
5. 0-60 in W.C. Magnehelic Gauge (inches of water
column).
Primary Stage Pressure Test
1. Remove the primary test port plug from the side of
the regulator and install the ¼” NPT hose barb
fitting.
2. Connect a compressed air line (shop air ~100psi)
to the liquid propane fuel inlet of the N2001
Regulator (Figure R12).
Union Tee
Vacuum
Hand Pump
Vapor Outlet
Test Fitting
Magnahelic
Gauge
Test Port
Figure R12
Fule Inlet
Figure R11
To Next Page
