Maintenance Section
-190-
8. Install the outer wheel bearing and the out
washer. Install a new lock washer and fit the
locknut.

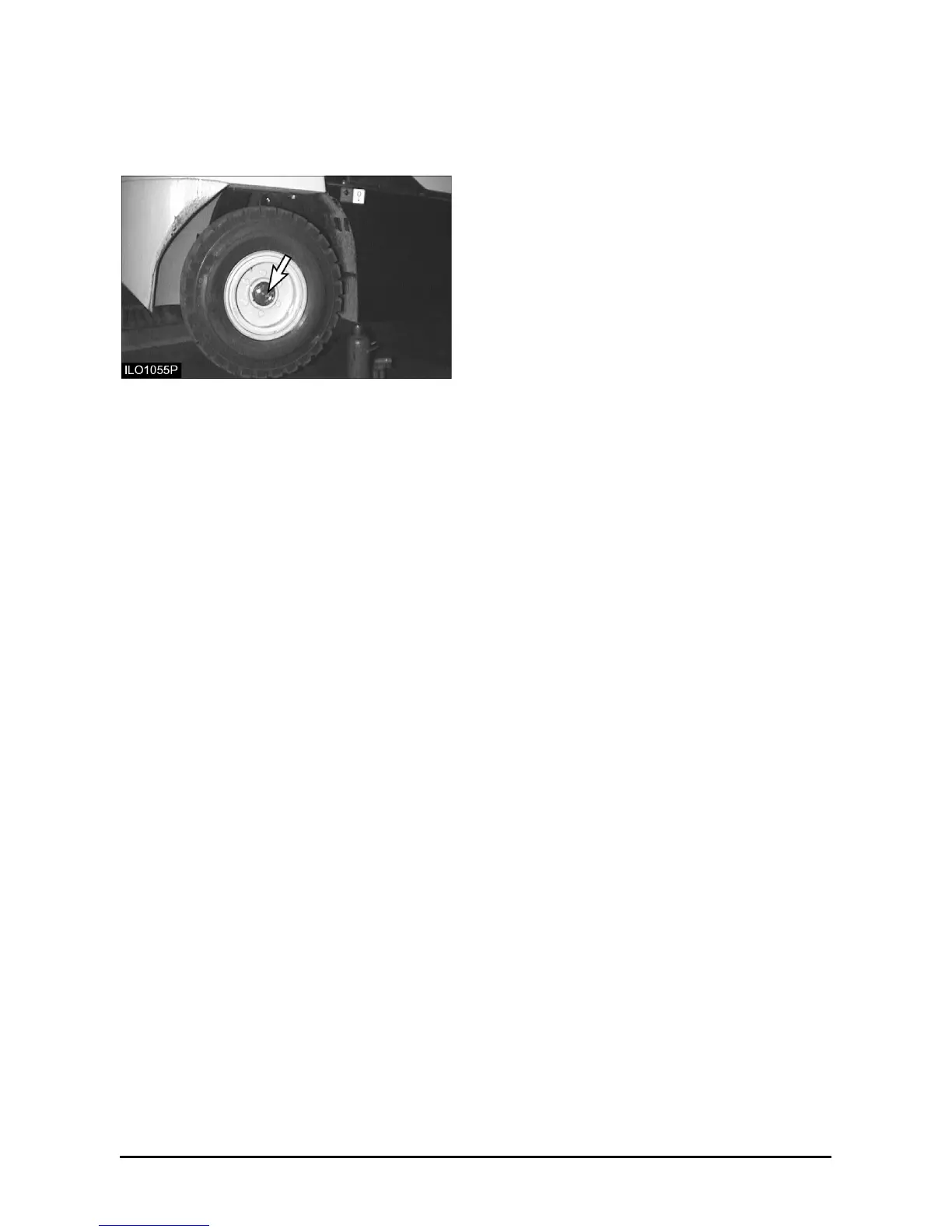

Typical Example
9. Tighten the locknut to 135 N•m (100 lb•ft), while
turning wheel hub to seat the bearing.
10. Loosen the locknut. Retorque it to 50 ± 5N•m
(37 ± 4 lb•ft). Bend the lock washer tang to
secure locknut.
11. Install the hub cap.
12. Raise the lift truck and remove the blocking.
Lower the lift truck to the ground.
