20

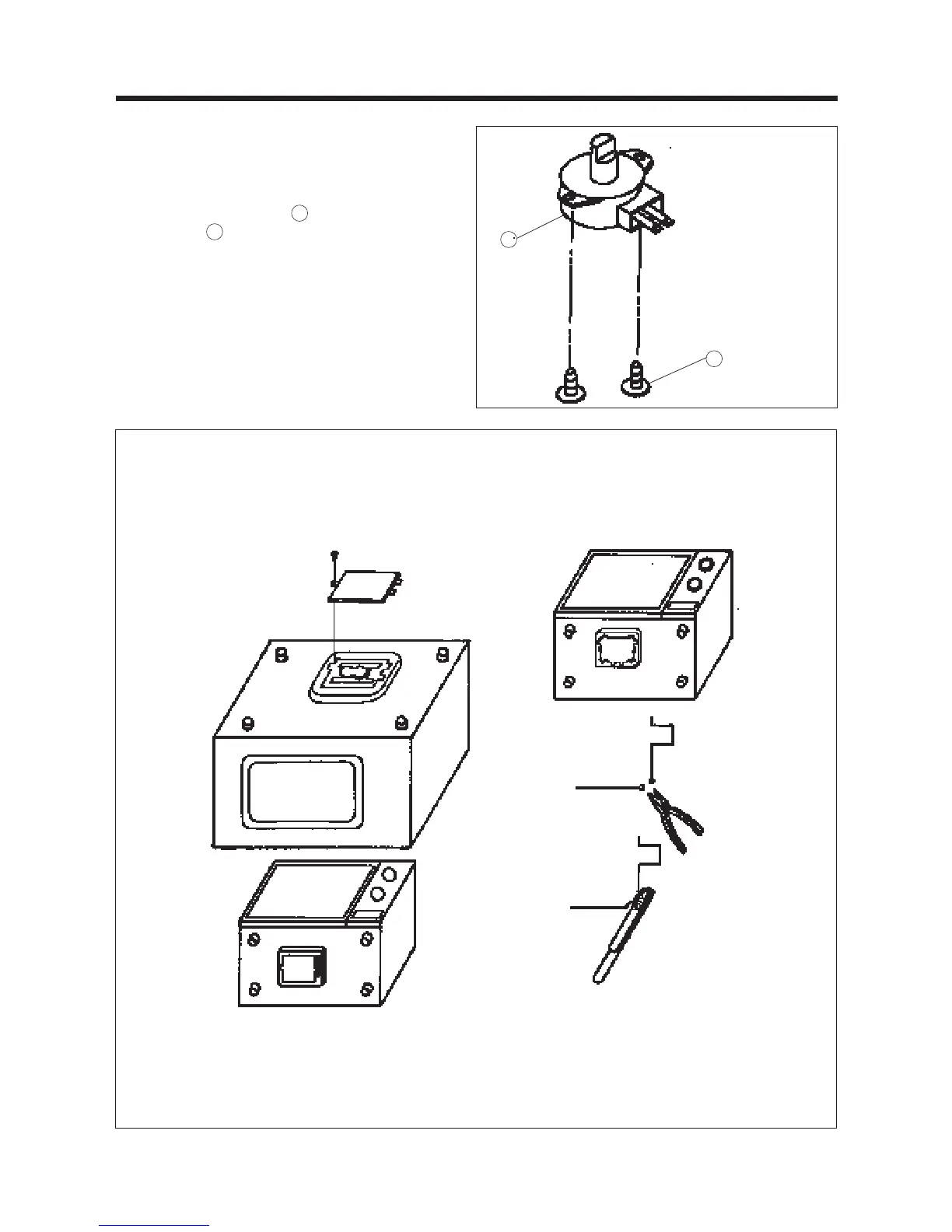

10. To remove tray motor. (Refer to Fig. 11)
1) Cut the tray motor cover parts from the base
plate (Refer to Fig 11, 12).
2) Remove the tray motor cover.
3) Remove two screws which secure the tray
motor to tray motor bracket.
4) Remove the tray motor.
Fig. 12
(Bottom)
(Front)
Slit
Nipper
File
Fig. 11
F11
F12
F11
F12
To Next Page
