5. To remove control panel parts.
1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
2) Remove three screws which secure the PCB assembly to control panel.
3) Disconnect membrane tail from the connector of the PCB assembly.
4) Detach membrane from the control panel.
5) Reverse the above steps for reassembly.

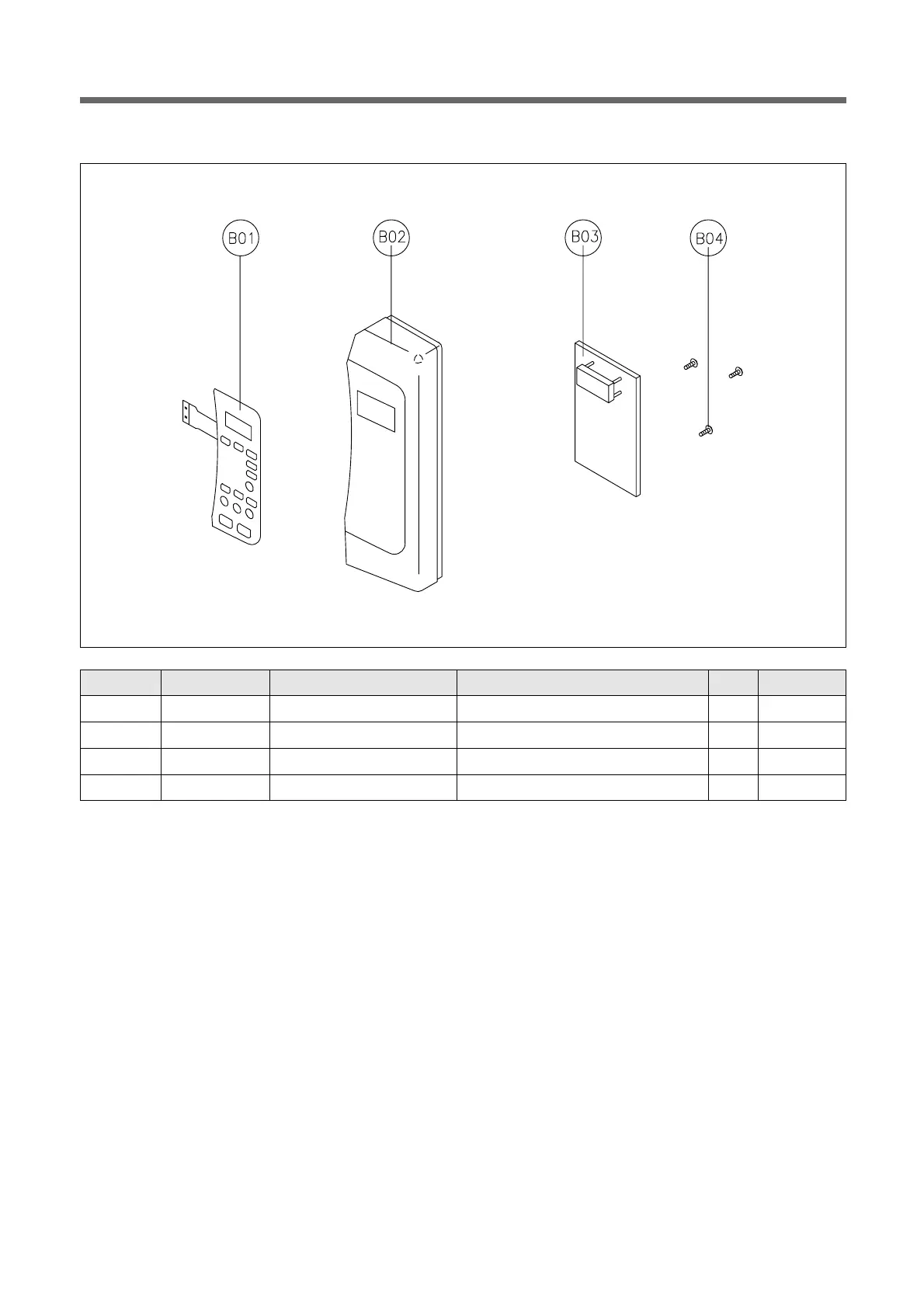

REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
B01 3518524100 SWITCH MEMBRANE KOR-6C0B5S 1
B02 3516729000 CONTROL PANEL HIPS 1
B03 PKMPMSZA00 PCB AS KOR-631G0S 1
B04 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 3
✔ Caution
:
In this Manual, some parts can be changed for improving, their performance without notice in the parts
list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service
Information Center (http://svc.dwe.co.kr).
