1 DOOR SEAL
Door seal maintains the microwave within the oven cavity and prevents microwave leakage.
2 DOOR HOOK
When the door is closed, it will automatically lock shut. If door is opened while oven is operating, magnetron tube
will immediately stop operating.
3 DOOR SCREEN
Allows viewing of food. Microwave cannot pass through perforations in screen.
4 SPATTER SHIELD
Protects the microwave outlet from splashes of cooking foods.
5 OVEN LAMP
Automatically turns on during oven operating.
6 SAFETY INTERLOCK SYSTEM
7 CONTROL PANEL
8 GLASS COOKING TRAY
Made of special heat resistant glass. The tray must always be in proper position before operating. Do not cook
food directly on the tray.
9 OVEN FRONT PLATE
0 ROLLER GUIDE
Supports the glass cooling tray.

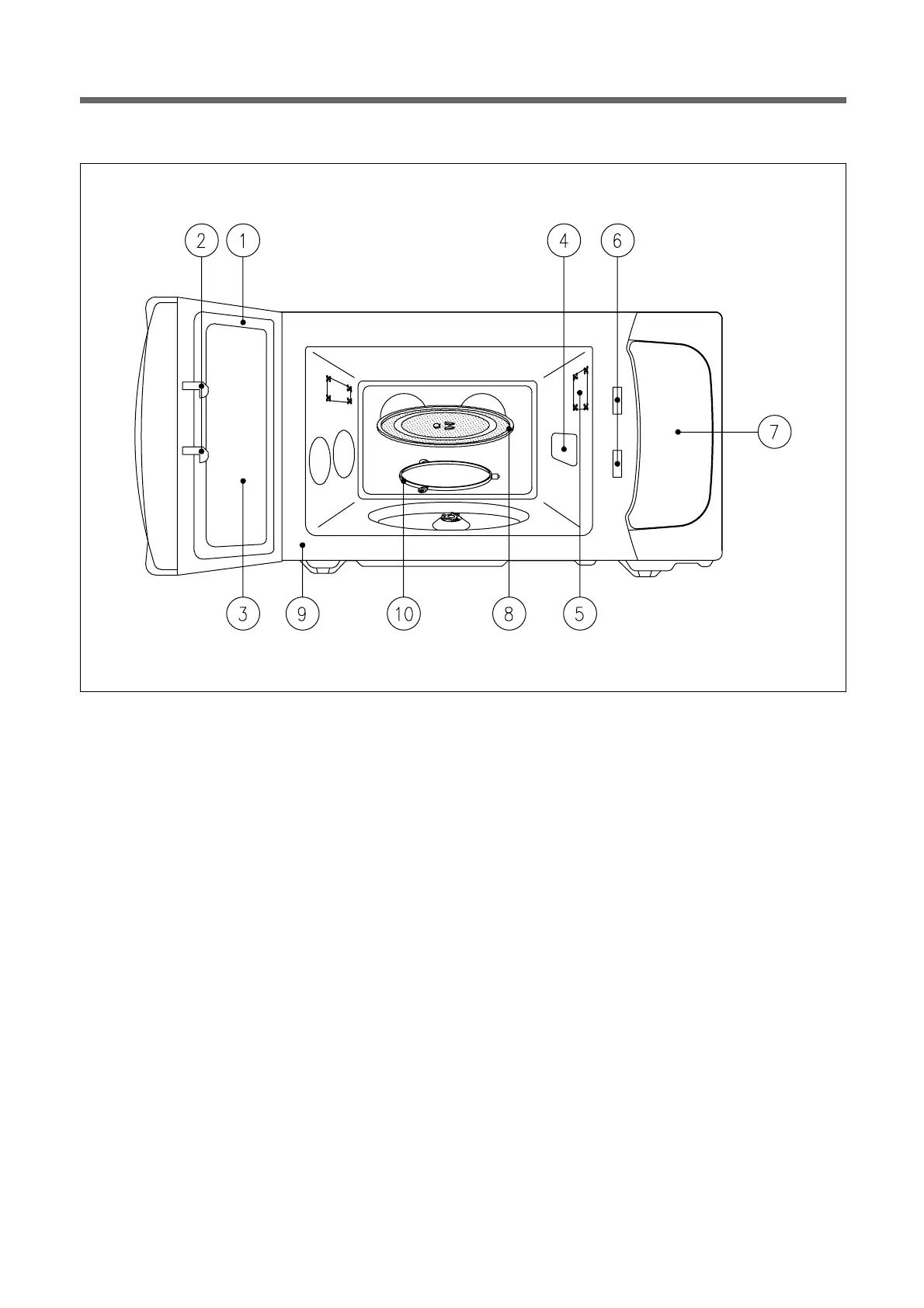

2. FEATURE DIAGRAM
