1 Door latch - When the door is closed, it will automatically shut off. If the door is opened while the oven is operating, the
magnetron will automatically shut off.
2 Door seal - The door seal surfaces prevent microwaves escaping from the oven cavity.
3 Oven cavity
4 Control panel
5 Door open button - To open the door push the door open button.
6 Roller guide - This must always be used for cooking together with the glass cooking tray.
7 Glass cooking tray - Made of special heat resistant glass. The tray must always be in proper position before operating.
Do not cook food directly on the tray.
8 Viewing screen - Allows viewing of food.
The screen is designed so that light can pass through, but not the microwave.
9 Waveguide cover - Protects the microwave outlet from splashes of cooking foods.
0 Safety interlock system
q Oven lamp - Automatically turns on during oven operating.

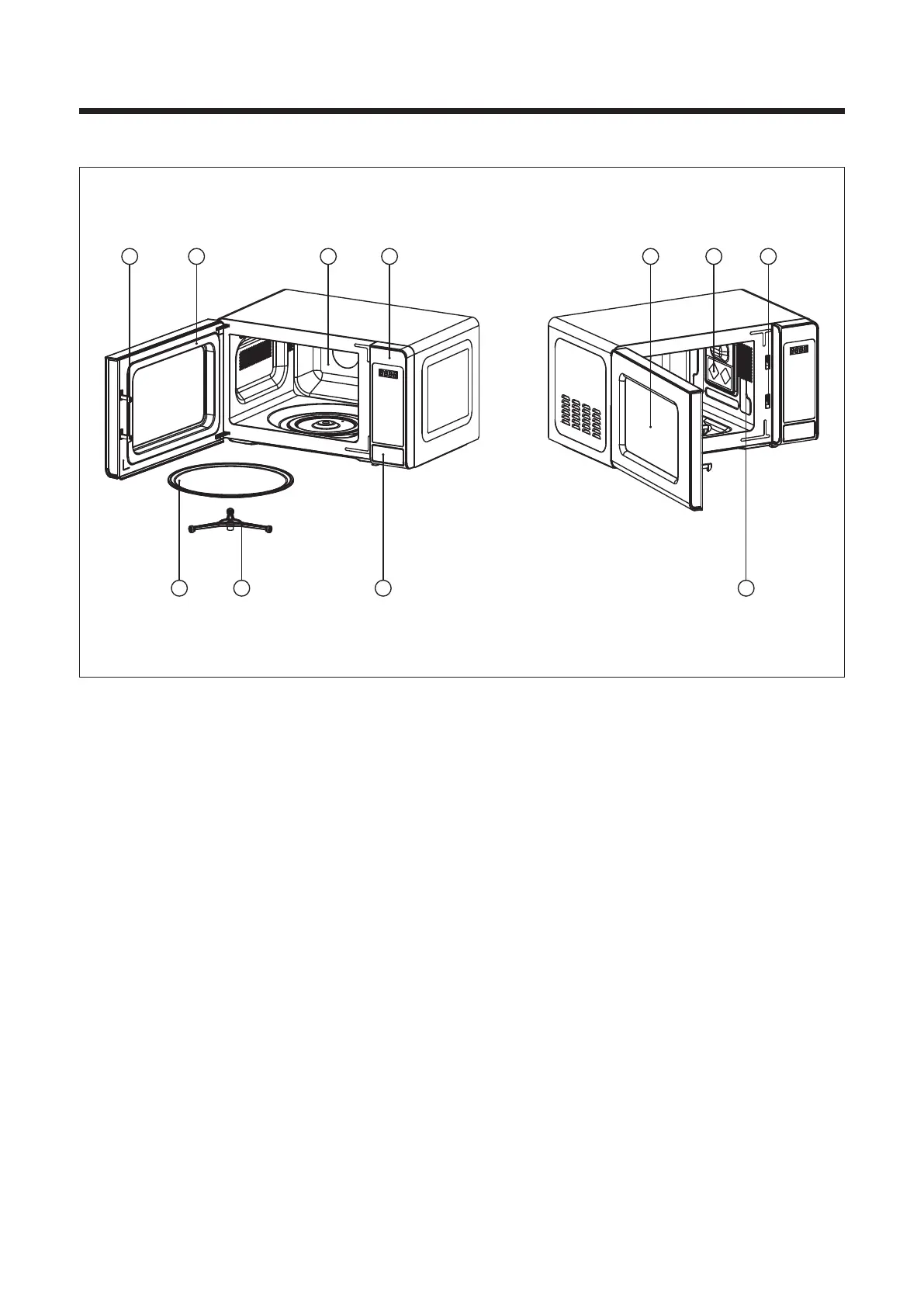

2. FEATURES DIAGRAM
