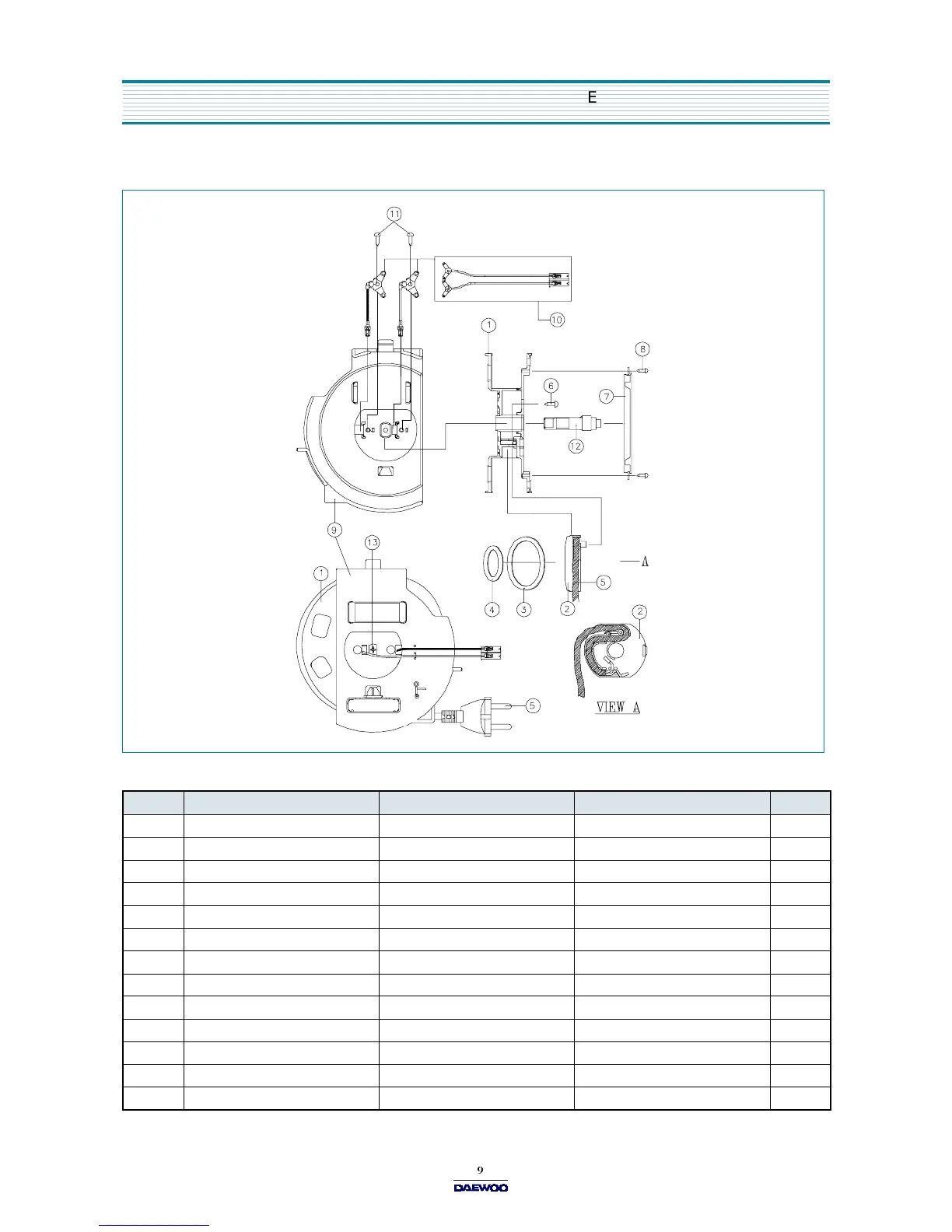

EXPLODED VIEW AND PARTS LIST
3. CORD POWER ASSEMBLY
No PART NAME CODE SPEC Q’TY
1 BOBBIN 3629200600 PP 1
2 HOLDER TERMINAL 4565A36020 PC(V-0) 1
3 TERMINAL 4565A36024 C2600P-1/2H T0.3 1
4 TERMINAL 4565A36034 C2600P-1/2H T0.3 1
5 CORD POWER 3621302500 250V16A H05VVH2F TA-17 1
6 SCREW TAPPING 7121301411 T2S PAN 3X14 MFZN 1
7 SPRING AS 3625102005 SUS-301EH+ COVER 3800 1
8 SCREW TAPPING 7121301411 T2S PAN 3X8 MFZN 1
9 BRACKET CR 3620601600 PC 1
10 TERMINAL AS 3628709800 Y-TERMINAL+HOUSING 1
11 SCREW TAPPING 7121400611 T2S PAN 4X6 MFZN 2
12 SHAFT REEL 3624900510 PC 1
13 SCREW TAPPING 7121401411 T2S PAN 4X14 MFZN 1
Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
