DISASSEMBLING AND TREATMENT

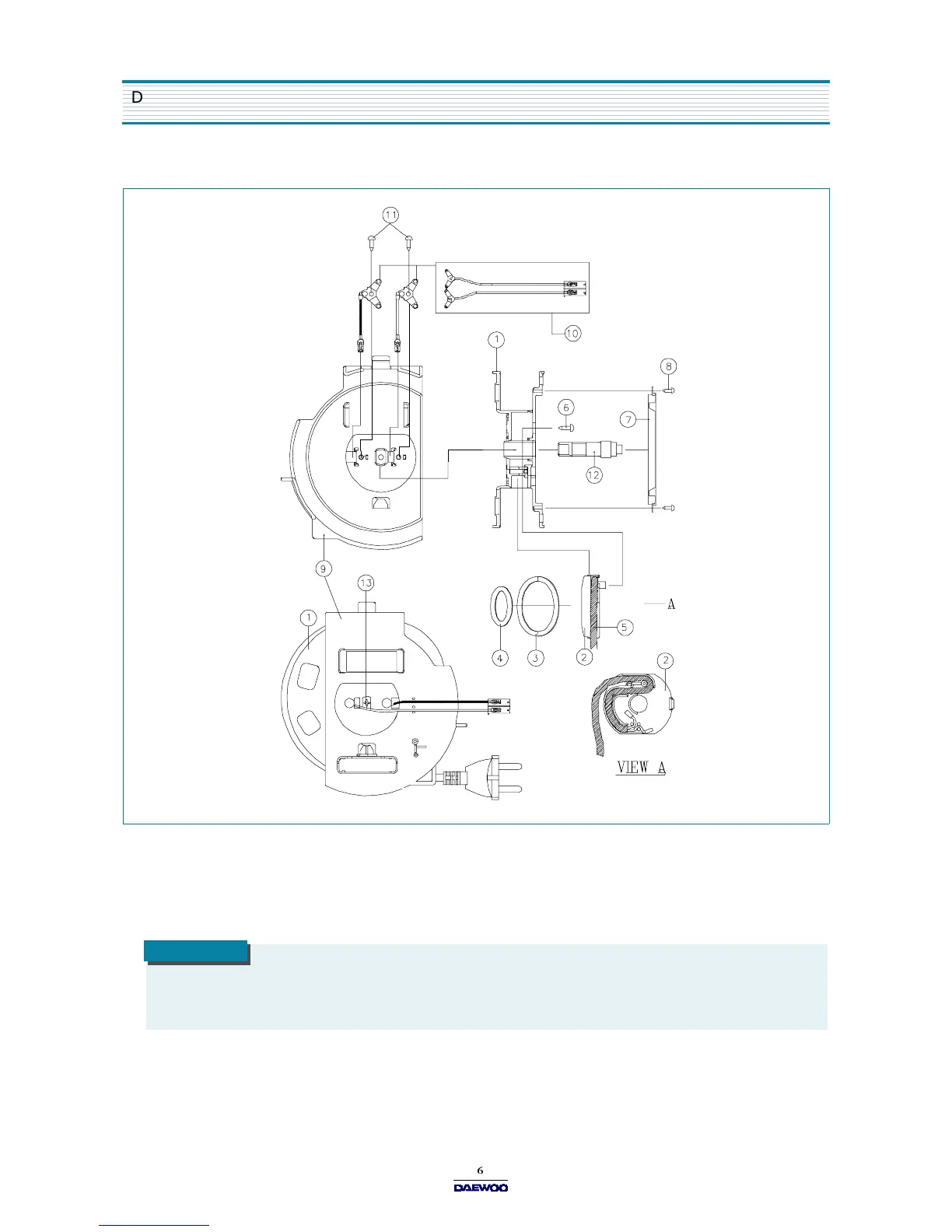

2. CORD REEL ASSEMBLY
1) Take the cord reel out of the body cover.
2) Unscrew the screw and separate the bobbin from the bracket and check the contacts between the Y terminals.
At this time, the bobbin is rotated counterclockwise due to the preserved winding.
3) If the reel spring is broken, unscrew the 2 screws and replace it.
4) Unscrew the screw and part bobbin.
5) Check the connections between the power cord and the terminals.
6) When assembling, make the reserved winding 4 revolutions of the bobbin clockwise.
CAUTION
WHEN DISASSEMBLING, THE REEL SPRING MAY SPRING OUT OF THE COVER.
