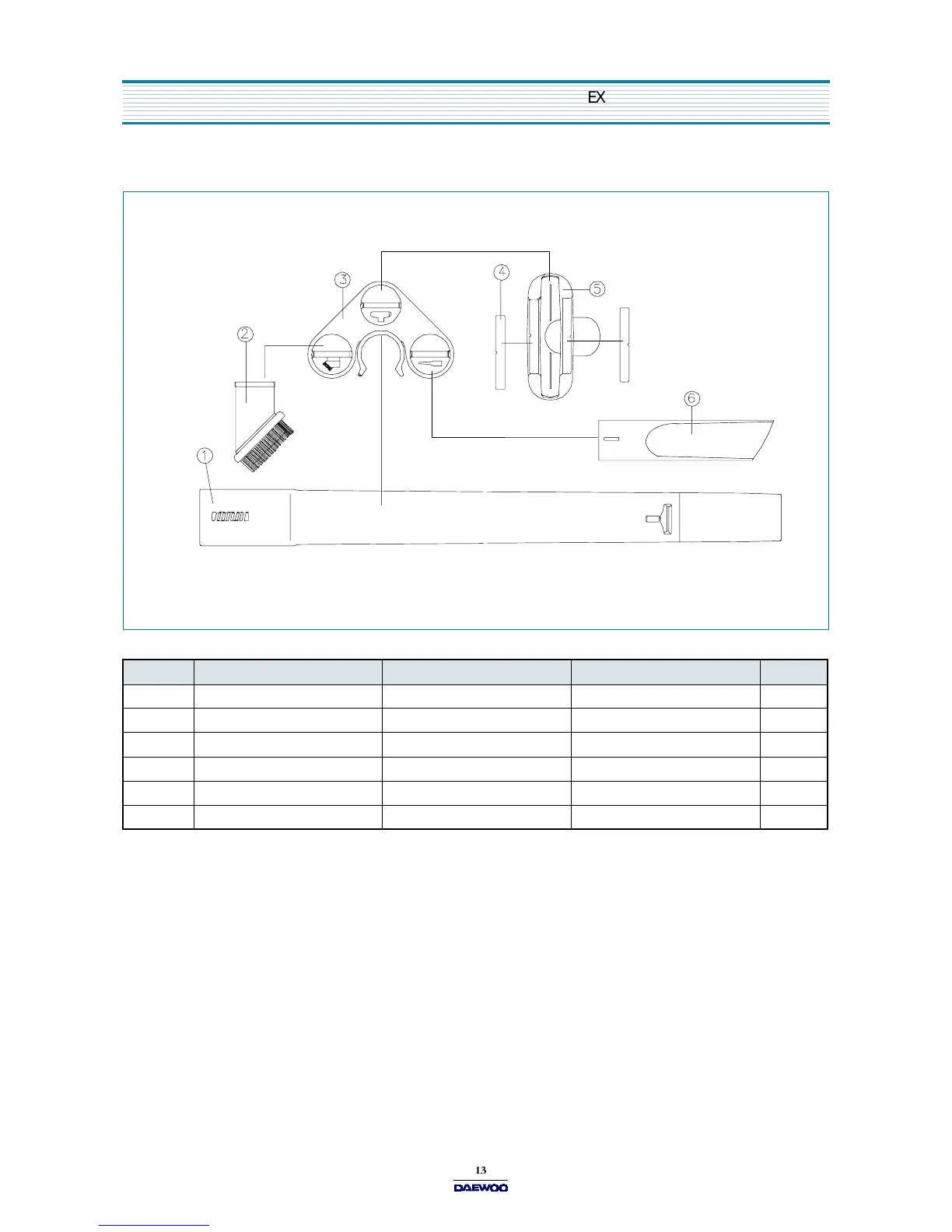

EXPLODED VIEW AND PARTS LIST
7. EXTENSION PIPE AND NOZZLES
No PART NAME CODE SPEC Q’TY
1 PIPE EXTENSION 3624408500 PP 2
2 BRUSH DUSTING 3629305000 PP+NYLON 1
3 HOLDER NOZZLE 3623004200 PP 1
4 PICKER LITTER 3627000700 PA 2
5 NOZZLE UPHOLSTERY 3628100700 PP 1
6 NOZZLE CREVICE 3628100600 PP 1
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
