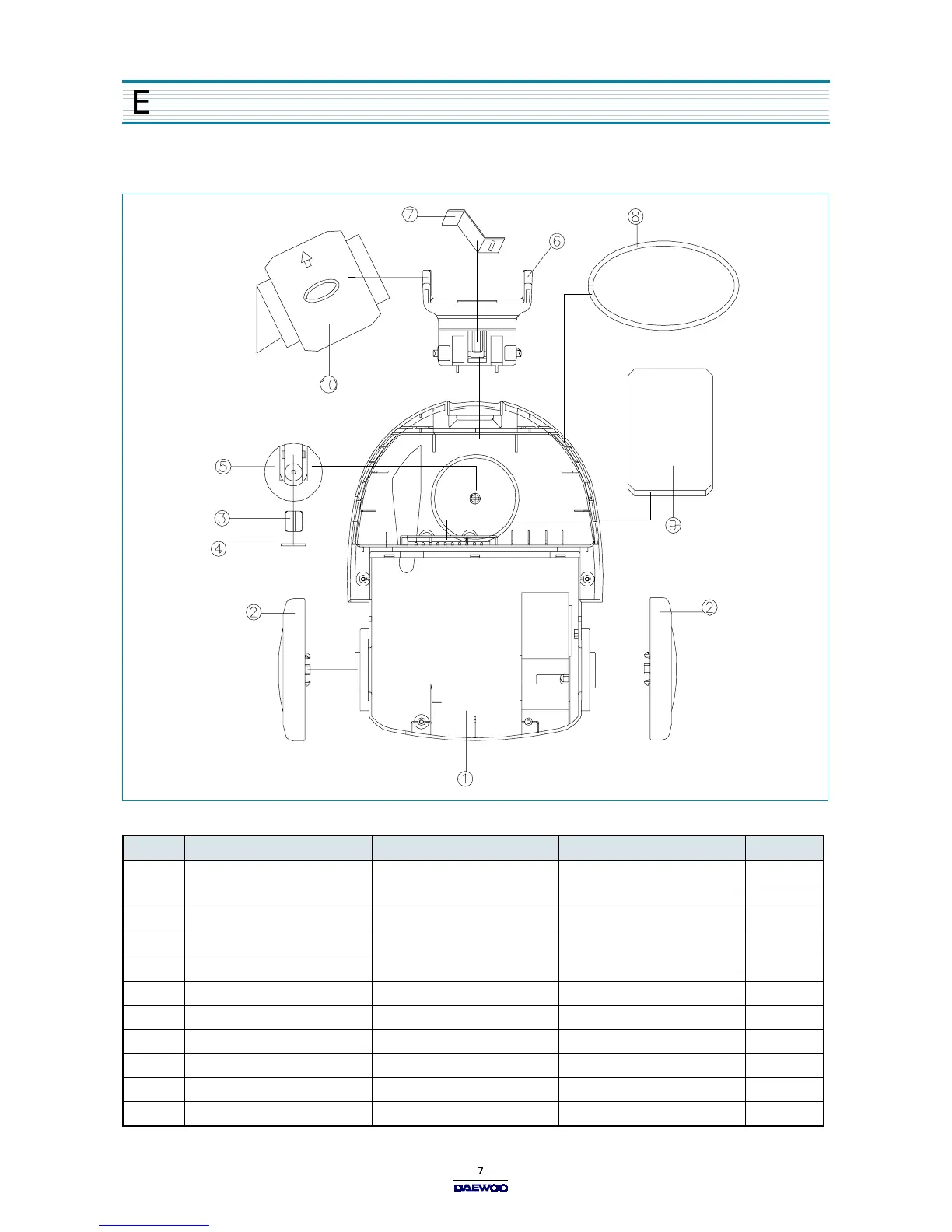

EXPLODED VIEW AND PARTS LIST
1. BODY ASSEMBLY
No PART NAME CODE SPEC Q’TY
1 BODY 3620406300 PP 11
2 ROLLER BACK 3624703410 PP 2
3 ROLLER FRONT 3624703600 PP 1
4 SHAF T ROLLER 3624901000 SWRM 1
5 BRACKET ROLLER 3620601500 PP 1
6 HOLDER FILTER 3623004000 PP 1
7 SPRING HOLDER 362510600 SK-5 1
8 GASKET 3624004800 RUBBER FOAM 1
9 FILTER-IN 3621904200 POLYESTER 1
10 BAG FILTER 3620202500 2-LAYER, 3L 1
11 SCREW TAPPING 7128401212 T2S WAS 4X12 1
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
