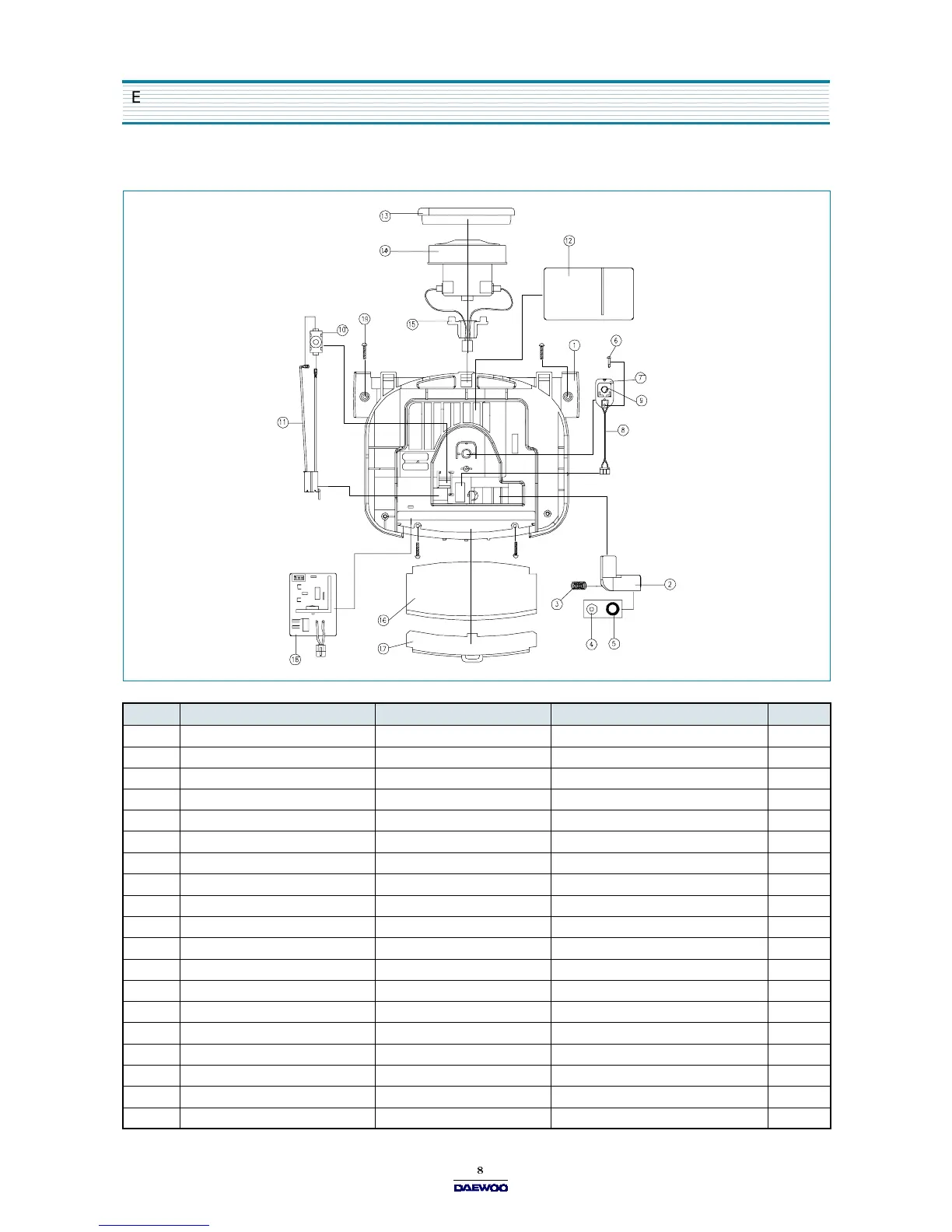

EXPLODED VIEW AND PARTS LIST
2. BODY COVER ASSEMBLY
No PART NAME CODE SPEC Q’TY
1 COVER BODY 3621416950 PP 1
2 LEVER CR 3623702000 PC 1
3 SPRING LEVER 3625104300 HSW3 1
4 FRAME STOPPER 4565A35070 POLY ACETAL 1
5 STOPPER CR 4569C35082 NBR 1
6 SCREW TAPPING 7121301211 T2S PAN 3X12 1
7 PCB 3624304501 ROTARY PCB 1
8 HARNESS 3622710100 HOUSING+WIRE(YW)+WIRE(YW) 1
9 VR ROTARY 5V2204009B B200K 1
10 SWITCH PUSH 3629002000 7A/250V(SKT) 1
11 HARNESS 3622710200 RECEP+WIRE(BK) 1
12 FILTER 3621905600 POLYESTER 1
13 PACKING MOTOR 3624004900 SBR 1
14 MOTOR UNIVERSAL 3962511400 230V 110W(F) DMI 1
15 MOUNT MOTOR 3627900900 TPE 1
16 FILTER EXHAUST 3621904300 POLYESTER 1
17 CASE FILTER 3621103000 PP 1
18 PCB AS 3624308520 RC-350 230-240V/50Hz 1
19 SCREW TAPPING 7171402011 TT2 PAN 4X20 4
Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
