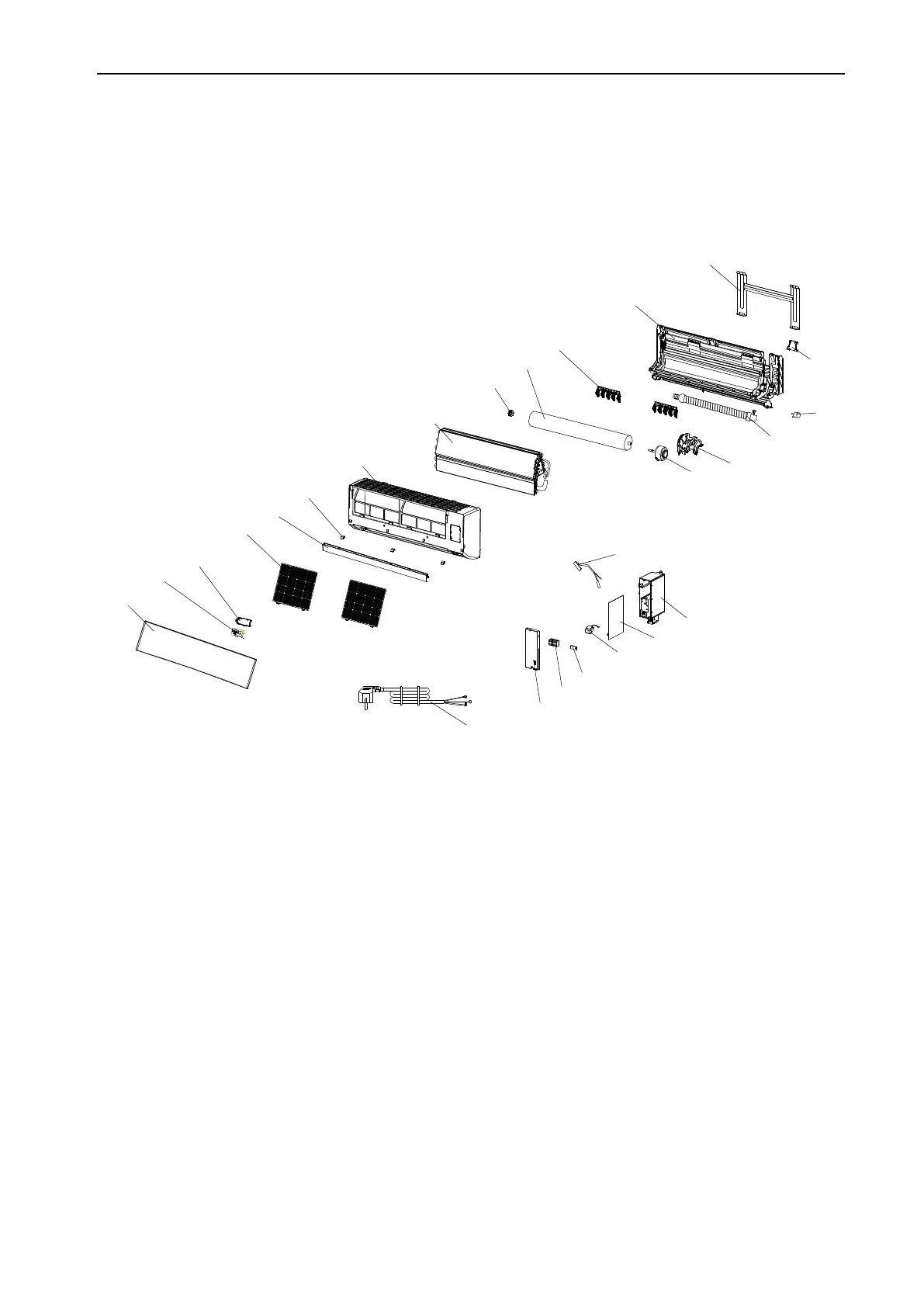

6. Explosion view and parts
Mode: TAC-07HRA/E1, TAC-09HRA/E1, TAC-12HRA/E1, TAC-18HRA/E1, TAC-24HRA/E1
TAC-09HRA/ES, TAC-12HRA/ES
INDOOR UNIT:
22
23
25
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
24
20
26
21
