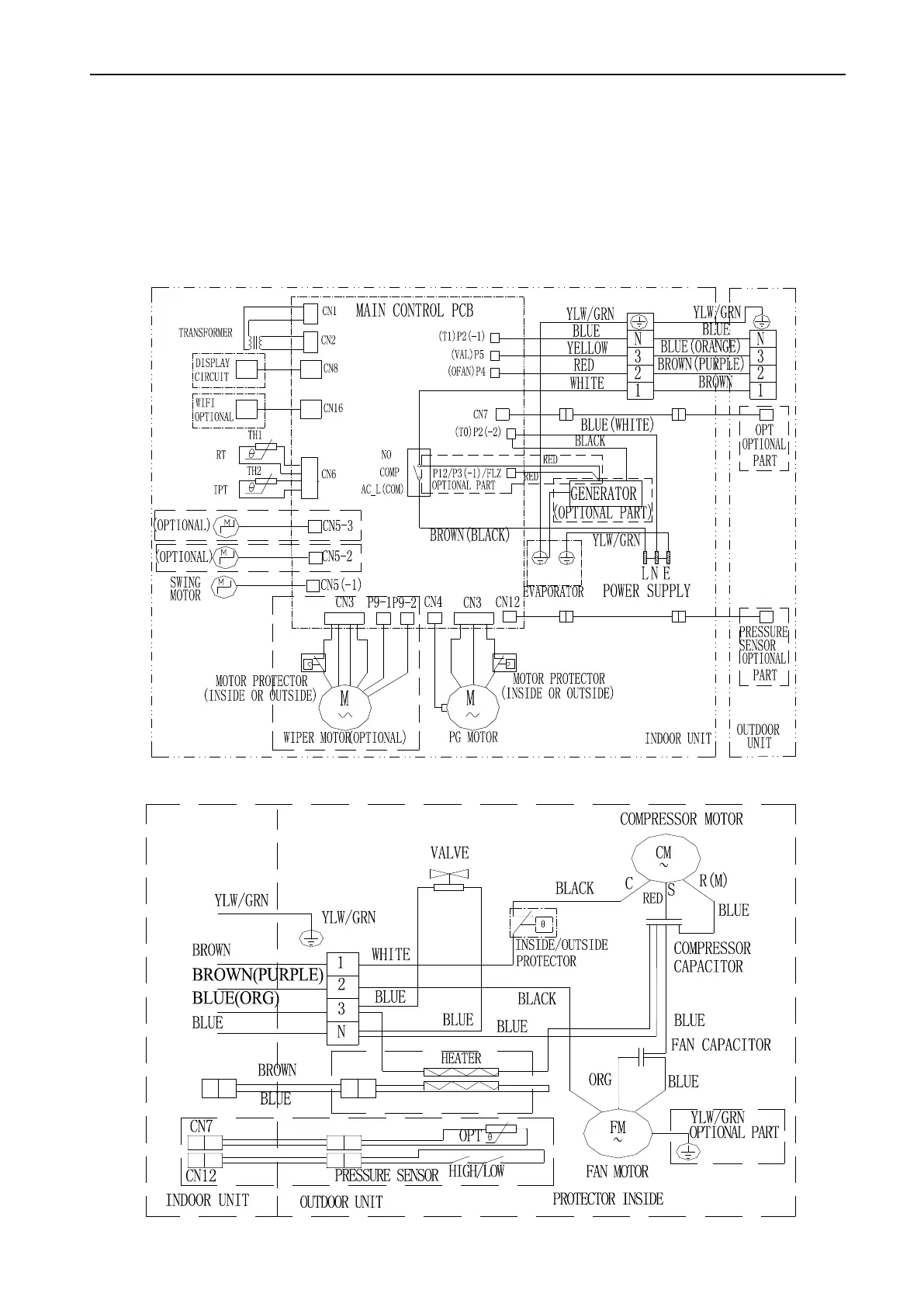

5. WIRING DIAGRAM
MODEL: TAC-07HRA/E1/TACO-07HRA/E1, TAC-09HRA/E1/TACO-09HRA/E1,
TAC-12HRA/E1/TACO-12HRA/E1,TAC-18HRA/E1/TACO-18HRA/E1,
TAC-24HRA/E1/TACO-24HRA/E1,TAC-09HRA/ES/TACO-09HRA/ES
TAC-12HRA/ES/TACO-12HRA/ES, TAC-09HRA/EW/TACO-09HRA/EW
TAC-12HRA/EW/TACO-09HRA/EW,TAC-18HRA/EW/TACO-09HRA/EW
INDOOR UNIT:
OUTDOOR UNIT
