47
9. Installation manual
9.1 Information for installation
Connecting pipe
Model
Pipe size(Inch)
Liquid
Gas
TACO-07HA/E1,TACO-09HA/E1
TACO-12HA/E1, TACO-07HA/EW
TACO-09HA/EW, TACO-12HA/EW
TACO-09HA/ES, TACO-12HA/ES
1/4
3/8
TACO-18HA/E1,TACO-18HA/EW
1/4
1/2
TACO-24HA/E1, TACO-28HA/E1
1/4
5/8
TACO-36HA/WE
1/2
3/4
Mode
Standard length:
m
Refrigerant
piping Max.
length: m
Additional refrigerant
Calculation: ×g=20g/m(A-5m)
TAC-07HRA/E1, TAC-09HRA/E1
TAC-07HRA/EW, TAC-09HRA/EW
TAC-09HRA/ES
3.0
20
20g/m
TAC-12HRA/E1, TAC-12HRA/EW
TAC-12HRA/ES
3.5
20
20g/m
TAC-18HRA/E1, TAC-12HRA/EW
5.0
20
30g/m
TAC-24HRA/E1, TAC-28HRA/E1
5.0
20
30g/m
TAC-36HRA/WE
5.0
20
40g/m
Connecting cables
The power cord should be selected according to the following specifications sheet.
Appliance Amps
Wire Size
5
AWG21/0.75 mm
2
10
AWG18/1.0 mm
2
13
AWG15 /1. 5 mm
2
18
AWG14/1.6 mm
2
25
AWG12/2.0 mm
2
30
AWG10/2.5 mm
2

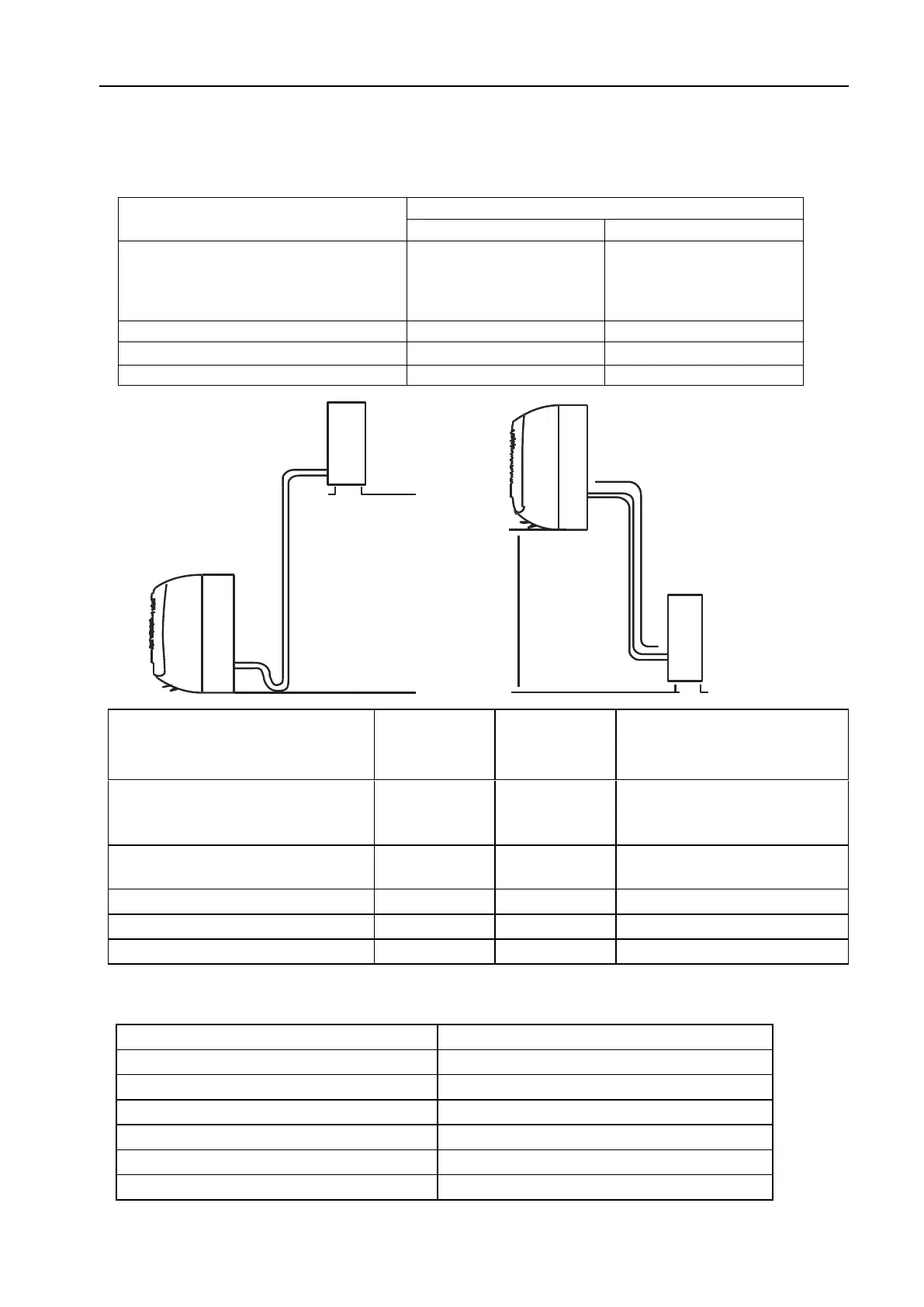

Outdoor unit
Indoor unit
Pipe length is
20 meters Max.
be less than 5m
Height should
Outdoor unit
Indoor unit
Pipe length is
20 meters Max.
be less than 5m
Height should
