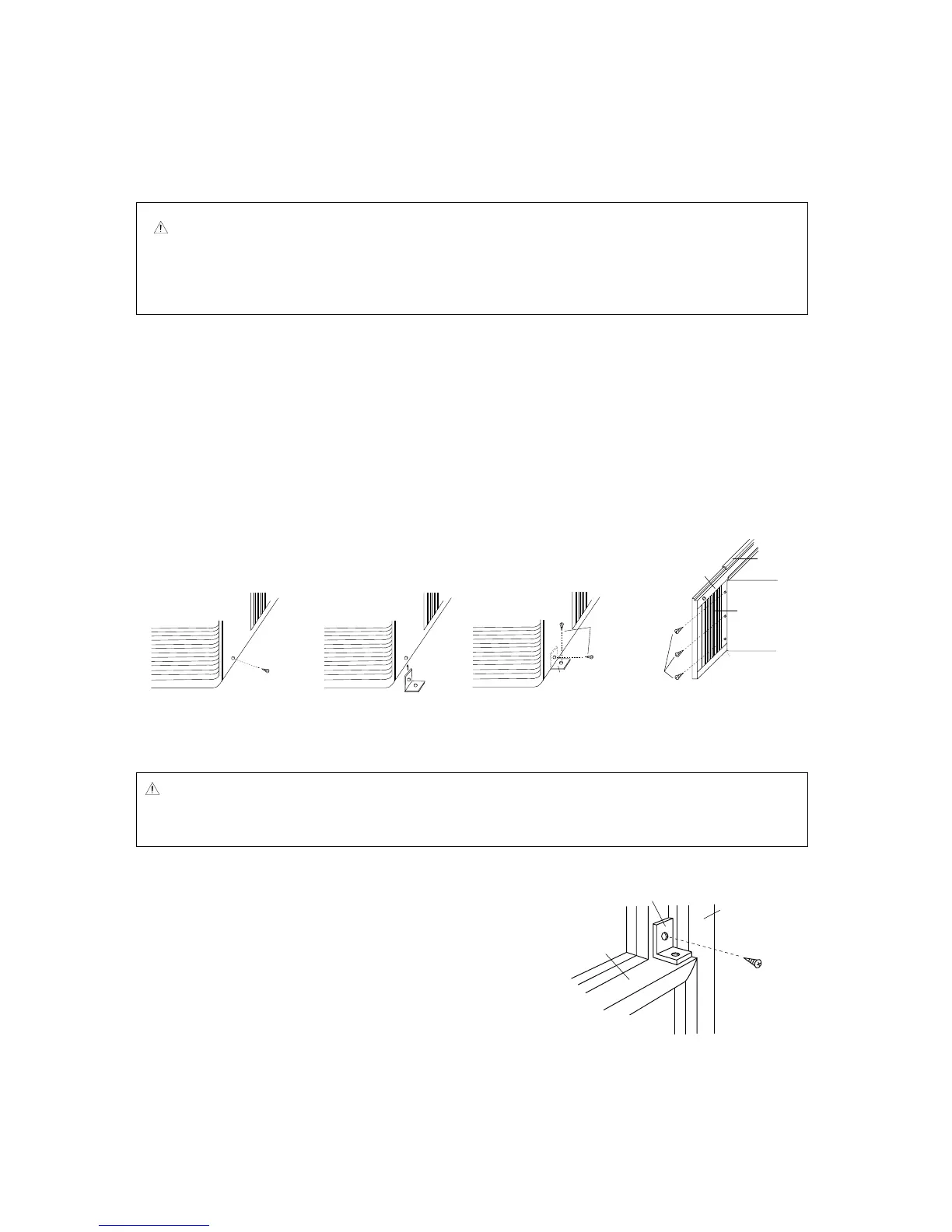

• Step 3 - Placing Unit in Window
1. Attach Sash Bracket in the left side and right side of the unit.
(Screws are ready provided in the each side as part of the Air-Conditioner for this purpose. So, at first,
please remove this screws, and re-attach Sash Bracket to the same portion with Screws (Type C) of
components for installation.)
2. Insert Window Kit Frame into the upper and bottom guides of the unit.
3. Fasten window shutter in the window kit frame with Screws (Type D) in the left side and right side of the unit.
4. Open the window and place the unit in the center of the window sill. The attached sash bracket in the unit’s
side have sharp edges. To avoid injury or accident. it is needed that you have careful when lifting the unit.
• Step 4 - Install Sash Bracket
1. Fasten Sash Bracket be attached in the unit’s side with Screw
(type C) on the window sill.(It is the same to install Sash Bracket
left side and right side.)
2. Fasten Sash Bracket with Screw (Type C) to top of indoor
window sash or directly into side of window sash or directly into
side of window frame.
This will prevent the raising of the window from the outside. If
you have a hard wood or metal window frame, a 1/8 inch pilot
hole may be needed in order to drive the screw.
6
CAUTION
1. The unit is heavy. To avoid injury or accident, it is strongly recommended that you have additional
help when lifting the unit.
2. Personal injury or property damage may result if unit falls from window.
CAUTION
Do not drill into window frame until window has been inspected to make sure drilling or screw will
not damage any locking or lifting mechanism located the frame.
