Service manual WP 895/895F, CP885/885F, CP485F

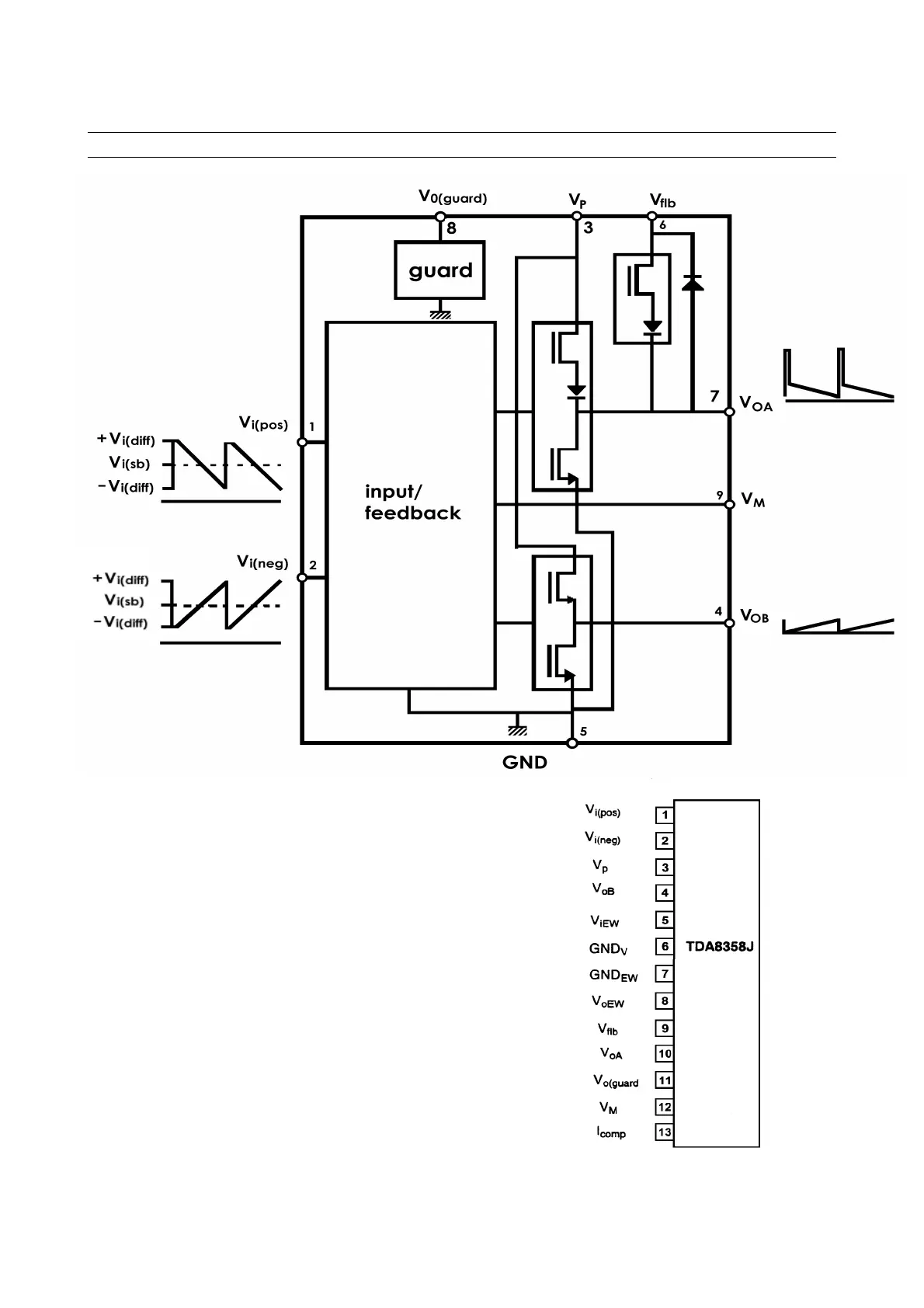

4-5-2 TDA8358J
An East-West output stage is provided that is able to sink current
from the diode modulator circuit.
Features :
- Few external components
- Highly efficient fully DC-coupled vertical output bridge circuit
- Short rise and fall time of the vertical flyback switch
- Guard circuit
- Temperature (thermal) protection
- High EMC because of common mode inputs
- East-West output stage
