EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
6-2
©
200518
Cleaning
5
ΧΦ65/65 (II) series
6.2 CLEANING RADIATOR AND INTERCOOLER
Inhalation of dust may have serious
consequences for your health.
Take the necessary precautions,
such as wearing goggles and a
facemask.

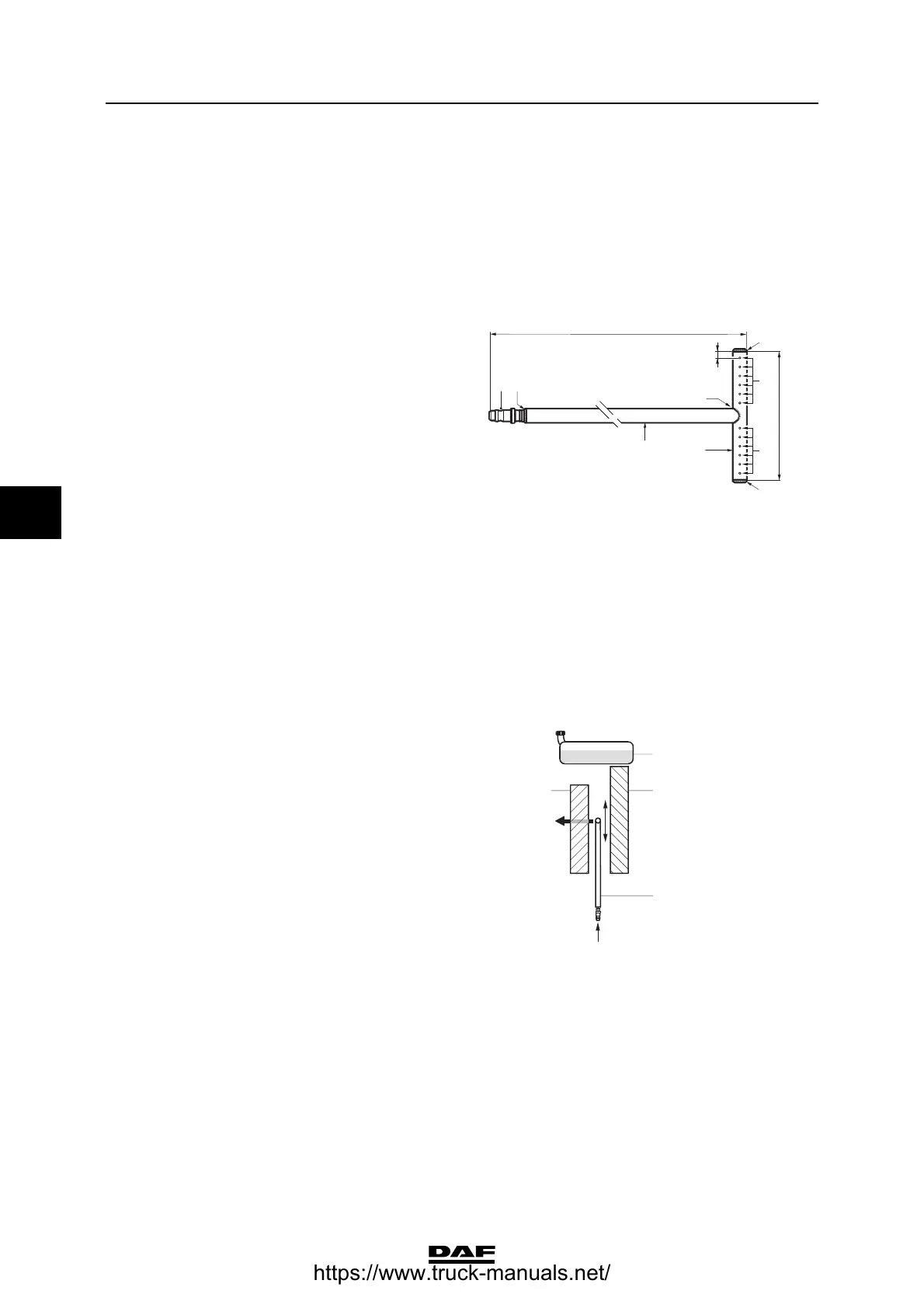

Key to drawing:
Note:
With the aid of a simple tool, the radiator and the
intercooler can be blow-cleaned.
The tool (radiator cleaner) cannot be ordered
from DAF. It should be manufactured by you
according to the drawing.
1. Remove the protective screen, if applicable,
by removing the attachment bolts.
2. Clean the protective screen, if applicable,
with a hard brush, and blow-clean with
compressed air.
3. Insert radiator cleaner (4) between
intercooler (1) and radiator (2) with the air
holes facing the intercooler (1).
4. Apply air pressure to the radiator cleaner (4)
and continue blow-cleaning the intercooler
(1) until no more dirt comes out.
}
100mm
5mm
2
1150mm
2
4
3
5
5
4
1
1
M2108
1 Solder up
2Solder
3 Quick-release coupling for air hose
4 Steel pipe, 10 mm
56 x 1.5 mm between holes, with a
centre-to-centre distance between the
holes of 7 mm, drilled on one side
1
2
3
4
M2109
P
