200518 3-13
Inspection and adjustment
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
ΧΦ65/65 (II) series
5

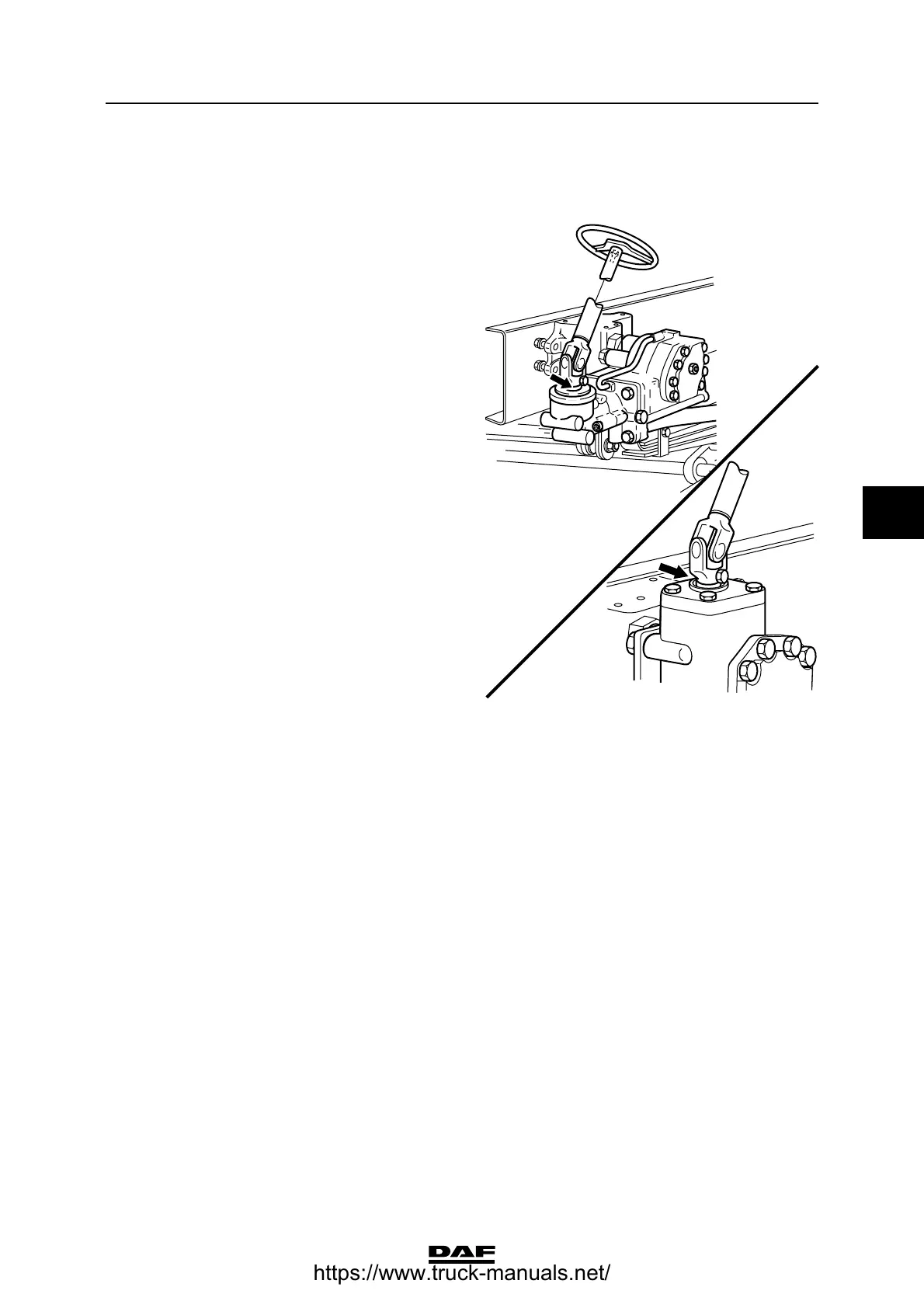

3.16 CHECKING FASTENING OF UNIVERSAL JOINT TO STEERING BOX INPUT
SHAFT
1. Check the universal joint for perceptible play.
If perceptible play is detected, the affected
part must be replaced.
2. Check whether there is any perceptible play
between the spline connection of the
universal joint and the steering box input
shaft. If perceptible play is detected, the
splines on the universal joint and those on
the input shaft must be checked for wear. If
wear is detected, the affected part must be
replaced.
3. If there is noticeable play but the parts are
not worn, the attachment bolt and nut must
be replaced. Tighten the attachment bolt and
nut to the specified torque, see "Technical
data".
G000379-2
CF65
CF65 (II)
