EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
3-20
©
200518
Inspection and adjustment
5
ΧΦ65/65 (II) series
3.24 CHECKING THE BRAKE SHOE THICKNESS AND BRAKE DISC
Version: Knorr SB 7000

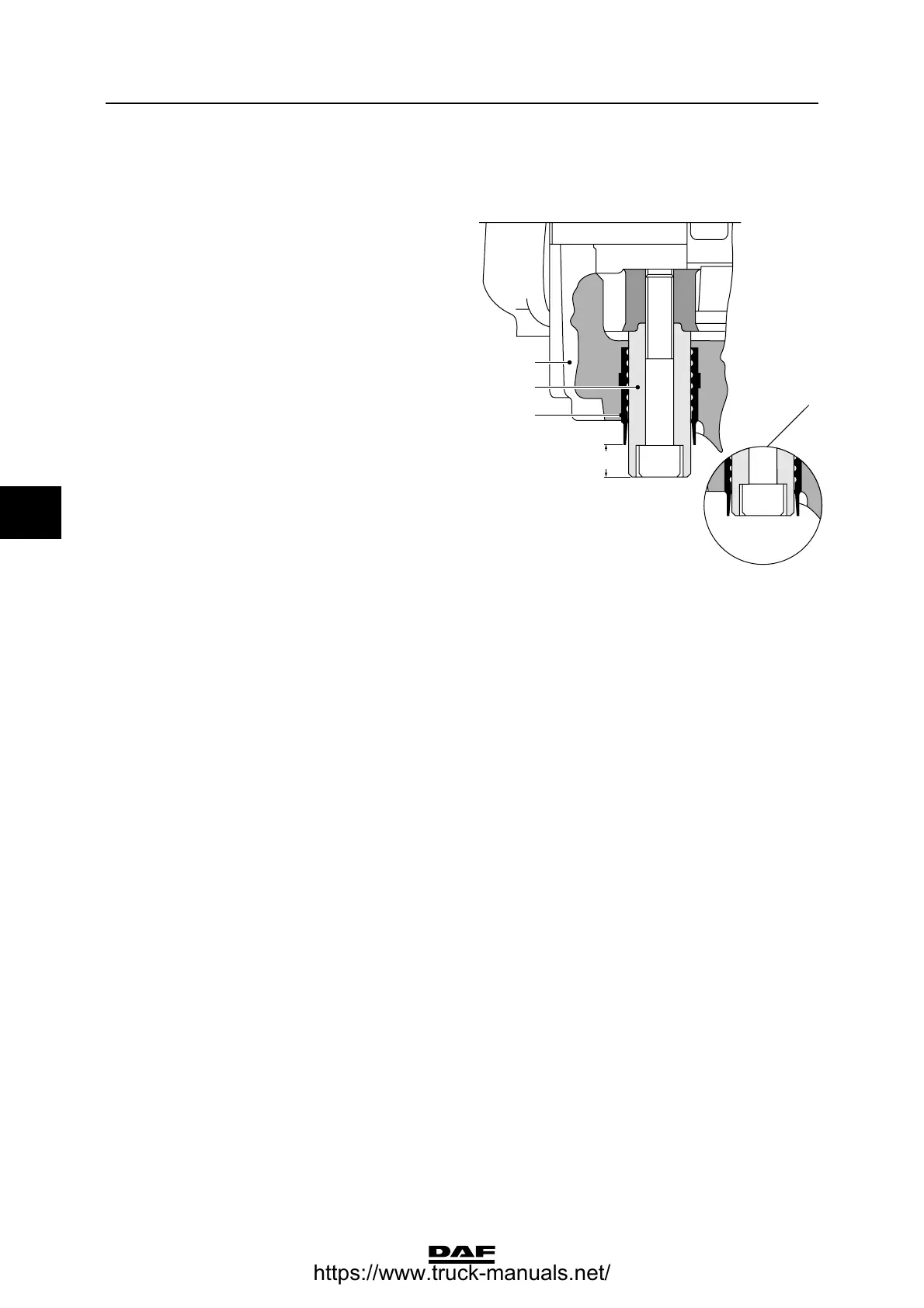

1. Check whether guide bush (4) protrudes
from guide sleeve (6) (C).
If the guide bush (4) is level with the guide
sleeve (6) (see detail A) the brake shoe and
brake disc thicknesses should be checked.
C
1
4
6
R600481
A
