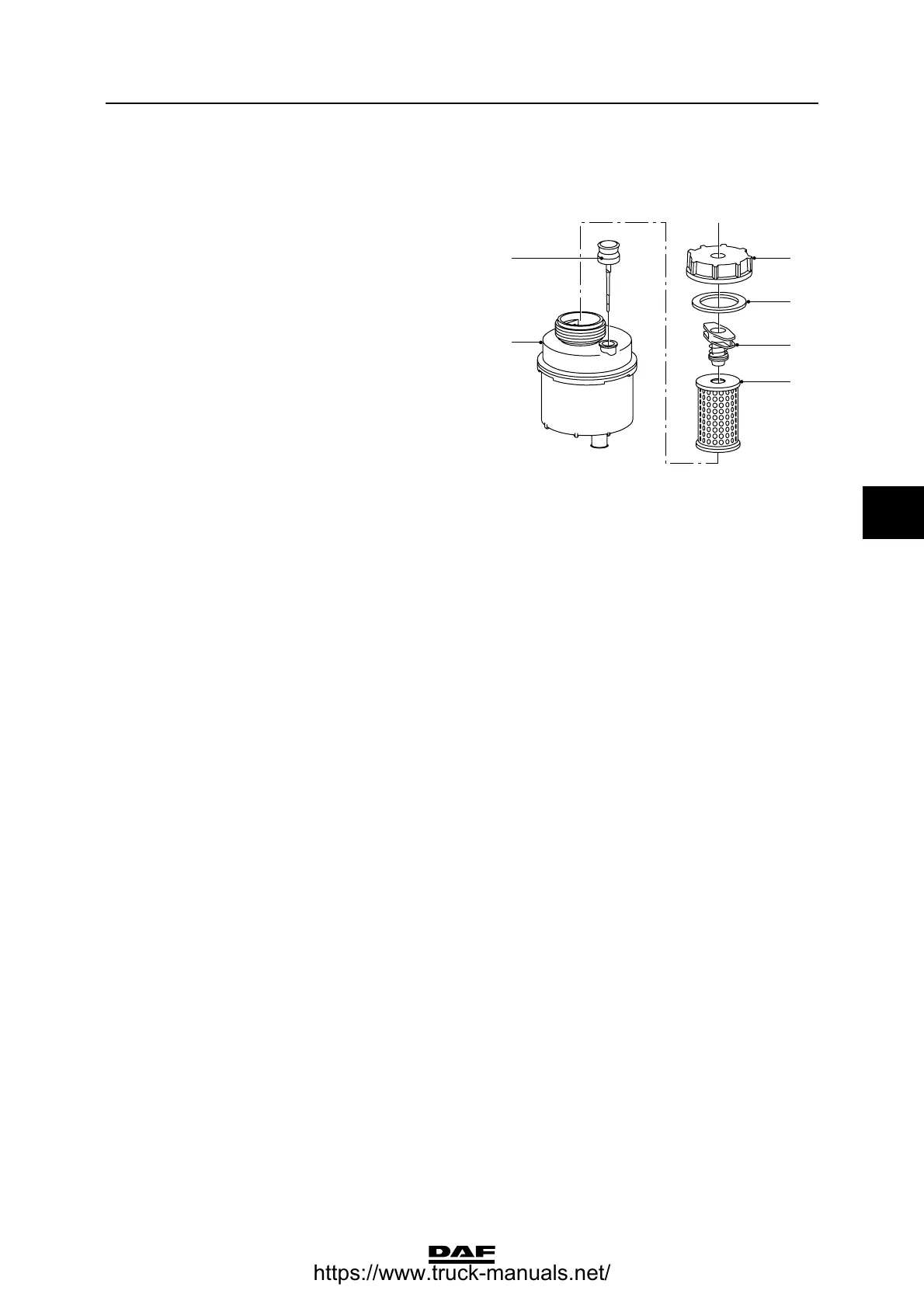

4.7 REMOVAL AND INSTALLATION, STEERING GEAR FILTER ELEMENT
Removing the steering gear filter element
1. Clean the reservoir cover, so that absolutely
no dirt can get into the reservoir.
2. Remove the cover (3).
3. Rotate the filter holder (5) a quarter turn.
Slowly remove the filter holder (5) together
with the filter element (6) from the
reservoir (1).
Note:
The filter holder and filter element must be
removed from the reservoir (1) with care so
that no dirt remains in the reservoir (1).
4. Remove the filter element (6) from the filter
holder (5).
Installing the steering gear filter element
1. Fit a new filter element (6) in the filter
holder (5).
2. Fit the filter holder (5) together with the filter
element (6) in the reservoir (1) and rotate the
filter holder (5) a quarter turn. Make sure that
the filter holder (5) engages in its locking
element.
3. Check the sealing ring (4) for damage and
replace if necessary.
4. Fit the cover (3).
5. Check the fluid level using the dipstick (2);
see chapter "Inspection and adjustment".
