EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
4-12
©
200518
Removal and installation
5
ΧΦ65/65 (II) series

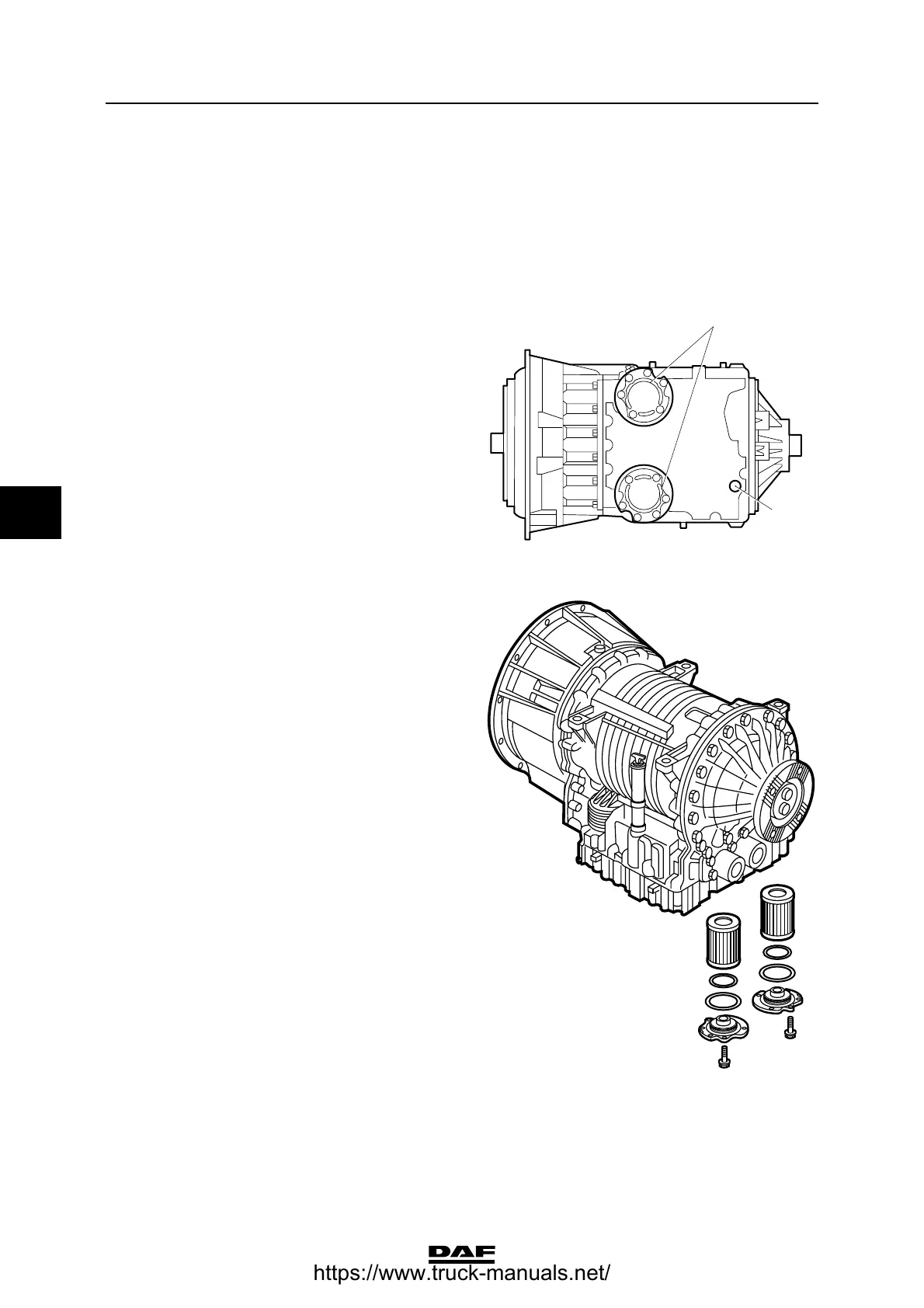

4.9 REMOVAL AND INSTALLATION, AUTOMATIC GEARBOX OIL FILTERS
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
Removing automatic gearbox oil filters
1. Remove the attachment bolts from the filter
covers (2) and remove the filter covers.
Collect any oil that is flowing out.
2. Remove the oil filters from the oil sump.
3. Remove the various O-rings from the filter
covers.
4. If a gasket is used, remove the any pieces of
the gasket left on the filter covers and the
contact surfaces.
Fitting automatic gearbox oil filters
1. Lightly lubricate the new O-rings with clean
gearbox oil and fit the various O-rings to the
filter covers.
Note:
Compare the new O-rings to the old O-rings
to ensure that the correct O-rings are used.
2. If a gasket is used, fit a new gasket to the
filter cover.
3. Lightly lubricate the rubber inner ring of the
oil filters with clean gearbox oil and fit the oil
filters to the filter covers.
4. Fit the filter covers together with the oil filters
to the gearbox and tighten the attachment
bolts to the specified torque, see main group
"Technical data".
5. Check the oil level, see chapter "Inspection
and adjustment".
}
V300371
2
1
W 3 03 103
