3 Installation
3.1 Installation Preparation
●
This section introduces basic requirements for selecting and constructing the foundation. For
details on installing the Barrier, see the construction guide.
●
The foundation must be constructed before the Barrier is installed.
Selecting Construction Site
The center of the foundation should be more than 300 mm (11.81'') away from the road side. The
barrier arm can open at a 90° angle vertical to the ground.

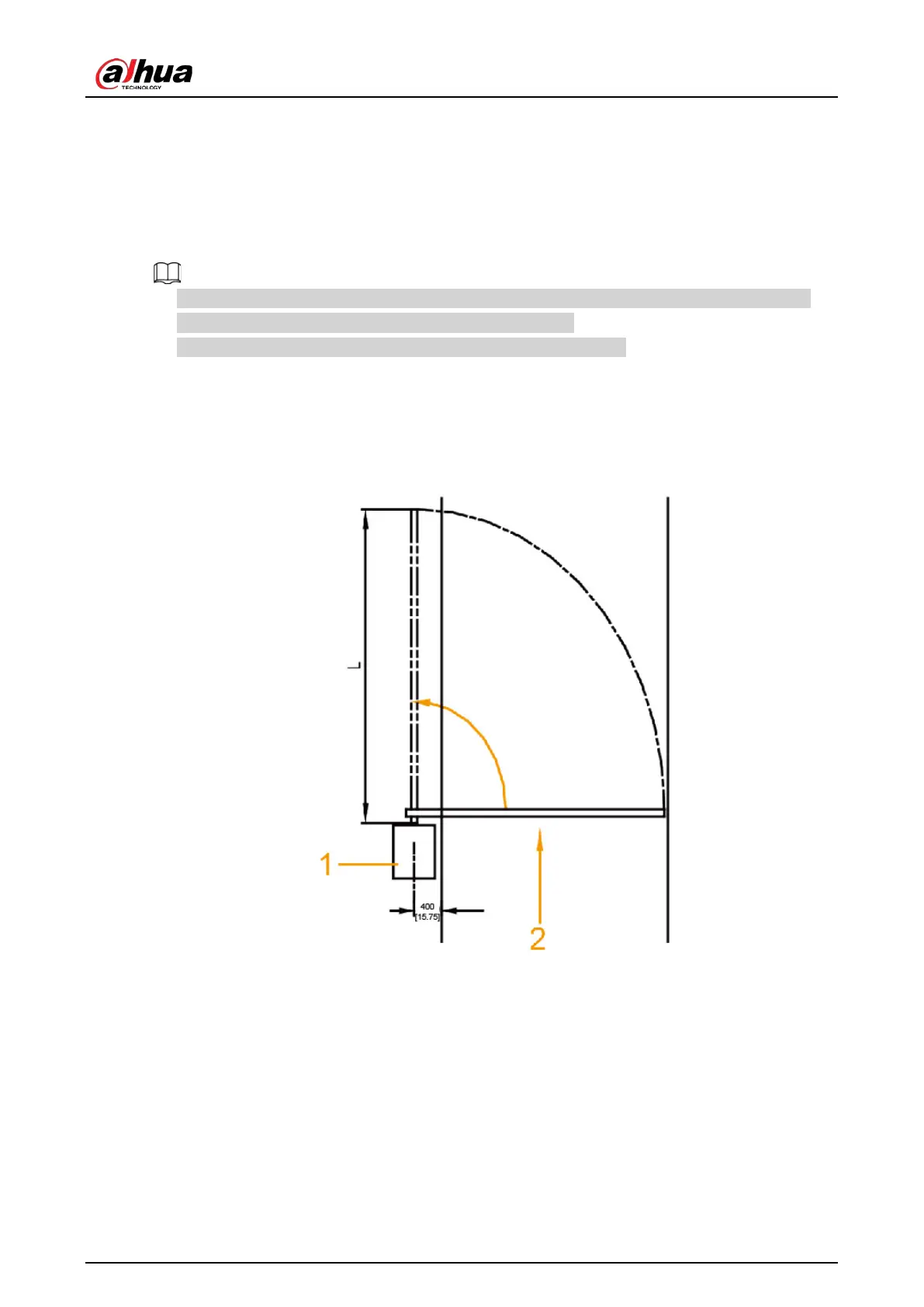

Figure 3-1 Installation site of foundation (mm [inch])
●
1: Barrier (installed on the foundation).
●
2: Vehicle movement direction.
