Parameter Description
+24V
●
+24 V: Common signal port.
VRV
Angle sensor ports.
VRG
VRS
PE
Drive motor ports.
U
V
W
L
220 VAC power supply ports for the barrier inverter.
N
PE
3.3.2 Remote Matching Description

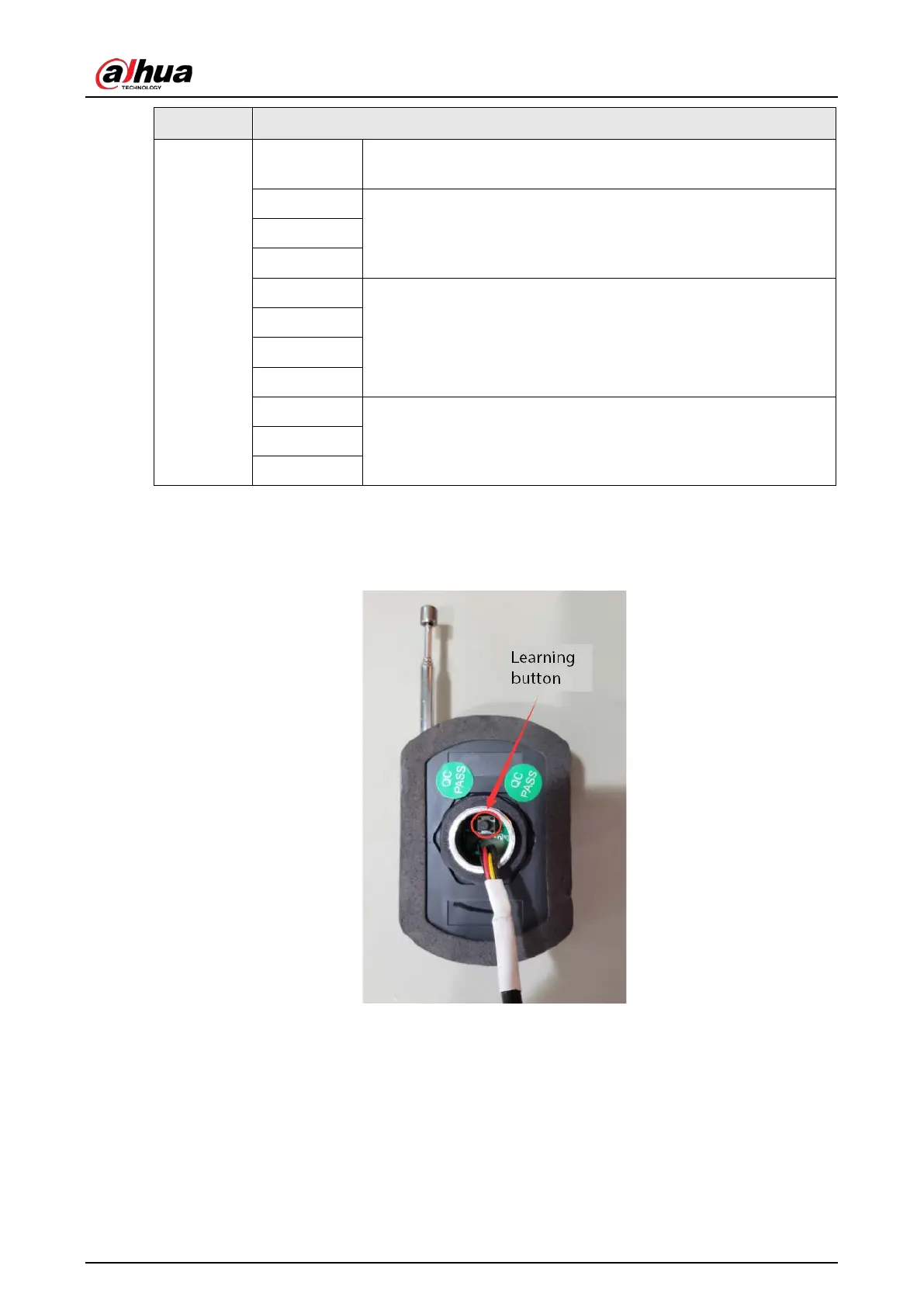

Figure 3-9 Receiver
●
Match the remote information
◇
Successful matching: Press and hold the learning button on the receiver for 2 s, press the
remote handle at least twice and then you can press keys on the remote to control the arm.
◇
Failed matching: The remote handle is not pressed a while after pressing the learning button
on the receiver, and the receiver indicator does not flash 3 times immediately, but flashes 7
times after about 8 seconds.
●
Clear the remote information: Press and hold the learning button on the receiver for more than 3
seconds, and then the remote cannot control the arm. This means the matching information has
