User's Manual
14
3 The Grand Tour
This chapter introduces various components of the Device, remote control and mouse operations.
Front Panel
3.1.1 DHI-XVR5108HS-4KL/DHI-XVR5116H-4KL/DHI-XVR5116HS-
S2/DHI-XVR5116H-S2/DHI-XVR5216AN-S2

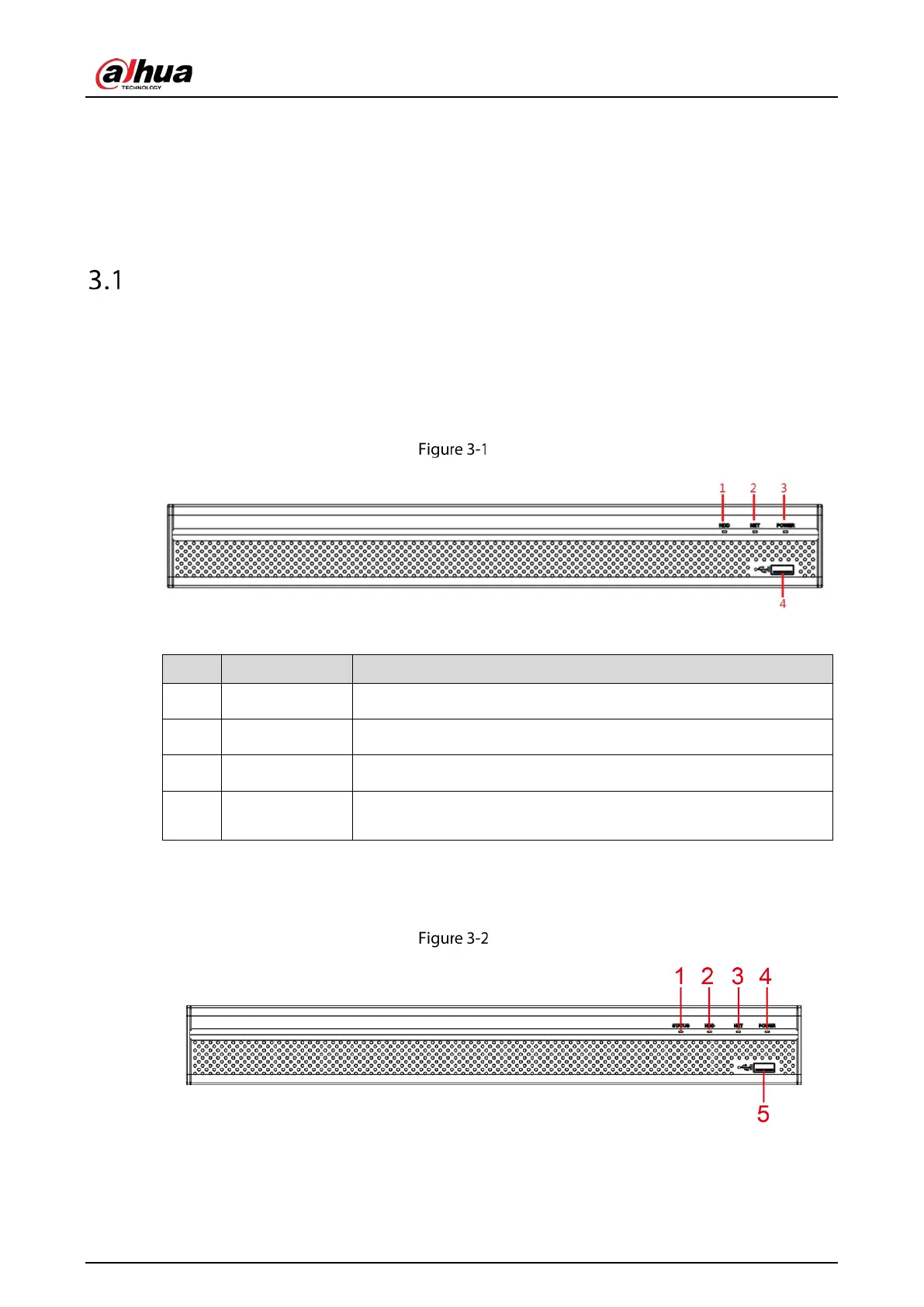

Front panel
Table 3-1 Front panel description
1 HDD Glows blue when HDD status is abnormal.
2 NET Glows blue when network status is abnormal.
3 POWER Glows blue when the power is connected properly.
4 USB port
Connects to peripheral devices such as USB storage device,
keyboard, and mouse.
3.1.2 DHI-XVR5216AN-4KL/DHI-XVR5232AN-S2
Front panel
