Dahua HD IR Bullet Network Camera Quick Start Guide

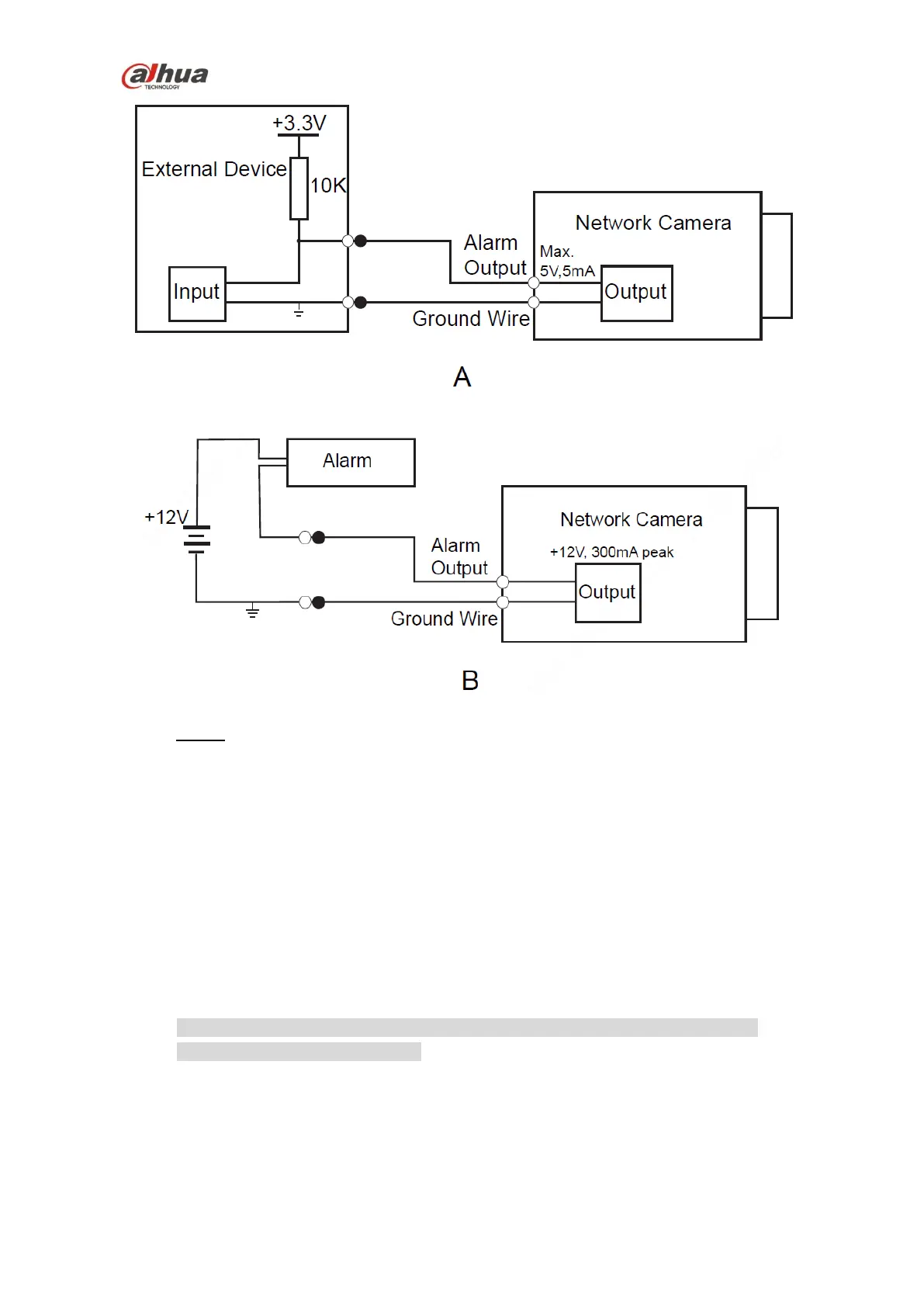

Figure 2-4
Figure 2-5
Step 3 Log in WEB interface, make corresponding settings upon alarm input and
output on the interface of alarm setup.
Alarm input of WEB is corresponding to the alarm input of I/O port cable. It is to set
corresponding NO, NC input according to the high and low level signal generated
when alarm happens for alarm input device.
Set alarm output on the WEB, alarm output is corresponding to the alarm output
end, which is the alarm output port of the I/O port cable.
Install Waterproof Connector (Optional)
The installation process of waterproof connector for network port is shown in 错误!未找到引用
源。.
Note
It needs to implement the operation when the device is equipped with waterproof
connector and it is used outdoors.
