Dahua HD IR Bullet Network Camera Quick Start Guide
12

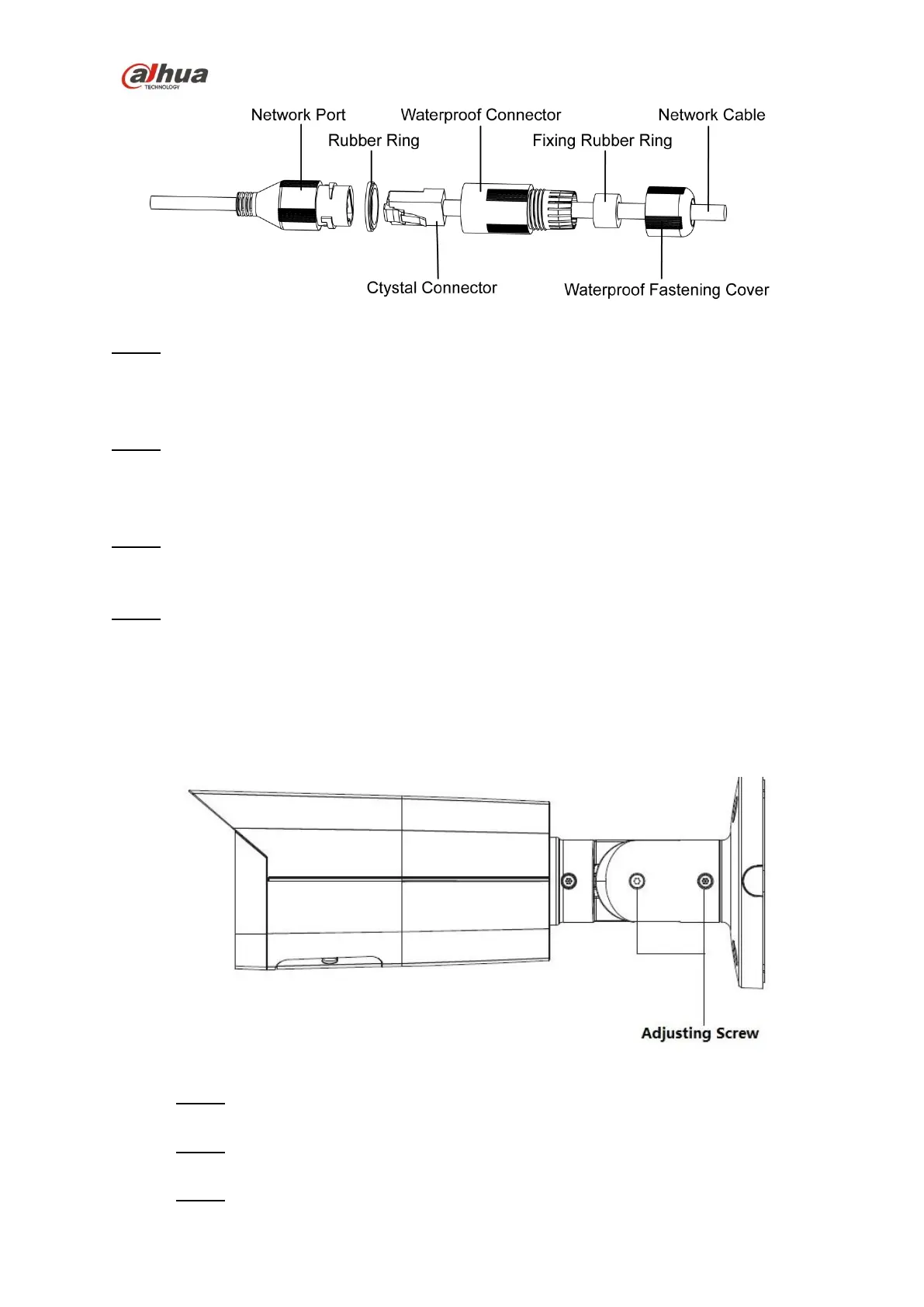

Figure 2-6
Step 1
Keep the convex groove outward and install the rubber ring into the network port, keep the
smaller hole of the rubber ring outward and install the fixing rubber ring into the main body of the
waterproof connector.
Step 2
Pull the network cable without crystal head through main body of waterproof connector, fixing
rubber ring and waterproof locking cover, make the crystal head of network cable, and then insert
it into the network cable.
Step 3
Put the main body of waterproof connector on the network port and rotate it clockwise to lock the
network port and waterproof connector firmly.
Step 4
Put the waterproof locking cover on the main body of waterproof connector and rotate it
clockwise to lock the waterproof connector and waterproof locking cover firmly.
2.4 Adjust Device Angle
Figure 2-7
Step 1 Use inner hex screwdriver to loosen the adjusting screw which is shown in the
Figure above.
Step 2 Adjust the device in all possible direction, set monitoring direction according to
the application requirement.
Step 3 Use inner hex screwdriver to tighten the adjusting screw.
