Explosion-proof Integrated PTZ & Camera-Instruction Manual
2.4. On-spot installation and fixing
Since Ex product is very special, adjust with power indoors before installation in the intended
locations if available.
2.4.1. Instruction for installation
See Figure 2.3.1.2 for distribution of installations holes under the camera, take
DH-EPC
□
-PTZ-IR
as example: pass the reserved cable of the camera through the cable in the support,
the cable connected from camera to junction box could be protected by explosion-proof flexible
pipes (or armored cable); cable from junction box to control room could be protected by metal
pipes or by armored cables, see Figure 2.4.1
.

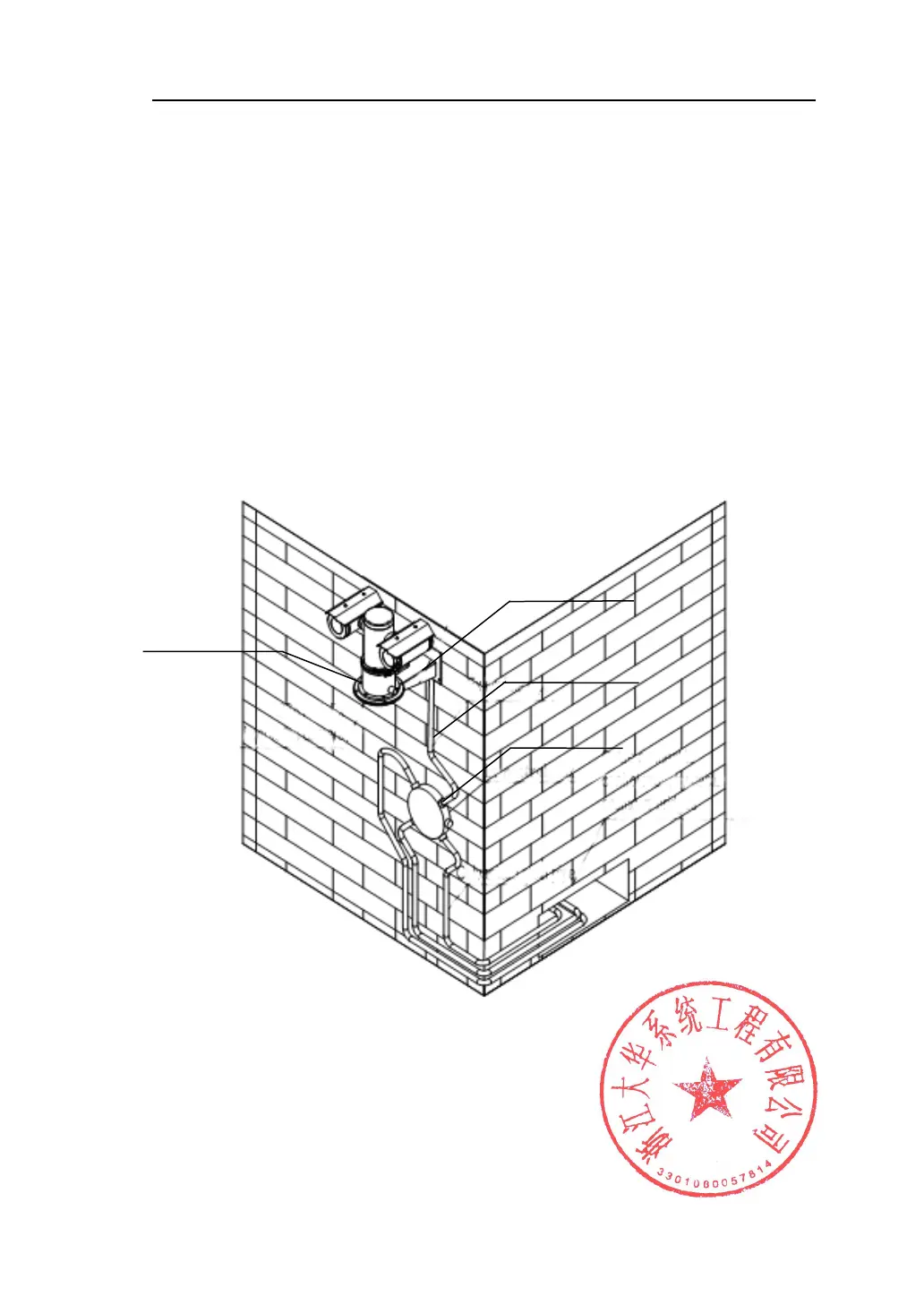

Figure 2.4.1 installation of camera
