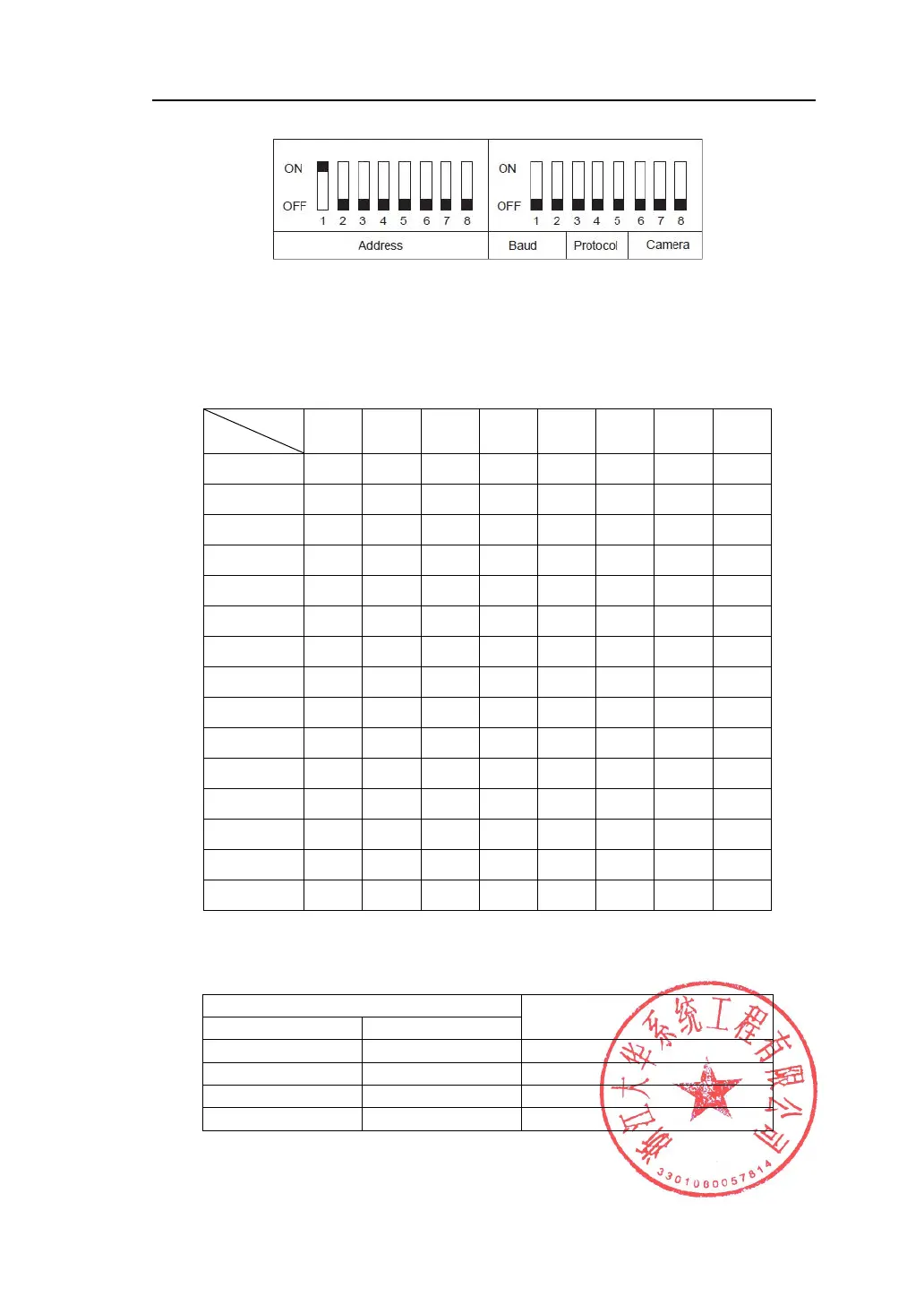

Figure 2.5.3.1 Toggle switch
Address setting of toggle switch, total 255 addresses in maximum by binary system, see Table
2.5.3.1 for address setting from 1 to 65.
Table 2.5.3.1 Address setting
Digit
Address
1
2
3
4
5
6
7
8
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
4
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
5
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
...
...
...
...
...
...
124
OFF
OFF
ON
ON
ON
ON
ON
OFF
125
ON
OFF
ON
ON
ON
ON
ON
OFF
126
OFF
ON
ON
ON
ON
ON
ON
OFF
127
ON
ON
ON
ON
ON
ON
ON
OFF
128
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
...
...
255
ON
ON
ON
ON
ON
ON
ON
ON
Baud rate setting: toggle switch SW2, digit 1-2, see Table 2.5.3.2.
Table 2.5.3.2 Baud rate setting
Digits of SW2
Baud rate (bps)
1
2
OFF
OFF
2400
ON
OFF
4800
OFF
ON
9600
ON
ON
19200
