DH-PFM881 User Manual All Right Reserved
Page 18

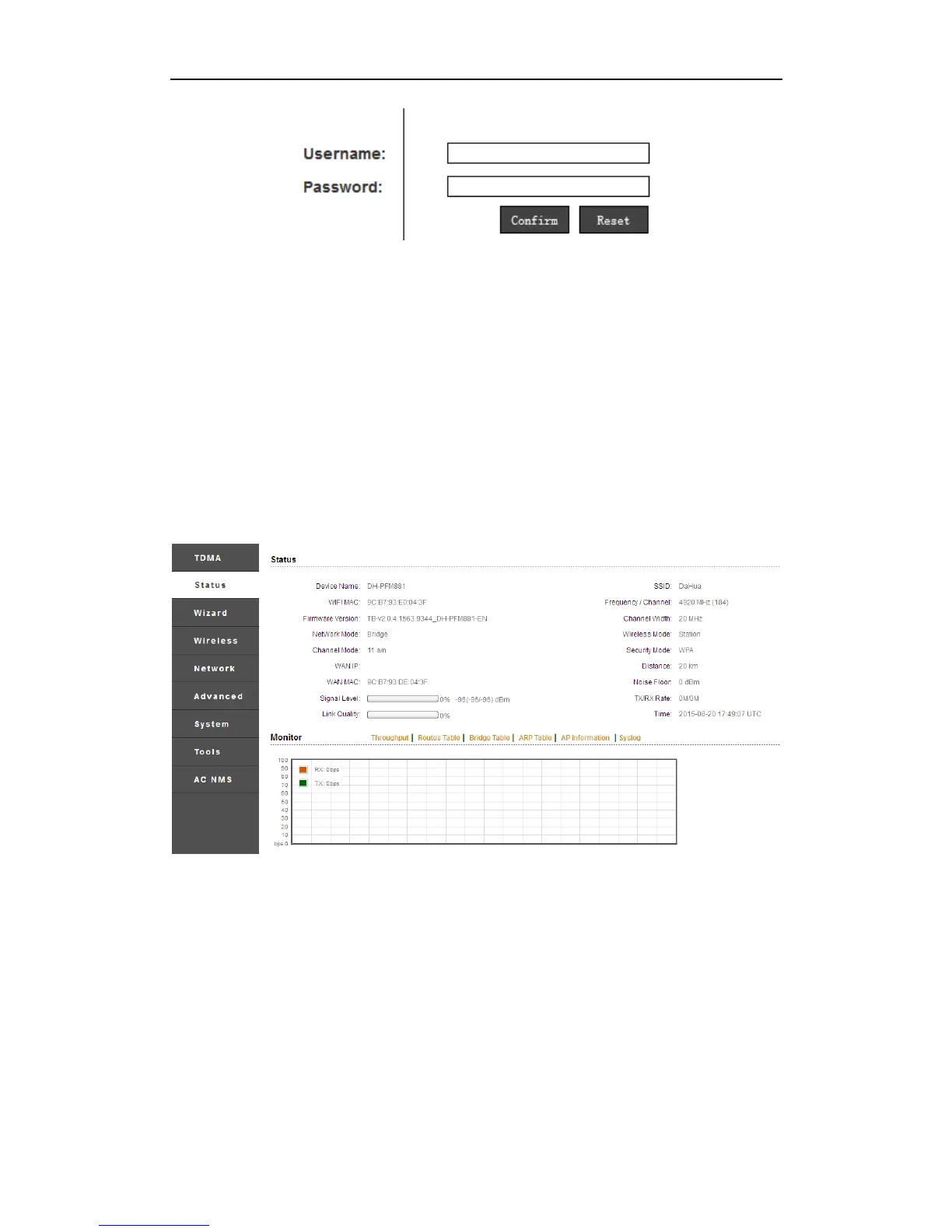

Figure 7 DH-PFM881 Log in interface
3.2 Quick Configuration of the Device
The users will see how to configure the DH-PFM881 device quickly in this chapter.
1、 The first page shown after log in is the Status page, which indicates the
working status, current setting, software version and other information of the
DH-PFM881 device. User can switch to other pages by clicking the left main
menus in Figure 8.
Figure 8 Status Page
2、Click Wizard main menu, the users can configure the device quickly, including
Network and Wireless settings and so on. It is Wizard-Network page as shown
in Figure 9, and this page helps to set the basic network parameters. The default
mode is Bridge mode, and the default LAN IP address is 192.168.1.36. If the user
wants to configure the device to Router mode, please click Network in the main
menu.
