2 SPEED DOME INSTALLATION
2.1 Check Accessories
Before installation, please check the accessories one by one according to the packing list.
Please make sure all the components listed are included.
2.2 Open Device

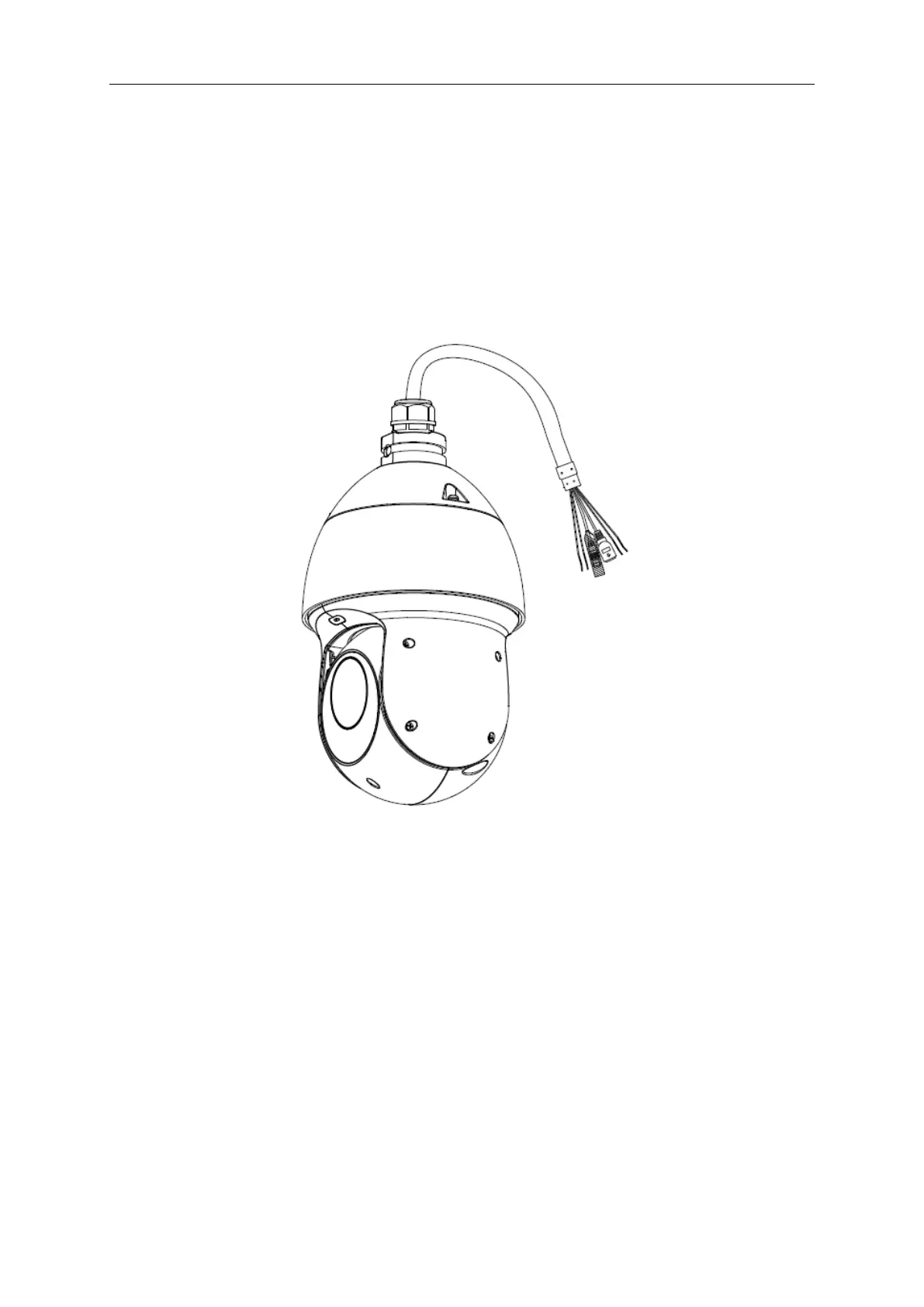

Open the package and then take out the device. See Figure 2-1.
Figure 2-1
2.3 DIP Switch Setup
2.3.1 DIP Switch Location and Function
The corresponding functions of dip switch for analog speed dome and HDCVI speed dome are
different, which will be respectively introduced below.
2.3.1.1 Analog Speed Dome
Open the rear cover and you can see there is a dial switch on the PTZ mainboard which you can
use to set the speed dome address, baud rate and parity etc. See Figure 2-2 for the location of
dial switch.
