Dahua DH-SD49225I-HC-S3 User Manual

12
3 SPEED DOME INSTALLATION
It is to take wall mount as an example to introduce the mounting components and mounting
modes of the speed dome.
3.1 Mounting Component and Dimension

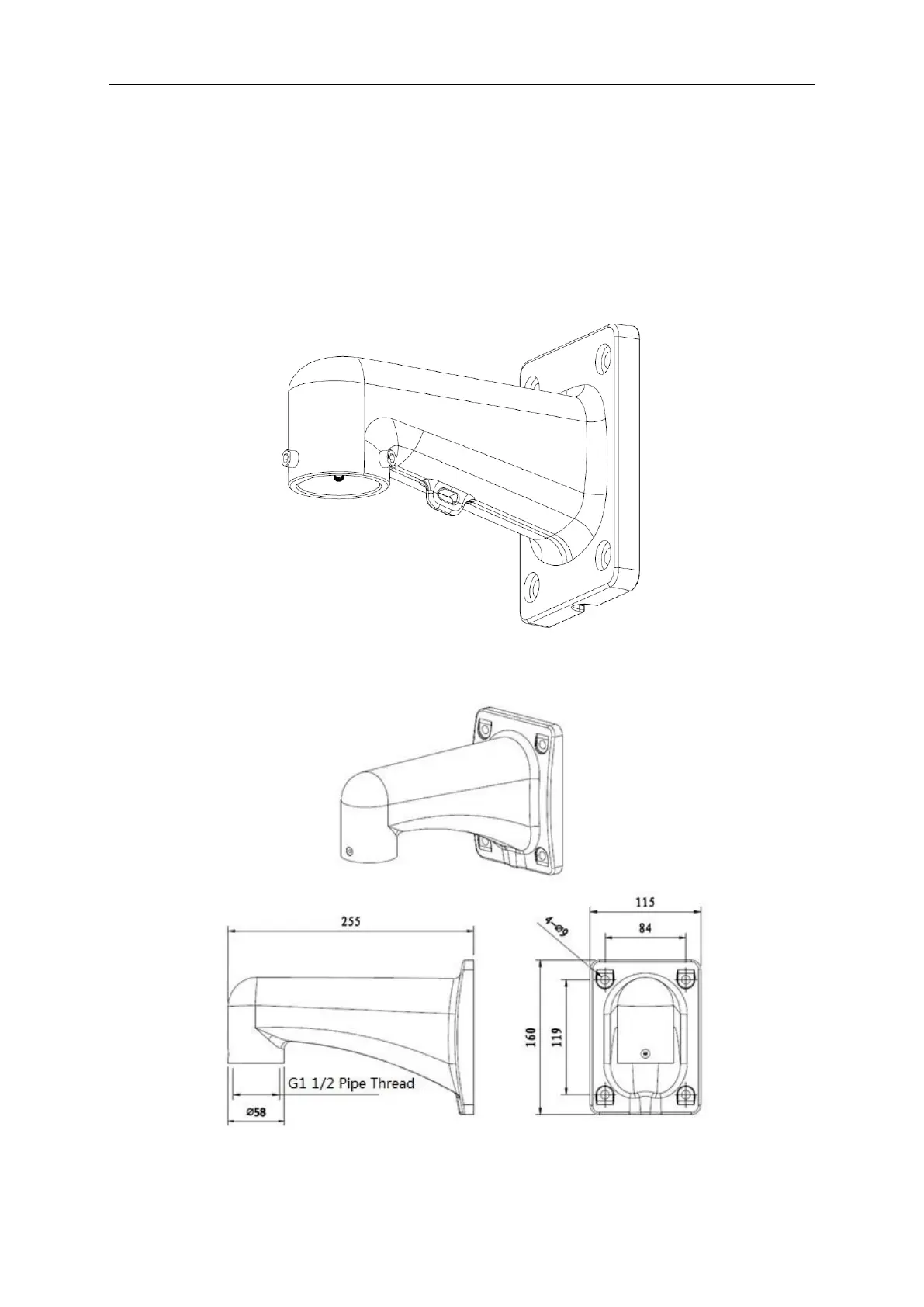

The wall-mounted bracket is shown in Figure 3-1, refer to Figure 3-2 for its dimension, and
please refer to Figure 3-3 for the dimension of quick mount connector.
Figure 3-1
Figure 3-2
