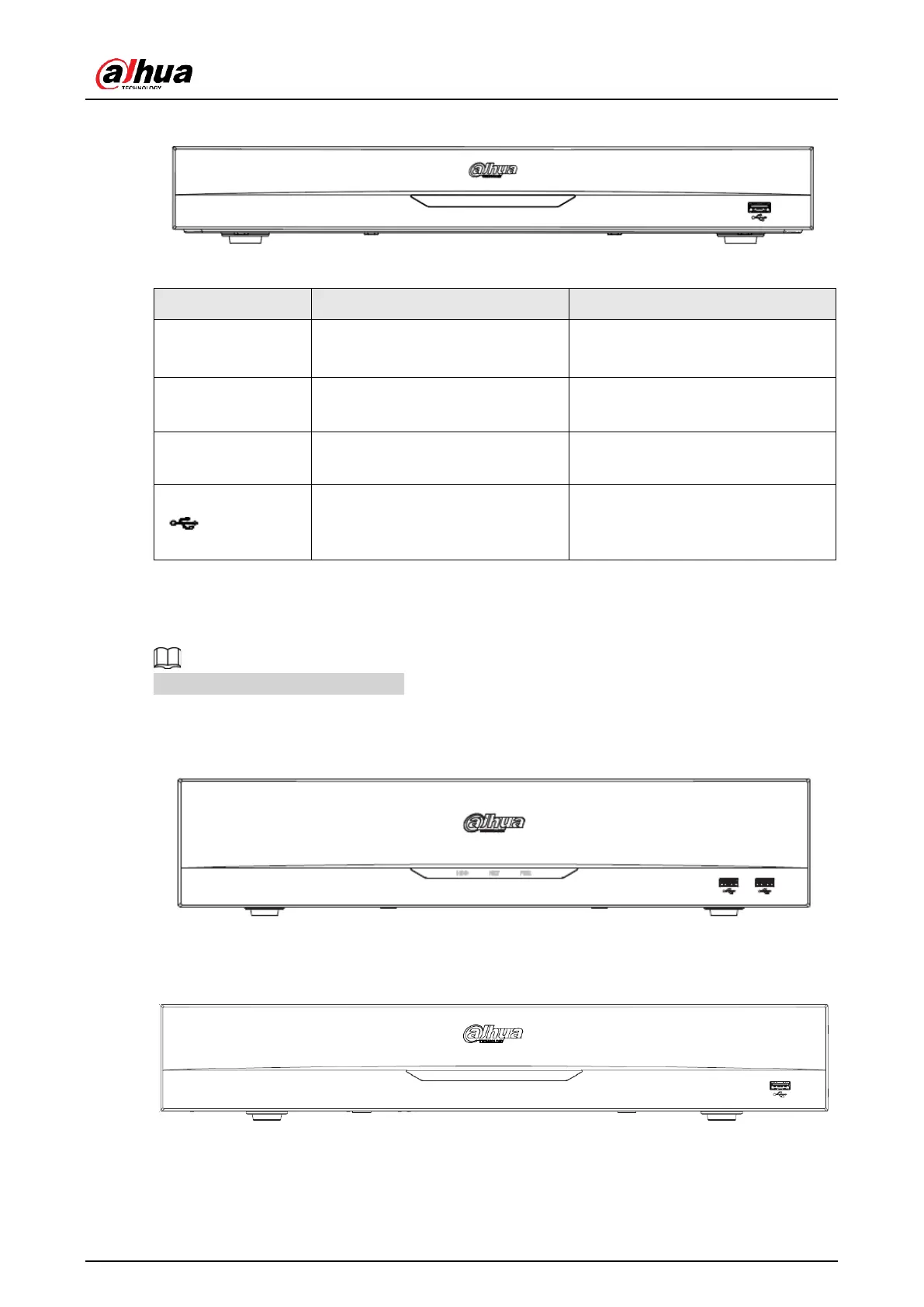

Figure 2-16 Front panel
Table 2-6 Icons
Icon
Name
Function
HDD
HDD status indicator
light
The blue light is on when the
HDD malfunctions.
NET
Network status indicator light
The blue light is on when the
network connection is abnormal.
PWR
Power status indicator light
The blue light is on when the
power connection is OK.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner
and more.
2.1.4 N84B3P/N84B3N/N84B5N
The figures are for reference only.
The N84B3P/N84B3N/N84B5N series front panel is shown as below.
Figure 2-20 Front panel
The N84B3P/N84B3N/N84B5N front panel is shown as below.
Figure 2-21 Front panel
The N84B3P/N84B3N/N84B5N front panel is shown as below.
