1 Structure
The VTHs have the same front panel but differ in the ports in the rear panel. One supports 2-wire and
the other does not.

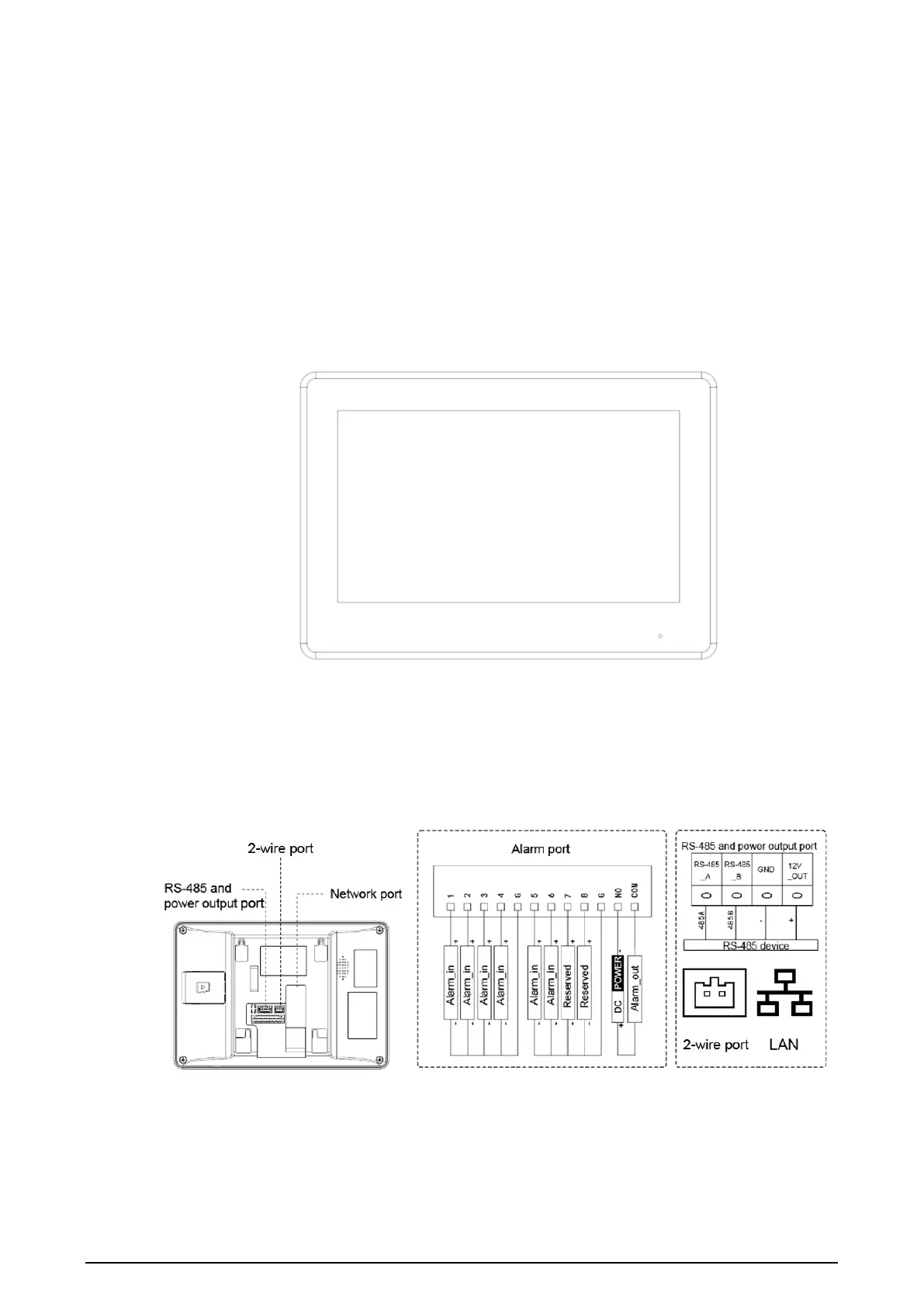

Front Panel 1.1
Front panel Figure 1-1
Rear Panel (2-wire) 1.2
Rear panel for 2-wire model Figure 1-2
