16
2.2.2 Installation Steps

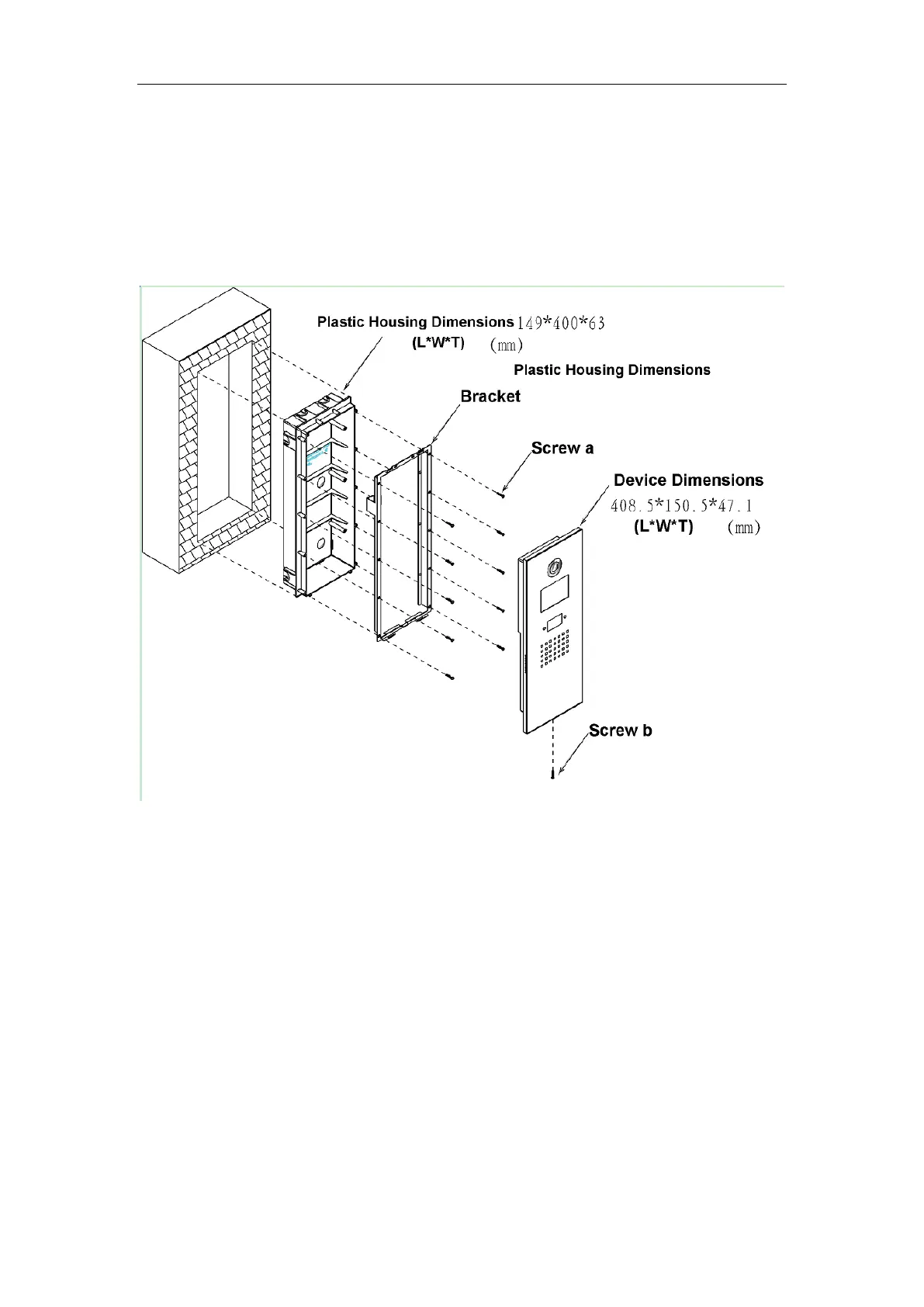

Step 1. Embed plastic housing into wall.
Step 2. Fix bracket on the housing with screw a.
Step 3. Fix device on the bracket with screw b.
Figure 2- 2
2.2.3 Wiring
Please refer to Ch 1.2.2.2.
