Dahua VTO65 Series - 1 Structure

1
1 Structure
The door station (VTO) has six models. Different models have different front panels but the
same rear panel.

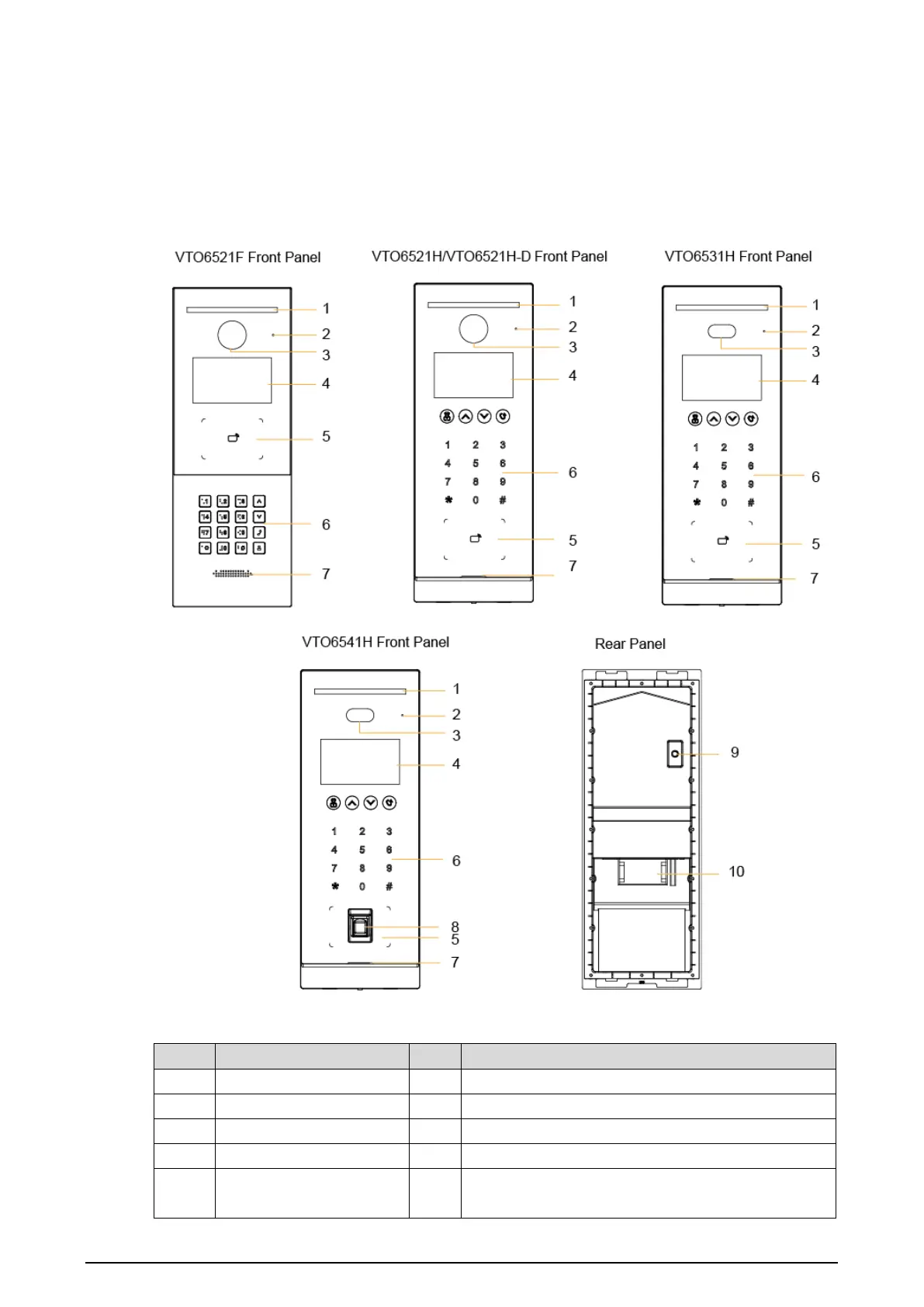

Dimensions (mm [inch]) Figure 1-1
Table 1-1 Component description
No.
Description
No.
Description
1
White illuminator
6
Keyboard
2
MIC
7
Loudspeaker
3
Camera
8
Fingerprint sensor
4
Display
9
Tamper button
5
Card swiping area
10
Function ports (connected to locks, access
controllers, alarm in/out devices)
