4

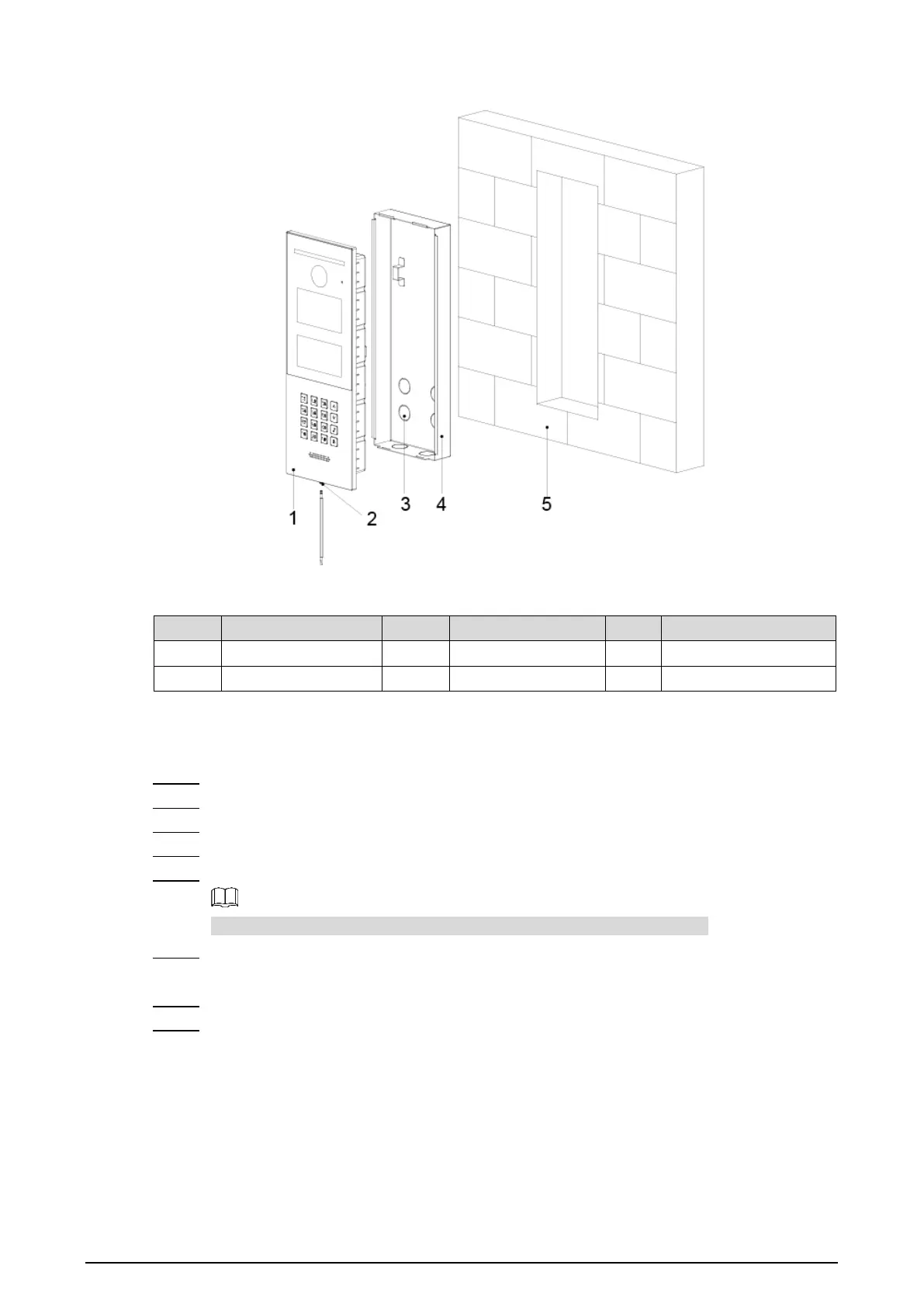

Installation Figure 3-2
Table 3-1 Component description
Installation Procedure
Cut an opening in the wall according to dimensions of the mounting plate. Step 1
Detach hole covers according to cable entry positions. Step 2
Put the mounting plate in the opening in the wall. Step 3
Fix the mounting plate with cement or sealant. Step 4
Connect cables. Refer to "2 Cable Connection." Step 5
Before connecting cables, make sure that the power is disconnected.
Put the door station into the mounting plate, and then place the hook on the back of the Step 6
door station into the installation slot of the mounting plate.
Tighten screws at the bottom of the door station. Step 7
Apply silicone sealant to gaps between the door station and mounting plate. Step 8
The installation is completed.
