OMM 1130 5

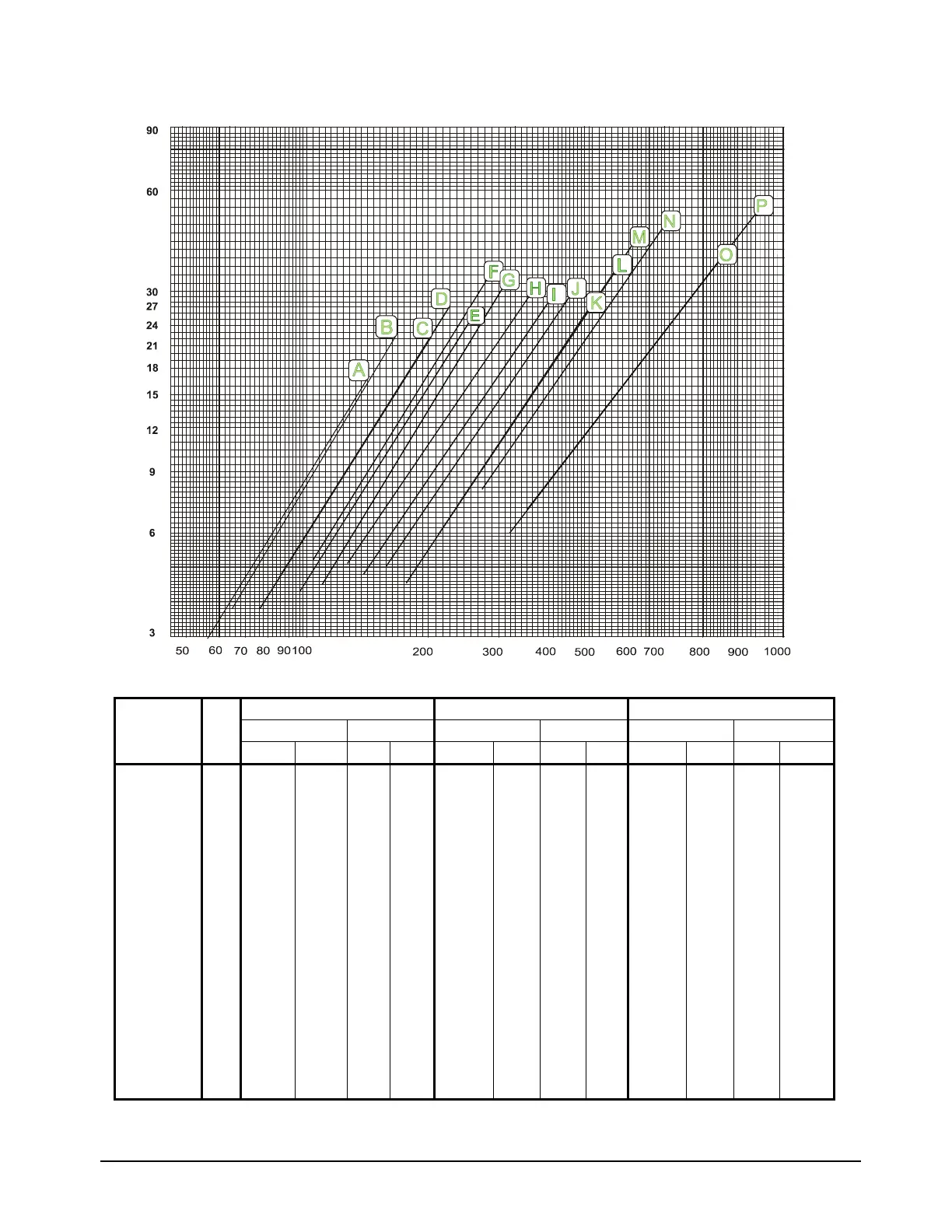

Figure 2, Condenser Pressure Drop, WGZ030D – WGZ200D
Min. Flow & PD Nom. Flow & PD Max. Flow & PD
IP SI IP SI IP SI
Unit Model
Ref
#
GPM Ft. L/S kPa GPM Ft. L/S kPa GPM Ft. L/S kPa
WGZ030D
A
56.1 2.4 3.5 7.2 89.7 6.3 5.7 18.8 149.5 17.4 9.4 52.0
WGZ035D
B
64.9 3.4 4.1 10.2 103.8 8.6 6.5 25.7 173.0 23.9 10.9 71.4
WGZ040D
C
76.3 2.7 4.8 8.1 122.1 6.9 7.7 20.6 203.5 19.3 12.8 57.7
WGZ045D
D
85.3 3.6 5.4 10.8 136.5 9.2 8.6 27.5 227.5 25.7 14.4 76.8
WGZ050D
E
96.4 2.9 6.1 8.7 154.2 7.5 9.7 22.4 257.0 20.7 16.2 61.9
WGZ055D
F
105.8 3.8 6.7 11.4 169.2 9.7 10.7 29.0 282.0 26.8 17.8 80.1
WGZ060D
G
113.4 4.5 7.2 13.5 181.5 11.6 11.5 34.7 302.5 32.3 19.1 96.5
WGZ070D
H
132.8 4.1 8.4 12.3 212.4 10.4 13.4 31.1 354.0 29.0 22.3 86.7
WGZ080D
I
146.8 3.7 9.3 11.1 234.9 9.5 14.8 28.4 391.5 26.5 24.7 79.2
WGZ090D
J
165.0 3.4 10.4 10.2 264 8.8 16.7 26.3 440.0 24.5 27.8 73.2
WGZ100D
K
183.4 3.4 11.6 10.2 293.4 8.8 18.5 26.3 489.0 24.4 30.9 72.9
WGZ115D
L
211.7 4.8 13.4 14.3 338.7 12.3 21.4 36.8 564.5 34.1 35.6 101.9
WGZ130D
M
235.1 6.1 14.8 18.2 376.2 15.5 23.7 46.3 627.0 43.1 39.6 128.8
WGZ150D
N
274.9 6.2 17.3 18.5 439.8 15.8 27.7 47.2 733.0 43.8 46.2 130.9
WGZ170D
O
317.4 5.5 20.0 16.4 507.9 14.0 32.0 41.8 846.5 38.9 53.4 116.3
WGZ200D
P
352.7 7.4 22.3 22.1 564.3 18.8 35.6 56.2 940.5 52.3 59.3 156.3
Pressure Drop (ft of water)
Flow Rate
(
GPM
)
