Daikin 2AMX40G3V1B User Manual

Field Settings SiBE121123_A
229 Trial Operation and Field Settings
Duct Connected
Type


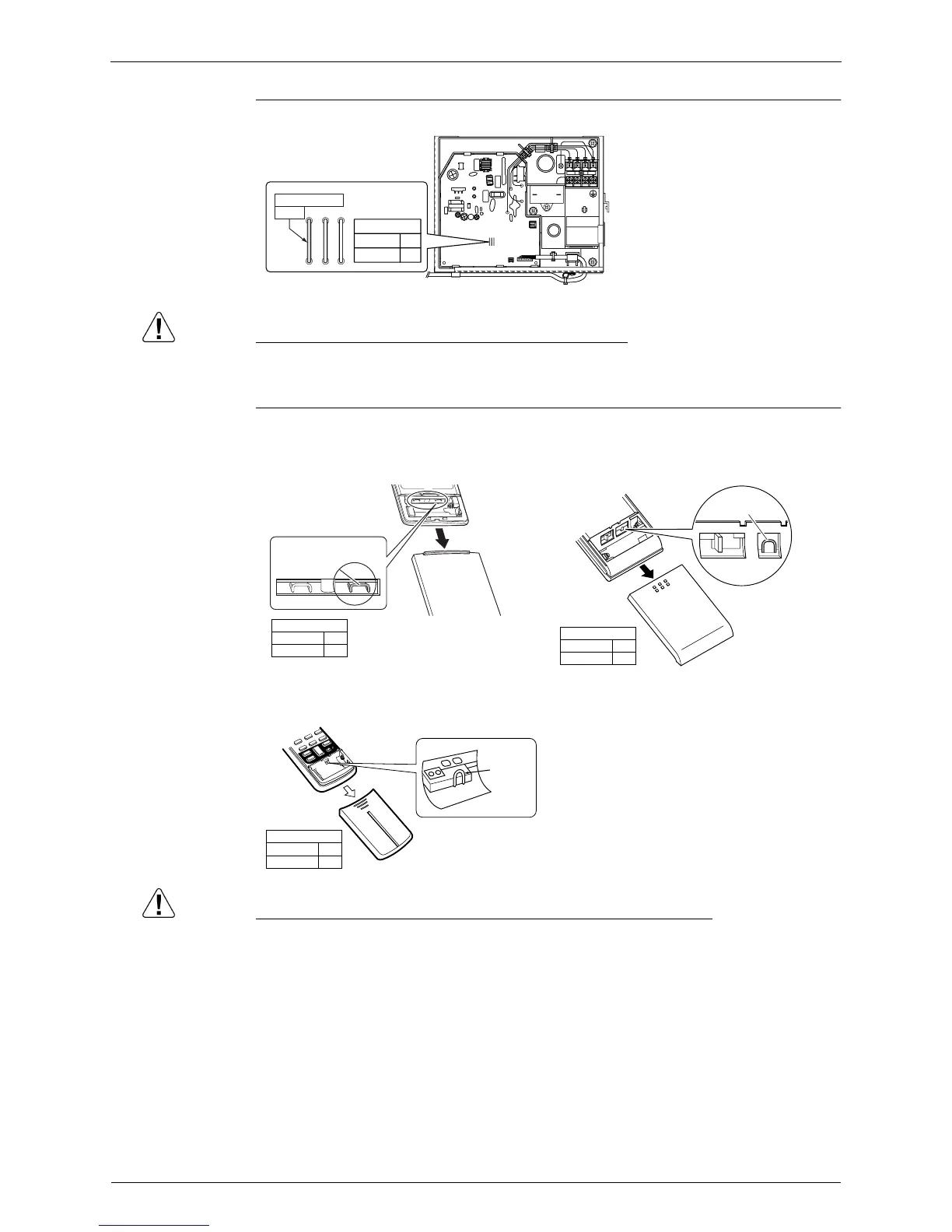

Cut the jumper JA on PCB.
Caution Replace the PCB if you accidentally cut a wrong jumper.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
Wireless Remote
Controller
(1) Remove the cover and take it off.
(2) Cut the address setting jumper.
Caution Replace the remote controller if you accidentally cut a wrong jumper.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
1 23
(R17876)
ADDRESS : JA
EXIST
CUT
1
2
A D D R E S S
JB
JC
J A
<ARC466 series> <ARC452 series>
<ARC433 series>
(R18416)
ADDRESS
EXIST
1
CUT
2
Jumper
∗ Do not cut the left jumper.
Jumper
ADDRESS
EXIST
1
CUT
2
(R12065)
Jumper
(R6573)
ADDRESS
EXIST
1
CUT
2
