Wired Remote Controller SiBE121123_A
47 Printed Circuit Board Connector Wiring Diagram
2.2 BRC1E51A7

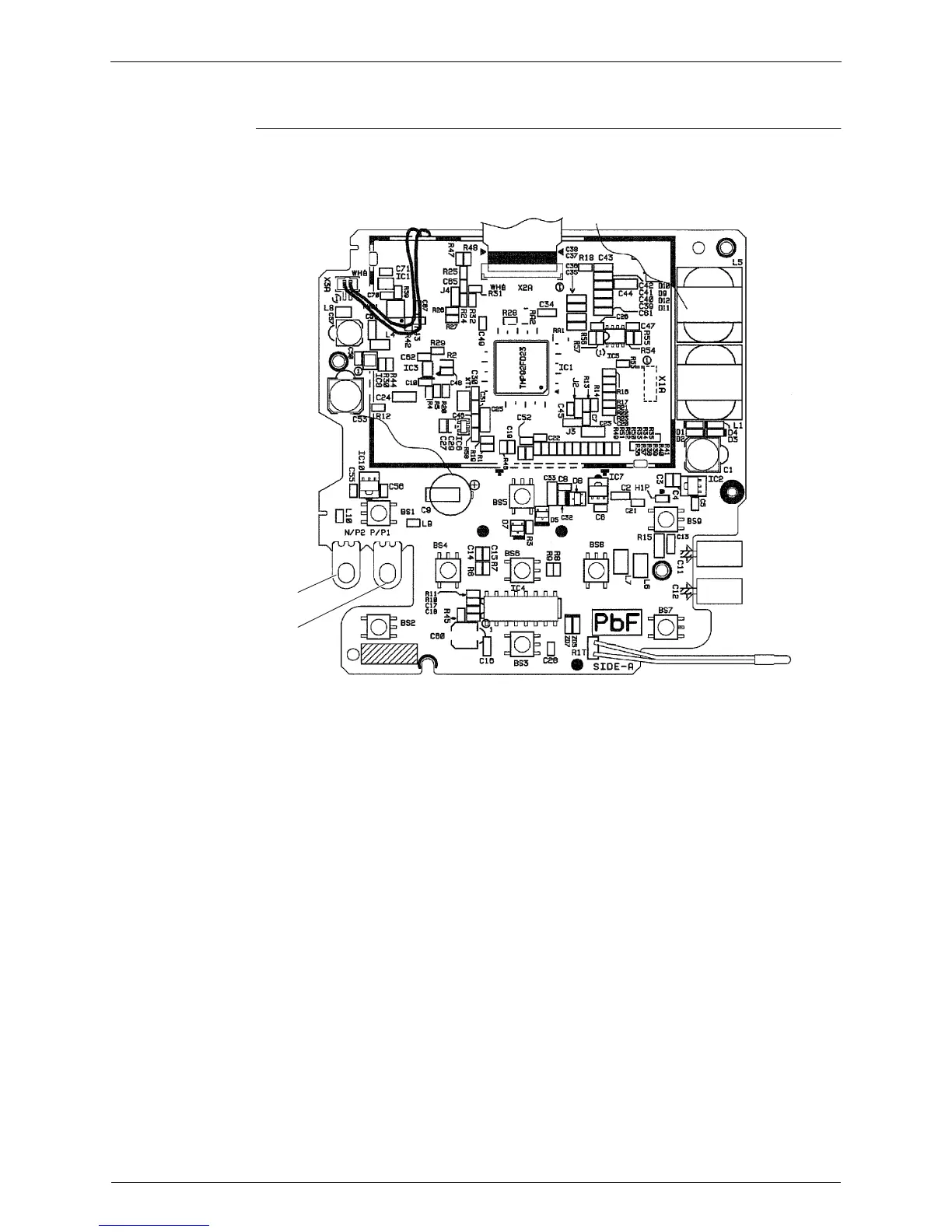

PCB Detail
1) P1, P2 Terminal for indoor unit
2) R1T Room temperature thermistor
P2
R1T
P1
2P243326-1
