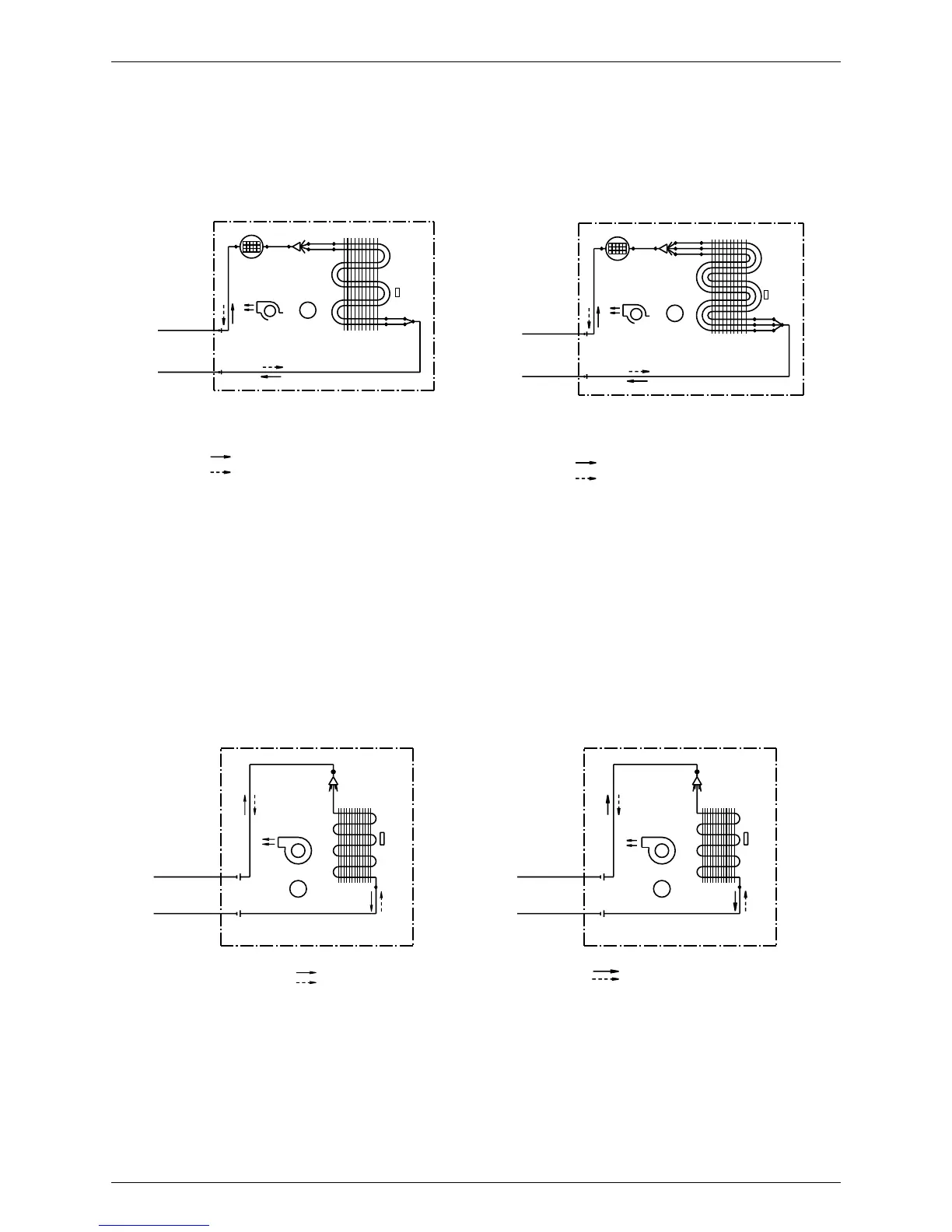

1.1.3 Floor / Ceiling Suspended Dual Type
FVXS25/35FV1B FVXS50FV1B
MUFFLER ASSY
6.4CuT
6.4CuT
TURBO FAN
HEAT EXCHANGER
REFRIGERANT FLOW
6.4CuT
FAN MOTOR
9.5CuT
M
6.4CuT
6.4CuT
7.0CuT
COOLING
HEATING
INDOOR UNIT
FIELD PIPING
(6.4CuT)
FIELD PIPING
(9.5CuT)
THERMISTOR
ON HEAT EXCH.
4D056137B
FAN MOTOR
7.0CuT
TURBO FAN
6.4CuT
6.4CuT
6.4CuT
COOLING
M
6.4CuT
6.4CuT
HEATING
HEAT EXCHANGER
6.4CuT
6.4CuT
9.5CuT
REFRIGERANT FLOW
FIELD PIPING
(6.4CuT)
FIELD PIPING
(12.7CuT)
INDOOR UNIT
MUFFLER ASSY
THERMISTOR
ON HEAT EXCH.
4D056138D
FLXS25/35BAVMB FLXS50BAVMB
INDOOR UNIT
(
6.4CuT
)
SIROCCO FAN
(
9.5CuT
)
FAN MOTOR
M
HEAT EXCHANGER
REFRIGERANT FLOW
COOLING
HEATING
THERMISTOR
ON HEAT
EXCH.
FIELD PIPING
(
6.4CuT
)
FIELD PIPING
(
9.5CuT
)
4D048722B
INDOOR UNIT
(
9.5CuT
)
SIROCCO FAN
(
12.7CuT
)
FAN MOTOR
M
HEAT EXCHANGER
FIELD PIPING
(
6.4CuT
)
FIELD PIPING
(
12.7CuT
)
THERMISTOR
ON HEAT
EXCH.
REFRIGERANT FLOW
COOLING
HEATING
4D048724B
