SiBE121123_A Indoor Unit

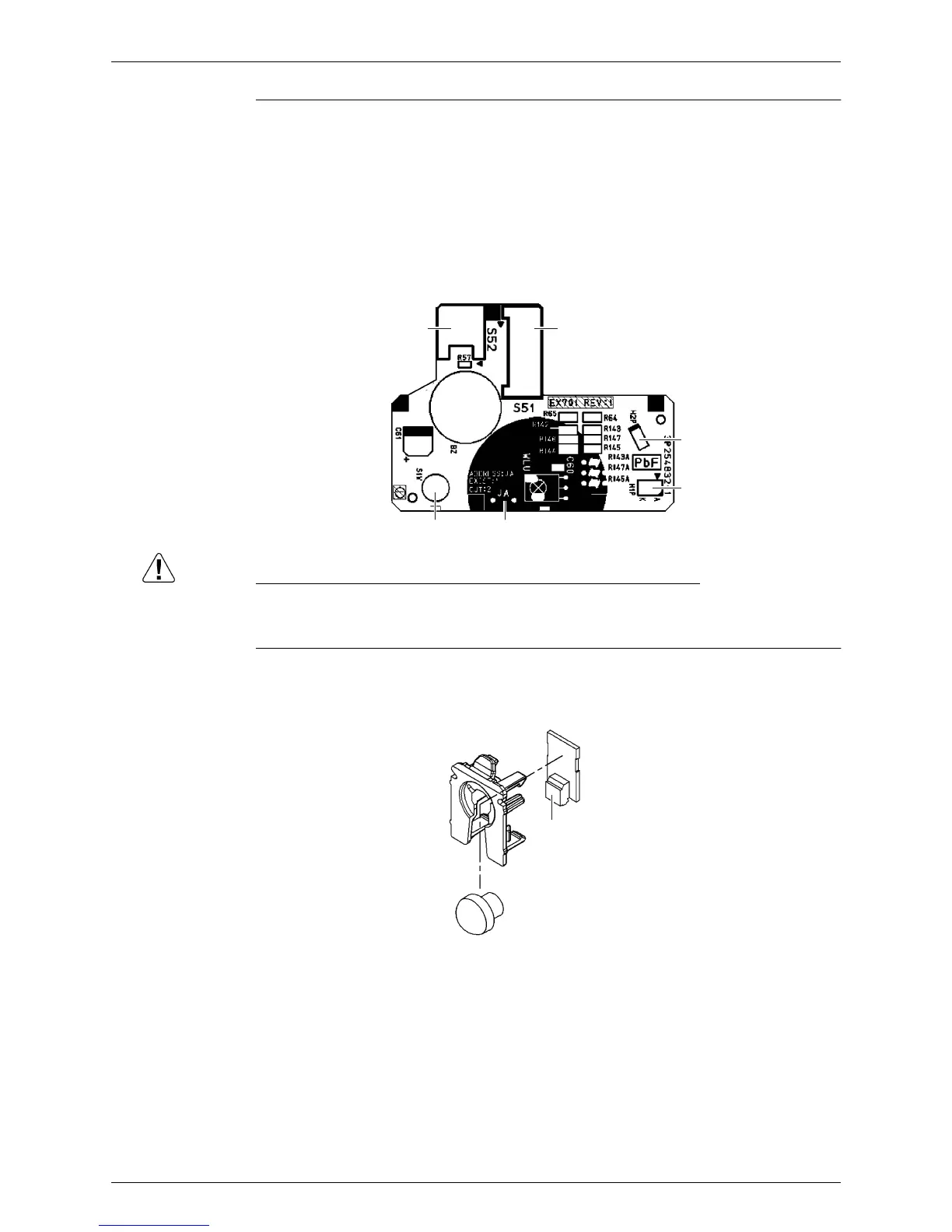

Printed Circuit Board Connector Wiring Diagram 30
Signal Receiver /
Display PCB
Caution Replace the PCB if you accidentally cut the jumpers other than JA.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
INTELLIGENT
EYE Sensor PCB
1) S51 Connector for control PCB
2) S52 Connector for room temperature thermistor
3) S1W Forced operation [ON/OFF] button
4) H1P LED for operation (multi-color)
5) H2P LED for INTELLIGENT EYE (green)
6) JA Address setting jumper
∗ Refer to page 226 for detail.
S52 S51
S1W JA
H2P
H1P
3P254832-1
1) S36 Connector for control PCB
S36
3P255914-1
