SiBE121123_A Indoor Unit

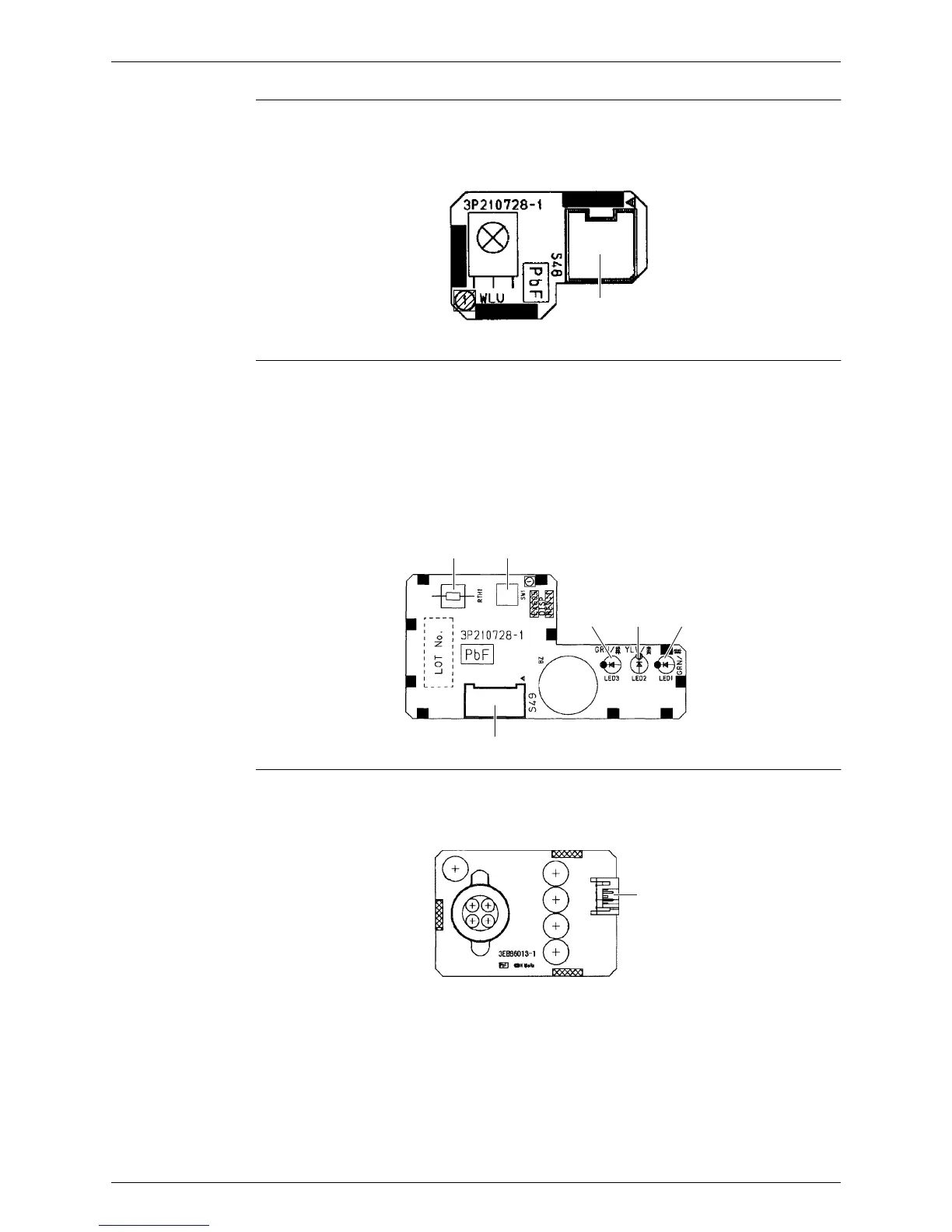

Printed Circuit Board Connector Wiring Diagram 34

Signal Receiver

PCB

Display PCB

INTELLIGENT

EYE Sensor PCB

1) S48 Connector for control PCB

3P210728-1

S48

1) S49 Connector for control PCB

2) SW1 Forced operation [ON/OFF] button

3) LED1 (H1P) LED for operation (green)

4) LED2 (H2P) LED for timer (yellow)

5) LED3 (H3P) LED for INTELLIGENT EYE (green)

6) RTH1 (R1T) Room temperature thermistor

3P210728-1

RTH1

SW1

S49

LED3 LED2 LED1

1) S26 Connector for control PCB

3EB86013-1

S26
