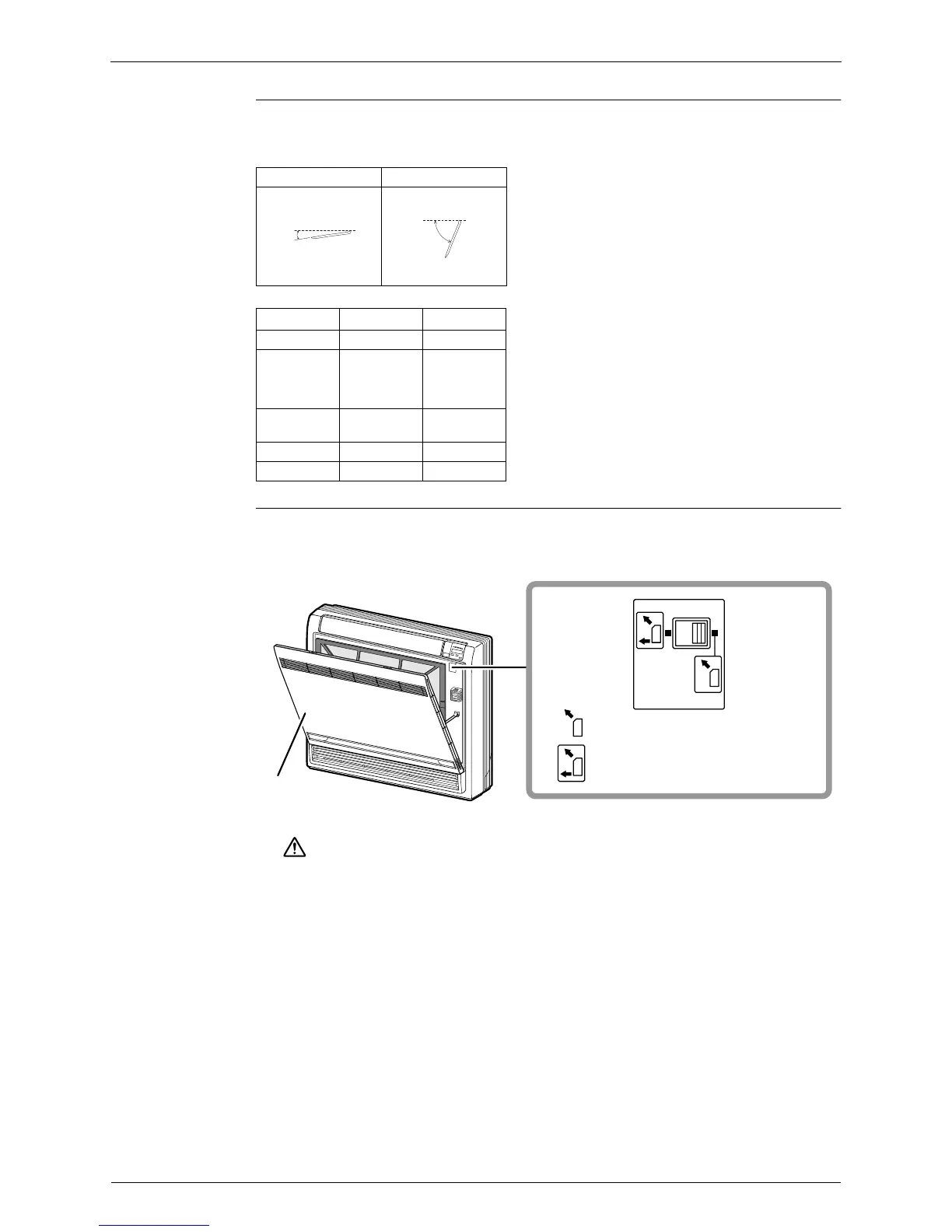

Function of RA Indoor Unit SiBE121123_A
57 Function and Control
COMFORT
AIRFLOW
Operation
Wall Mounted Type
The vertical swing flap is controlled not to blow the air directly on the person in the room.
Airflow Selection
Setting
Floor Standing Type: FVXS Series
Airflow direction can be set with the airflow selection switch.
Open the front panel.
Cooling / Dry Heating
(R18417) (R18418)
AB
FTXG 5° 75°
CTXS
FTXS20/25K
FTX
ATX
0° 50°
FTXS35/42/
50K
5° 70°
FTXS-J 8° 80°
ATXS 5° 80°
A
B
CAUTION
Before opening the front panel, be sure to stop the operation and turn the breaker off.
Do not touch the aluminum fins (indoor heat exchanger) inside of the indoor unit, as it
may result in injury.
Air is blown from the upper outlet only.
Front panel
The blow pattern is automatically decided
depending on mode and conditions.
(Recommended and factory set.)
(R17866)
To Next Page
